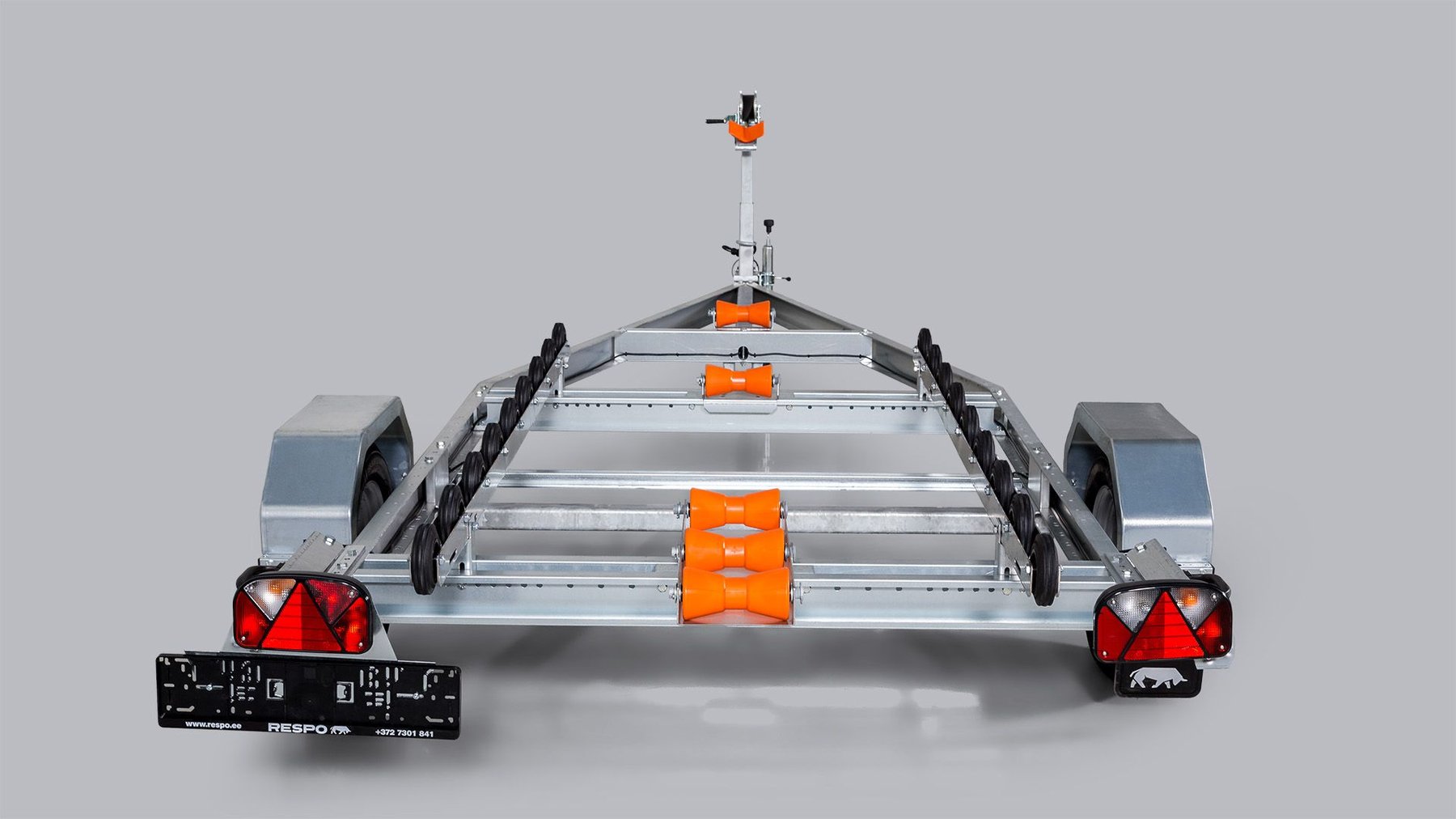

Respo 1000V591L209
Built: 2016 · Series: Other models
More machines from model year 2016
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Respo – other models: the collective page of boat and general-purpose trailers outside the named ranges, the HSS-R range with Long version, 1,000 to 3,500 kg gross weight, up to 10,660 mm length
This page gathers the Respo trailers the register could not assign to a named range – mostly boat and general-purpose trailers. The type designation begins with the gross weight in kilograms (1000 to 3500), followed by a letter-and-digit code for the body and track, and the Long suffix on the HSS-R range denotes versions with an extended wheelbase for larger boats. As category O2 trailers up to 3.5 t gross weight, the heavier versions require an overrun brake; boat and watersports trailers also typically carry a submersible, corrosion-protected lighting system.
Read on 3 more paragraphs
The register lists here 50 versions with unladen weights of 286 to 3,500 kg, gross weights of 1,000 to 3,500 kg, lengths of 4,965 to 10,660 mm and widths of 1,950 to 2,600 mm.
Boat trailers of this class serve the leisure and watersports market for sailing and motor boats up to the medium size range, with lengths of over ten metres for correspondingly large boats at a comparatively low unladen weight. The low share of unladen weight in the gross weight allows a comparatively high payload for engine, fuel tank and boat equipment on many versions.
On a used example, check the rollers and keel supports for wear, the condition of the submersible lights and wiring, corrosion on the axle and wheel bearings from salt and fresh water contact, and the function of the winch and bow support; the galvanising should be checked for damage.
Technical data
Dimensions and weights
| Length | 5,930 mmcorrect |
|---|---|
| Width | 2,090 mmcorrect |
| Wheelbase | 4,840 mmcorrect |
| Unladen weight | 286 kgcorrect |
| Gross vehicle weight | 1,000 kgcorrect |
Drivetrain and chassis
| Wheels | 2correct |
|---|---|
| Top speed | 140 km/hcorrect |
Frequently asked questions
How much does the Respo 1000V591L209 weigh?
The unladen weight is 286 kg.
What is the gross vehicle weight of the Respo 1000V591L209?
1,000 kg.
Up to what speed is the Respo 1000V591L209 approved?
Approved up to 140 km/h.
What are the dimensions of the Respo 1000V591L209?
5,930 mm × 2,090 mm.
When was the Respo 1000V591L209 built?
Production years: 2016.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 9 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
