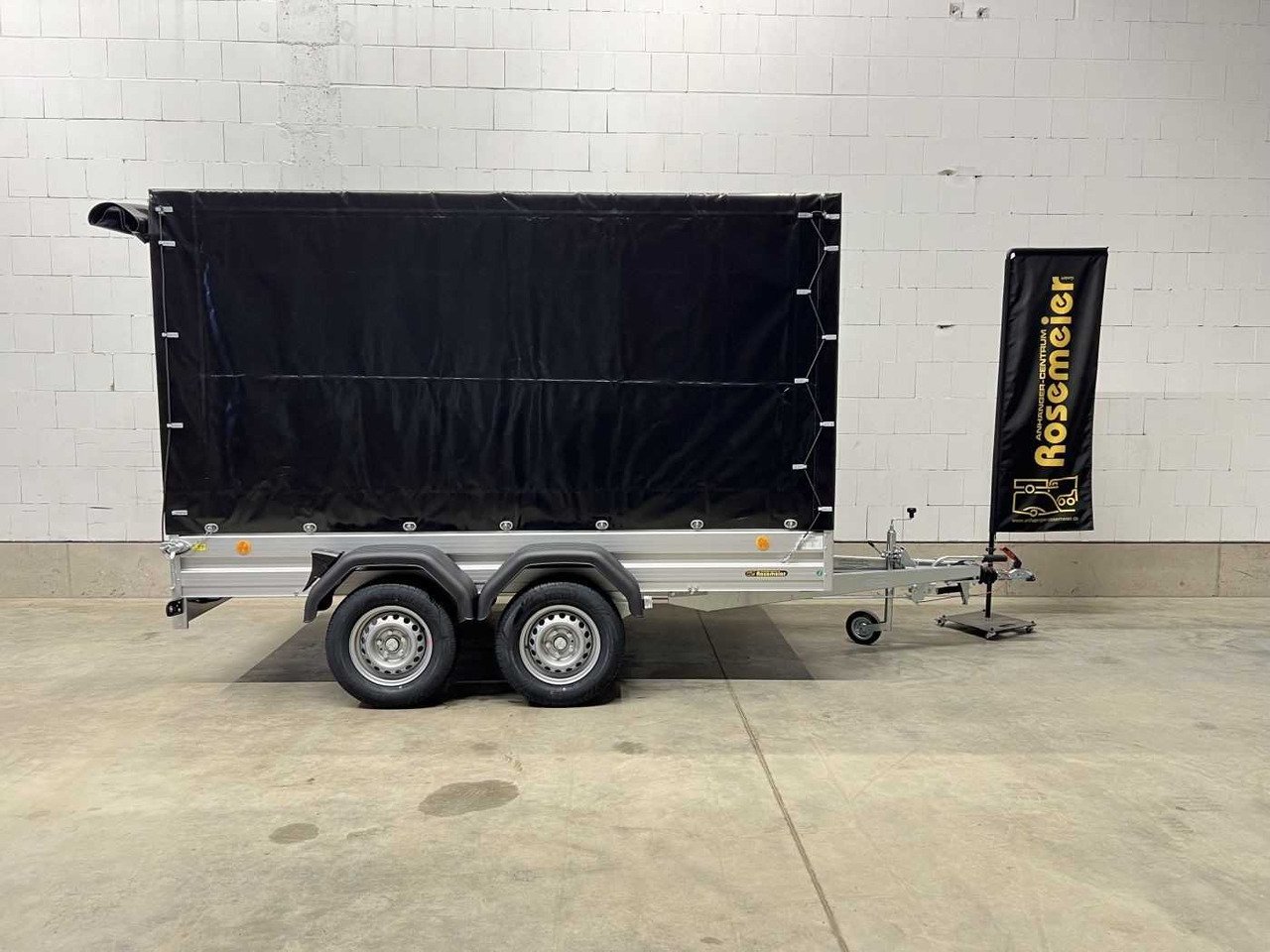

Concept Trailer TBA 2400 XL
Built: 2005–2007 · Series: Other models
More machines from model year 2005
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Concept Trailer – other models: the collective page of tandem trailers outside the named ranges, from the EBA to the TBA series with gross weight classes from 1,000 to 3,500 kg, 280 to 680 kg unladen weight
This page gathers the Concept Trailer trailers the register could not assign to a named range. The model names follow two prefixes, EBA and TBA, each followed by a number matching the gross vehicle weight class in kilograms – EBA 1000 to EBA 1800, TBA 2000 to TBA 3500 – supplemented by size variants with the suffixes XL, XXL and M.
Read on 3 more paragraphs
The register lists here 19 versions with unladen weights from 280 to 680 kg, gross vehicle weights from 1,000 to 3,500 kg and widths from 2,130 to 2,520 mm.
With widths up to 2.52 m at a comparatively low unladen weight, these are wide, light tandem trailers, as used for bulky but not extremely heavy loads – machinery, equipment or small boats; the consistent naming scheme with the weight class in the model name makes it easy for buyers to choose by payload. As the gross vehicle weights are consistently above 750 kg, every model on this page is fitted with an overrun brake.
When buying a used tandem trailer of this width, check the frame and load floor for rust, the condition of the tow eye and jockey wheel, the function of the overrun brake with its cables, even running and bearing play on both axles, and the seal on the lighting. As the XL and XXL variants usually offer an extended load area at the same weight class, it is worth matching the actual dimensions to the registration papers.
Sources: Kennwerte der Modelle Concept Trailer (weitere Modelle)
Technical data
Dimensions and weights
| Width | 2,200 mmcorrect |
|---|---|
| Wheelbase | 720 mmcorrect |
| Unladen weight | 480 kgcorrect |
| Gross vehicle weight | 2,400 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Concept Trailer TBA 2400 XL weigh?
The unladen weight is 480 kg.
What is the gross vehicle weight of the Concept Trailer TBA 2400 XL?
2,400 kg.
Up to what speed is the Concept Trailer TBA 2400 XL approved?
Approved up to 100 km/h.
When was the Concept Trailer TBA 2400 XL built?
Production years: 2005–2007.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 7 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
