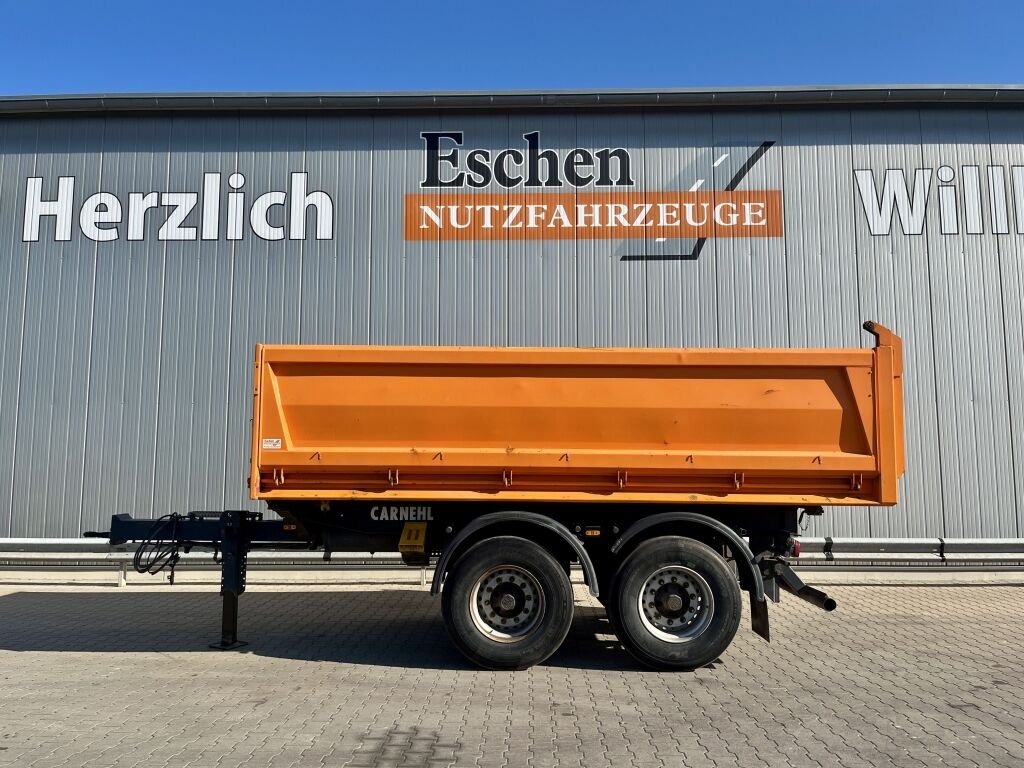

Carnehl KIPER
Built: 2020 · Series: Other models
More machines from model year 2020
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Carnehl – other models: tipper semi-trailers outside the named ranges, from the CHKS/HH and CSKH series to the three-axle sand tipper, 3.8 to 10.7 t unladen weight, 20.5 to 45 t gross vehicle weight
This page gathers the Carnehl trailers the register could not assign to a named range – these are entirely tipper semi-trailers and tipping trailers. Model names such as the three-axle sand tipper, the aluminium-box tipper 24M and the Agrar variant point directly to tipping bodies for bulk goods, sand and agricultural produce; the brand's type codes span CHK, CHKS and CSKH through to CCS and CSA.
Read on 4 more paragraphs
The register lists here 33 versions with unladen weights from 3,800 to 10,700 kg, gross vehicle weights from 20,500 to 45,000 kg, lengths from 7,850 to 14,010 mm and widths from 2,440 to 2,550 mm.
With gross weights from 20.5 to 45 tonnes, these tipper semi-trailers fall into EU trailer category O4 with mandatory air brakes; journeys above 40 tonnes require an exceptional permit in most European countries. The tow vehicle required is a tractor unit with licence category CE.
As tipper semi-trailers for bulk haulage, these vehicles serve earthworks, agriculture, recycling and the transport of sand and gravel; the three-axle version and the aluminium box bodies show the range from standard to lightweight variants for higher payload.
When buying a used tipper semi-trailer, what matters above all is the condition and tightness of the tipping body, the function of the tipping hydraulics, the condition of axles, brakes and tyres, and rust on frame and body; parts such as hydraulic cylinders, seals and tipping fittings are available through Carnehl and independent commercial-vehicle dealers.
Technical data
Dimensions and weights
| Length | 9,720 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 6,650 mmcorrect |
| Unladen weight | 7,220 kgcorrect |
| Gross vehicle weight | 44,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Carnehl CARNEHL KIPER weigh?
The unladen weight is 7,220 kg.
What is the gross vehicle weight of the Carnehl CARNEHL KIPER?
44,000 kg.
Up to what speed is the Carnehl CARNEHL KIPER approved?
Approved up to 100 km/h.
What are the dimensions of the Carnehl CARNEHL KIPER?
9,720 mm × 2,550 mm.
When was the Carnehl CARNEHL KIPER built?
Production years: 2020.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
