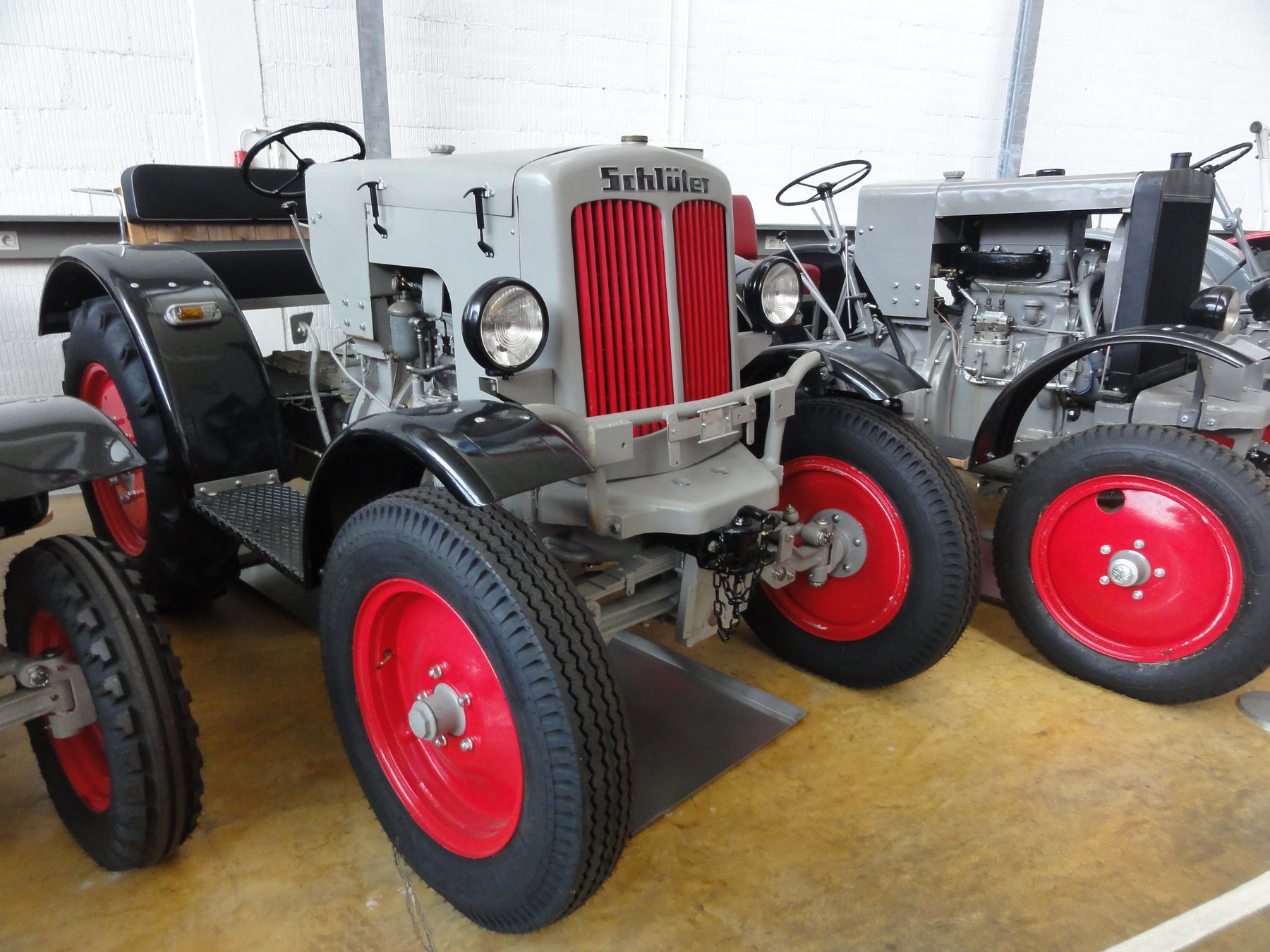

Anton Schlüter Abt Schlepperbau München DSU

Built: 04/1947–07/1948 · Series: DS

More machines from model year 1947

The Anton Schlüter Abt Schlepperbau München DSU is a model in the DS series. Production: 04/1947–07/1948. The engine delivers 25 hp (18 kW), has 2 cylinders, with a displacement of 3,116 cm³. Rated speed is 1,500 rpm. The machine is 3,100 mm long, 1,600 mm wide and 1,650 mm high. The unladen weight is 1,900 kg. The wheelbase measures 1,900 mm. Top speed is 17 km/h. Transmission: 4V/1R. The engine is water-cooled. Tyres: front 6.00-16, rear 9.00-24. The fuel is diesel. Construction: unit construction (no separate frame). Around 215 units were built. Rated output across the Anton Schlüter Abt Schlepperbau München range ranges from 25 to 50 hp; the DSU sits at the bottom of that range with 25 hp. Its immediate neighbours are the GV 50 above it with 50 hp. Rated output across the Anton Schlüter Abt Schlepperbau München range ranges from 18 to 36.8 kW; here the DSU sits at the bottom of that range with 18 kW. 4 Anton Schlüter Abt Schlepperbau München models across 3 series are on record.

Anton Schlüter Abt Schlepperbau München DS – early two-cylinder range: DS 25 and DSU, 18 kW at 1,500 rpm, 3,116 cm³ displacement, unladen weight 1,900 kg, length 3,100 mm

Under the register designation Anton Schlüter Abt Schlepperbau München DS, the register lists the DS 25 and DSU models, two early two-cylinder tractors of the Munich brand from the 1950s, well before the much later, very powerful large tractors for which Schlüter became known from the 1970s onward. Both models share identical engine and dimension figures here.

Read on 4 more paragraphs

The register lists here 2 versions of 18 kW each, from a two-cylinder of 3,116 cm³ at 1,500 revolutions per minute. Unladen weight is 1,900 kg, length 3,100 mm, width 1,600 mm and height 1,650 mm.

Two-cylinder tractors of this power class, around 24 hp, covered the mid-range demand of farming operations in the 1950s that needed more pulling power than a small single-cylinder tractor but could not or did not yet want to run a large four-cylinder farm tractor.

On a used DS 25 or DSU, the condition and compression of the two-cylinder, the tightness of the cooling system and injection pump, the state of the gearbox and steering, and corrosion on the frame and mudguards matter; given the considerable age, a thorough technical inspection before returning it to service is essential.

When it was introduced in the 1950s, a tractor such as the DS 25 belonged to a generation that predated the international standardisation of power take-off speed and three-point linkage geometry, which only became settled in later decades as 540 and 1,000 revolutions per minute and the ISO 730 standard; implements of that period were often matched to the individual maker's own system.

Sources: SpecCodex register, model data: Anton Schlüter Abt Schlepperbau München DS

Technical data

Engine

Fueldieselcorrect
Power25 hp (18 kW)correct
Rated speed1,500 rpmcorrect
Cylinders2correct
Displacement3,116 cm³correct
Coolingwater-cooledcorrect

Dimensions and weights

Length3,100 mmcorrect
Width1,600 mmcorrect
Height1,650 mmcorrect
Wheelbase1,900 mmcorrect
Unladen weight1,900 kgcorrect

Drivetrain and chassis

Driverear-wheel drivecorrect
Gearbox4V/1Rcorrect
Front tyres6.00-16correct
Rear tyres9.00-24correct
Top speed17 km/hcorrect

Origin and approval

Constructionunit construction (no separate frame)correct
Units built215correct

Where this model stands

Power-to-weight ratio: 9.5 kW/t (18 kW / 1.9 t)

Power class: Compact (< 40 hp)

Stronger than 11% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Anton Schlüter Abt Schlepperbau München DSU have?

The Anton Schlüter Abt Schlepperbau München DSU delivers 25 hp.

How much does the Anton Schlüter Abt Schlepperbau München DSU weigh?

The unladen weight is 1,900 kg.

What engine does the Anton Schlüter Abt Schlepperbau München DSU have?

2 cylinders, 3,116 cm³ displacement, Diesel.

How fast does the Anton Schlüter Abt Schlepperbau München DSU go?

Top speed is 17 km/h.

What are the dimensions of the Anton Schlüter Abt Schlepperbau München DSU?

3,100 mm × 1,600 mm × 1,650 mm.

When was the Anton Schlüter Abt Schlepperbau München DSU built?

Production years: 04/1947–07/1948.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
  • Shift the gearbox cold and warm — jumps only show up at temperature.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
