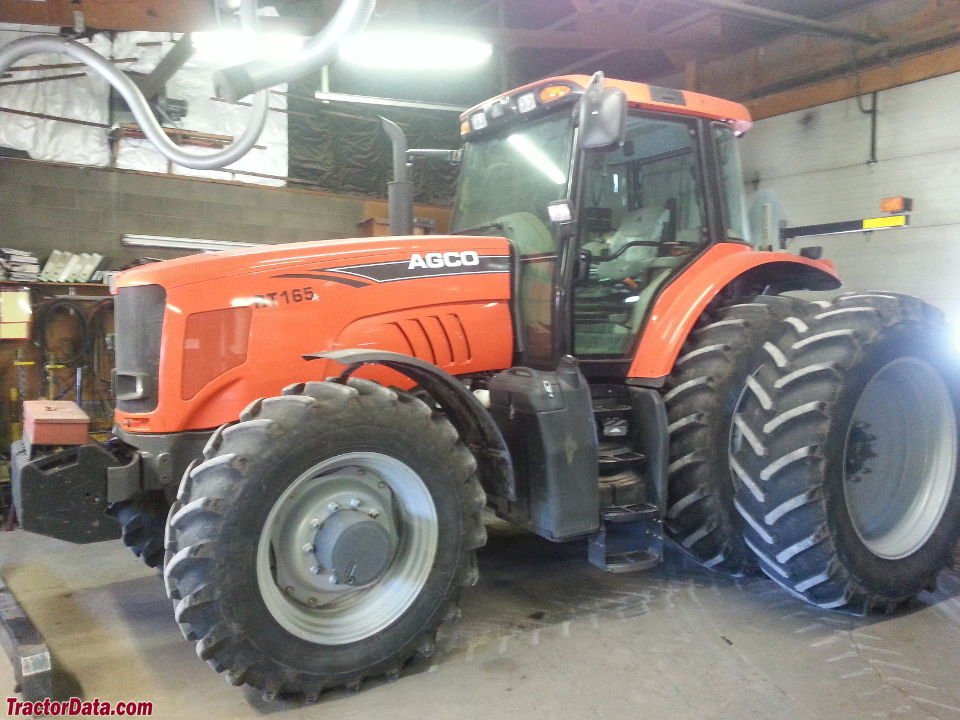

Allis Gleaner Corporation RT-165 A
Built: 2007–2011 · Series: RT/A - Baureihe
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Allis-Chalmers RT-100 A to RT-165 A – heavy US tractors with six-cylinder diesels throughout, 94 to 145 kW, 5,440 to 7,920 kg
The RT-100 A to RT-165 A line covers heavy tractors from the American maker Allis-Chalmers, whose name is recorded in the register as 'Allis Cleaner Corporation'. Allis-Chalmers was founded in 1901 in Milwaukee, Wisconsin, and built farm machinery into the 1980s, before its tractor division passed to Deutz in 1985 and continued as Deutz-Allis, later AGCO-Allis; since the 1990s the brand has belonged to AGCO. The six versions listed here, RT-100 A to RT-165 A, all carry the A designation and differ by an ascending number that tracks the power class.
Read on 3 more paragraphs
The register lists 6 versions rated at 94.1 to 144.9 kW from six-cylinder diesel engines of 6,596 to 7,365 cm³, torque of 555 to 859 Nm at around 2,200 rpm, kerb weights of 5,440 to 7,920 kg, and a length of 4,656 to 5,334 mm, a width of 2,009 to 2,014 mm and a height of 2,951 to 3,099 mm.
With kerb weights from just over five and a half to nearly eight tonnes and six-cylinder diesels throughout, the line ranks among the heavy standard tractors for large arable operations, of the kind used in North America for high drawbar output and wide implements. The narrow numbering span and the consistent six-cylinder layout point to a stepped line built on a shared platform.
On these heavy machines, check engine condition and the injection system, clutch and power-shift transmission, the hydraulic pump and lines, and the frame and front-axle bearings; on machines of this age, also check for corrosion on the wings and cab and the condition of the tyres. Spares for Allis-Chalmers tractors today mostly run through specialist farm-machinery dealers and the AGCO network.
Sources: SpecCodex register, model data: Allis-Chalmers RT/A
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 197 hp (144.9 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 859 Nmcorrect |
| Speed at max. torque | 1,450 rpmcorrect |
| Cylinders | 6correct |
| Displacement | 7,365 cm³correct |
| Bore | 108 mmcorrect |
| Stroke | 134 mmcorrect |
| Compression ratio | 17.5correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 5,334 mmcorrect |
|---|---|
| Width | 2,009 mmcorrect |
| Height | 3,099 mmcorrect |
| Wheelbase | 2,996 mmcorrect |
| Ground clearance | 570 mmcorrect |
| Unladen weight | 7,920 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | 24 V/24 R or continuously variablecorrect |
| Front tyres | 16.9 R 30 AScorrect |
| Rear tyres | 520/85 R 42 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 18.3 kW/t (145 kW / 7.9 t)
Power class: Heavy (> 180 hp)
Stronger than 91% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Allis Gleaner Corporation RT-165 A have?
The Allis Gleaner Corporation RT-165 A delivers 197 hp.
How much does the Allis Gleaner Corporation RT-165 A weigh?
The unladen weight is 7,920 kg.
What engine does the Allis Gleaner Corporation RT-165 A have?
6 cylinders, 7,365 cm³ displacement, Diesel.
How fast does the Allis Gleaner Corporation RT-165 A go?
Top speed is 40 km/h.
What are the dimensions of the Allis Gleaner Corporation RT-165 A?
5,334 mm × 2,009 mm × 3,099 mm.
When was the Allis Gleaner Corporation RT-165 A built?
Production years: 2007–2011.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
