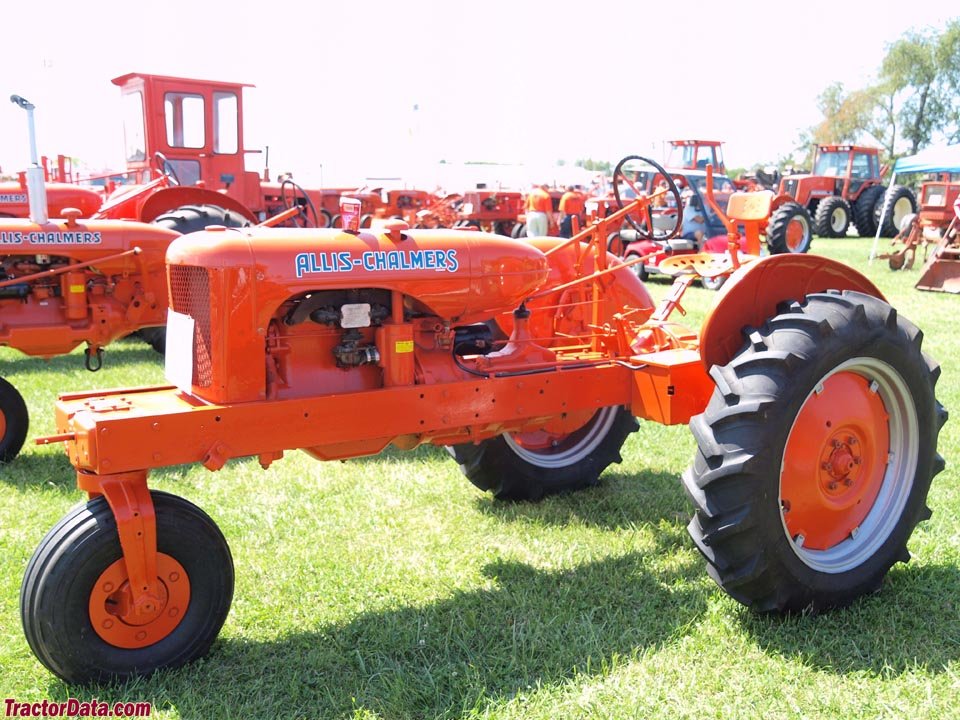

Allis Chalmers RC
Built: 1938-1941 · Series: Other models
The Allis Chalmers RC is a tractor built in 1938-1941. It is powered by a four-cylinder engine producing 11 kW. Rated power is reached at 1,500 rpm.
It runs on petrol; the engine is water-cooled. Within the range, rated power spans from 2 to 863 kW; with 11 kW, the RC sits at the bottom end. Directly alongside are the MODELL-B with 9.6 kW below and the 5015 with 13 kW above.
Technical data
Engine
| Engine make | Allis-Chalmerscorrect |
|---|---|
| Fuel | petrolcorrect |
| Power | 15 hp (11 kW)correct |
| Rated speed | 1,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 125 cu incorrect |
| Bore | 3 3/8 incorrect |
| Stroke | 3 1/2 incorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Unladen weight | 2, 625 (steel); 3, 000 (rubber)correct |
|---|
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Forward gears | 4correct |
| Reverse gears | 1correct |
Working data
| PTO speed | 532correct |
|---|
Origin and approval
| Plant | USAcorrect |
|---|
Frequently asked questions
How much power does the Allis Chalmers RC have?
The Allis Chalmers RC delivers 15 hp.
What engine does the Allis Chalmers RC have?
4 cylinders, gasoline.
When was the Allis Chalmers RC built?
Production years: 1938-1941.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
