Allis Chalmers D12
Built: 1959-1968 · Series: Other models
More machines from model year 1959

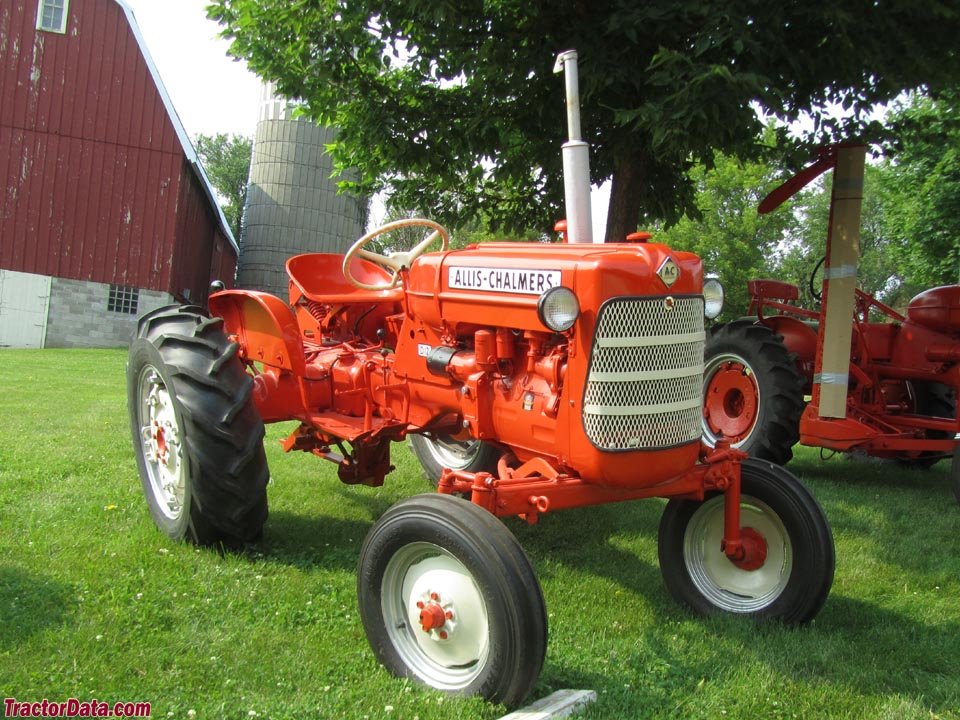

The Allis Chalmers D12 is a tractor built in 1959-1968. The engine produces 22 kW.
It runs on petrol; the engine is water-cooled. It was replaced by the Allis-Chalmers D12 Series II. Within the range, rated power spans from 2 to 863 kW; with 22 kW, the D12 sits in the lower third. Directly alongside are the D-270 Diesel with 21 kW below and the D12 Series III with 25 kW above.
Allis-Chalmers – other models: the collective page of the orange tractors from Milwaukee outside the named ranges, from the 10-18 and 20-35 through the letter models B, C, WC and WD to the 100s (170 to 220), 7000s and 8000s, 2 to 305 hp, petrol, LPG and diesel, Allis-Chalmers, Perkins and Toyosha engines
This page gathers the Allis-Chalmers tractors the register could not assign to a named range – the brand from Milwaukee, Wisconsin, that began in 1914 with the 10-18, was the first maker to introduce pneumatic tyres on a tractor with the Model U in 1932 and created the affordable small tractor for the American family farm with the Model B of 1937, before being sold to Deutz in 1985. The type logic: the early number types 10-18, 12-20 and 20-35 give drawbar and belt power in hp; the letter models A, B, C, CA, WC and WD of the 1930s to 1950s denote model types, not size; the D series (D-10 to D-21) of the 1950s and 1960s orders in ascending order; the 100s (160 to 220) of 1964 to 1975 give roughly the hp class, XT the turbocharger; the 7000s (7010 to 7080) of the 1970s with the Acousta Cab and the 8000s (8010 to 8070) of the 1980s are the last own ranges, the 4W-220 and 4W-305 the articulated tractors, the 5000s and 6000s bought-in compacts from Toyosha and Fiat. The engines are Allis-Chalmers' own as petrol, LPG and diesel versions, Perkins in some diesel models and Toyosha in the Japanese compacts.
Read on 3 more paragraphs
The register lists here 115 versions with 6 to 305 hp from two- to eight-cylinders of 1,002 to 11,973 cm³, widths from 915 to 2,438 mm and heights from 1,191 to 3,531 mm.
From the 1930s to the 1970s Allis-Chalmers was the third big American maker after John Deere and International Harvester; the Persian Orange tractors are collectors' pieces today with their own association, and the brand lived on through Deutz-Allis and AGCO Allis until 2001.
On used tractors, originality, engine condition (carburettor on petrol engines, injection pump on diesels), clutch and transmission (Power Director on the D-17 and the 100s), hydraulics (Traction Booster) and sheet metal count; parts run through collector dealers and AGCO for the late ranges.
Sources: Kennwerte der Modelle Allis-Chalmers (weitere Modelle), (Wikipedia)
Technical data
Engine
| Engine make | Allis-Chalmerscorrect |
|---|---|
| Fuel | petrolcorrect |
| Power | 29 hp (22 kW)correct |
| Rated speed | 1,650 rpmcorrect |
| Cylinders | 4correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,073 mmcorrect |
|---|---|
| Width | 1,651 mmcorrect |
| Height | 1,943 mmcorrect |
| Wheelbase | 2,000 mmcorrect |
Drivetrain and chassis
| Drive | rear-wheel driveWDcorrect |
|---|---|
| Gearbox | 4 V/1 Rcorrect |
| Top speed | 20 km/hcorrect |
Working data
| Fuel tank capacity | 54.6 lcorrect |
|---|
Origin and approval
| Plant | USAcorrect |
|---|
Other data
| Successor | Allis-Chalmers D12 Series IIcorrect |
|---|
Frequently asked questions
How much power does the Allis Chalmers D12 have?
The Allis Chalmers D12 delivers 29 hp.
What engine does the Allis Chalmers D12 have?
4 cylinders, gasoline.
How fast does the Allis Chalmers D12 go?
Top speed is 20 km/h.
What are the dimensions of the Allis Chalmers D12?
3,073 mm × 1,651 mm × 1,943 mm.
When was the Allis Chalmers D12 built?
Production years: 1959-1968.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
