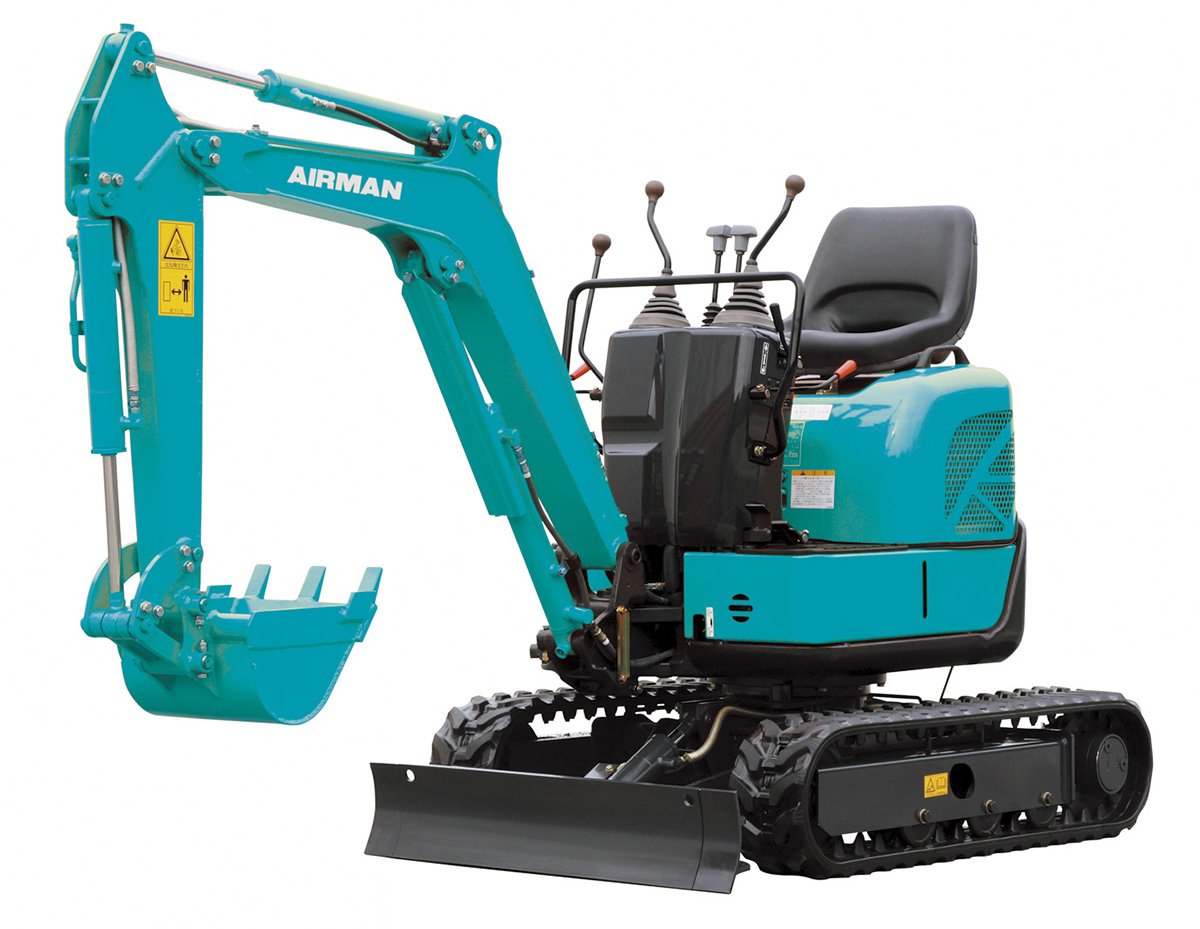

Airman AX17U-4

Series: Airman Mini Excavator

Source: https://www.airman.co.jp/en/product/category-6/series-27/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Airman AX17U-4 is a model in the Airman Mini Excavator series. The engine delivers 15 hp (11 kW), has 3 cylinders, with a displacement of 855.4 cm³. Rated speed is 2,400 rpm. The unladen weight is 1,770 kg. Ground clearance is 167.6 mm. The pump delivers 21.2 l/min. Working pressure is 210 bar. The engine fitted is the 3TNV70. The Airman Mini Excavator series covers 8 models. Rated output within it ranges from 13 to 40.6 hp; the AX17U-4 sits at the bottom of that range with 15 hp. Its immediate neighbours are the AX10U-4 below it with 13 hp and the AX20U above it with 19.1 hp. 24 Airman models across 5 series are on record. The model is listed under Excavators & compaction. 10 verified figures from 1 source are on file.

Technical data

Engine

Engine model3TNV70correct
Power15 hp (11 kW)correct
Rated speed2,400 rpmcorrect
Cylinders3correct
Displacement855.4 cm³correct

Dimensions and weights

Ground clearance167.6correct
Unladen weight1,770 kgcorrect

Working data

Pump flow21.2 l/mincorrect
Hydraulic pressure210 barcorrect

Where this model stands

Power-to-weight ratio: 6.2 kW/t (11 kW / 1.8 t)

Stronger than 11% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Airman AX17U-4 have?

The Airman AX17U-4 delivers 15 hp.

How much does the Airman AX17U-4 weigh?

The unladen weight is 1,770 kg.

What engine does the Airman AX17U-4 have?

3 cylinders, 855 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
