Start › Mini excavators › Airman › AX20U

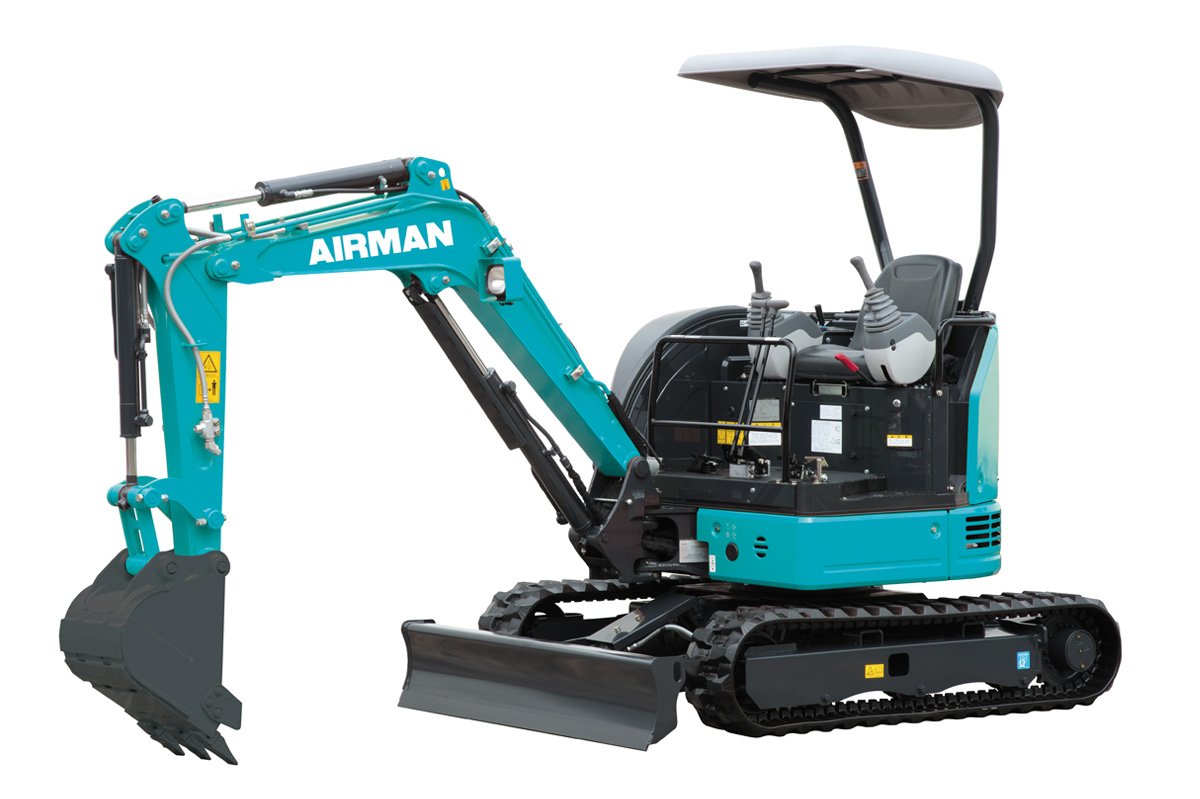

Airman AX20U

Series: Airman Mini Excavator

Source: https://www.airman.co.jp/product/category-6/series-27/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the AX20U, Airman offers a model from the Airman Mini Excavator series. The engine delivers 19.1 hp (14 kW), has 3 cylinders, with a displacement of 3,000.5 cm³. Rated speed is 2,200 rpm. The unladen weight is 1,990 kg. Ground clearance is 295.7 mm. The pump delivers 55.3 l/min. Working pressure is 210 bar. The engine fitted is the 3YE1. The Airman Mini Excavator series covers 8 models. Rated output within it ranges from 13 to 40.6 hp; the AX20U sits in the lower part of that range with 19.1 hp. Its immediate neighbours are the AX17U-4 below it with 15 hp and the AX22U-4 above it with 19.9 hp. 24 Airman models across 5 series are on record. The model is listed under Excavators & compaction. 10 verified figures from 1 source are on file.

Technical data

Engine

Engine model3YE1correct
Power19.1 hp (14 kW)correct
Rated speed2,200 rpmcorrect
Cylinders3correct
Displacement3,000.5 cm³correct

Dimensions and weights

Ground clearance295.7correct
Unladen weight1,990 kgcorrect

Working data

Pump flow55.3 l/mincorrect
Hydraulic pressure210 barcorrect

Where this model stands

Power-to-weight ratio: 7 kW/t (14 kW / 2 t)

Stronger than 30% of the mini excavators in the register — out of 400 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Airman AX20U have?

The Airman AX20U delivers 19.1 hp.

How much does the Airman AX20U weigh?

The unladen weight is 1,990 kg.

What engine does the Airman AX20U have?

3 cylinders, 3,000 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 10 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
