Agrifull 80-56 (DT)

Built: 1980–1986 · Series: Serie-6

More machines from model year 1980

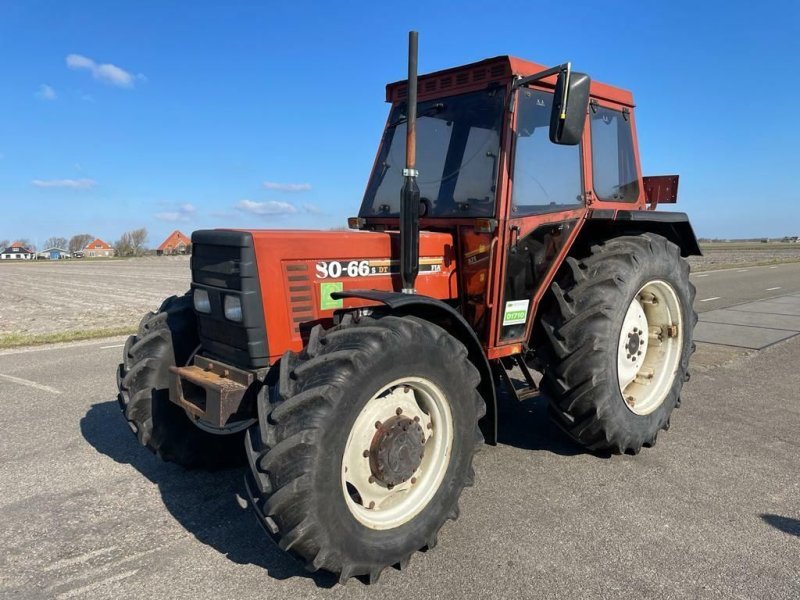

The photo shows the 80-66 (DT) from the same series. Source: https://www.technikboerse.com/gebraucht/traktor-357/fiat-376

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Agrifull 80-56 (DT) belongs to the Serie-6 series. Production: 1980–1986. The engine delivers 58 hp (42.7 kW), has 3 cylinders, with a displacement of 2,827 cm³. Torque is 172 Nm. Rated speed is 2,500 rpm. The machine is 3,298 mm long, 1,930 mm wide and 2,504 mm high. The unladen weight is 2,300 kg. The wheelbase measures 2,175 mm. Ground clearance is 495 mm. Top speed is 25 km/h. Transmission: 12 V/4 R. The engine is water-cooled. Tyres: front 6.00-16 ASF (DT: 11.2-20 AS), rear 14.9-28 AS. The fuel is diesel. The bore measures 100 mm. The stroke is 120 mm. The compression ratio is 18:1. Maximum torque is reached at 1,700 rpm. Construction: frame construction. Injection pressure is 230 bar. The Serie-6 series covers 3 models. Rated output within it ranges from 58 to 78 hp; the 80-56 (DT) sits at the bottom of that range with 58 hp. Its immediate neighbours are the 80-66 (DT) above it with 68 hp. Unladen weight within it ranges from 2,300 to 2,630 kg; here the 80-56 (DT) sits at the bottom of that range with 2,300 kg. 68 Agrifull models across 10 series are on record.

Agrifull Series 6, types 80-56 DT to 80-76 DT – four-wheel-drive tractors from the Fiat group: 42.7 to 54.7 kW, 2,827 to 3,770 cm³ displacement

The Series 6 of the Agrifull brand, part of the Italian Fiat group, covers the mid power class with the types 80-56, 80-66 and 80-76 and three- to four-cylinder diesel engines. As usual on Italian tractors, the suffix DT denotes the four-wheel-drive version (Doppia Trazione). As with other Fiat brands of the era, the Agrifull models shared technical components with equivalent Fiat tractors but were sold under their own brand name.

Read on 3 more paragraphs

The register lists 3 versions with 42.7 to 54.7 kW from three- to four-cylinder diesel engines of 2,827 to 3,770 cm³ displacement at a constant 2,500 rpm, torque of 172 to 208 Nm. Unladen weights range from 2,300 to 2,630 kg, lengths from 3,298 to 3,622 mm, at a width of 1,930 mm and heights of 2,355 to 2,504 mm.

With four-wheel drive and mid-range power, the Series 6 types were aimed at farms with varying soil and slope conditions, a market segment in which Agrifull competed for customers in Italy alongside Fiat and Same. The open or enclosed cab version and the standard PTO extended the range of use to harvest work with towed implements.

When buying used, what counts is the condition and mileage of the diesel engine, clutch and gearbox, the condition of the front axle and four-wheel drive, the tightness of the hydraulics, and corrosion on body panels; parts run through the dealer network of Fiat's successor brands.

Sources: SpecCodex register, model data: Agrifull Serie 6

Technical data

Engine

Fuel	dieselcorrect
Power	58 hp (42.7 kW)correct
Rated speed	2,500 rpmcorrect
Torque	172 Nmcorrect
Speed at max. torque	1,700 rpmcorrect
Cylinders	3correct
Displacement	2,827 cm³correct
Bore	100 mmcorrect
Stroke	120 mmcorrect
Compression ratio	18correct
Injection pressure	230 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	3,298 mmcorrect
Width	1,930 mmcorrect
Height	2,504 mmcorrect
Wheelbase	2,175 mmcorrect
Ground clearance	495 mmcorrect
Unladen weight	2,300 kgcorrect

Drivetrain and chassis

Drive	rear- or four-wheel drivecorrect
Gearbox	12 V/4 Rcorrect
Front tyres	6.00-16 ASF (DT: 11.2-20 AS)correct
Rear tyres	14.9-28 AScorrect
Top speed	25 km/hcorrect

Origin and approval

Construction	frame constructioncorrect

Where this model stands

Power-to-weight ratio: 18.6 kW/t (43 kW / 2.3 t)

Power class: Universal (40–100 hp)

Stronger than 40% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Agrifull 80-56 (DT) have?

The Agrifull 80-56 (DT) delivers 58 hp.

How much does the Agrifull 80-56 (DT) weigh?

The unladen weight is 2,300 kg.

What engine does the Agrifull 80-56 (DT) have?

3 cylinders, 2,827 cm³ displacement, Diesel.

How fast does the Agrifull 80-56 (DT) go?

Top speed is 25 km/h.

What are the dimensions of the Agrifull 80-56 (DT)?

3,298 mm × 1,930 mm × 2,504 mm.

When was the Agrifull 80-56 (DT) built?

Production years: 1980–1986.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
