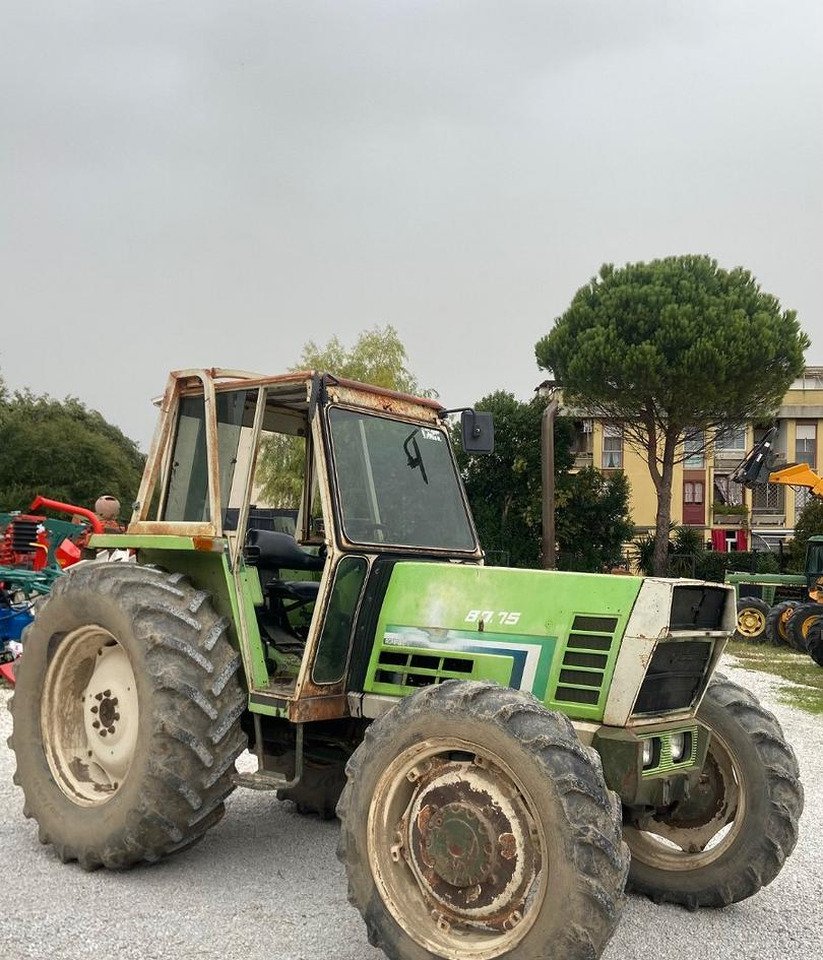

Agrifull 80-75 (DT)
Built: 1980–1986 · Series: 80 er - Baureihe
More machines from model year 1980
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Agrifull 80 series (1980s) – the standard tractors of the Fiat subsidiary from Modena: 80-50 to 80-105, the second number as hp class, DT for four-wheel drive, Turbo as turbocharging
The 80 series was Agrifull's programme of standard tractors – the second Fiat brand from the plant of the former Toselli company in Modena, which in the 1980s ran its own line alongside the Turin Fiat tractors until Fiatagri united everything under one name from 1990. The type logic follows Fiat in reversed order: the first number 80 marks the series, the second the hp class – 80-50 about 50 hp, 80-60 60 hp, 80-75 75 hp, 80-95 about 95 hp with turbocharger, 80-105 about 105 hp with six-cylinder – DT four-wheel drive (doppia trazione). The engines are Fiat's three-, four- and six-cylinders of 2.3 to 5.7 litres at 2,400 to 2,600 rpm, in the big models from the 8000 series from Turin; the register span of 3 to 6 cylinders shows the breadth of the range from smallholding to arable farming.
Read on 3 more paragraphs
The register lists 5 versions with 35.3 to 78.7 kW from three- to six-cylinders of 2,339 to 5,712 cm³, torque from 149 to 172 Nm on the recorded models, unladen weights from 1,790 to 3,940 kg, lengths from 3,500 to 4,160 mm, widths from 1,600 to 2,670 mm and heights from 1,265 to 2,650 mm.
Agrifull standard tractors are in the fleets of Italy, Spain and North Africa and technically related to the Fiat 66 and 80-90 ranges, which secures parts supply through New Holland.
On used tractors, operating hours, clutch and shuttle, four-wheel-drive clutch on DT models, turbocharger on the 80-95, injection pump, hydraulics and sheet metal count; parts run through New Holland and Italian Fiat specialists.
Sources: SpecCodex register, model data: Agrifull 80er-Baureihe, Fiat Trattori (Wikipedia)
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 78 hp (57.4 kW)correct |
| Rated speed | 2,500 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,456 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 110 mmcorrect |
| Injection pressure | 180 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,640 mmcorrect |
|---|---|
| Width | 1,930 mmcorrect |
| Height | 2,600 mmcorrect |
| Wheelbase | 2,350 mmcorrect |
| Ground clearance | 370 mmcorrect |
| Unladen weight | 2,950 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 Rcorrect |
| Front tyres | 7.50-18 ASF (DT: 11.2 R 28 AS)correct |
| Rear tyres | 13.6 R 38 AScorrect |
| Top speed | 25 km/hcorrect |
Origin and approval
| Construction | frame constructioncorrect |
|---|
Where this model stands
Power-to-weight ratio: 19.5 kW/t (57 kW / 3 t)
Power class: Universal (40–100 hp)
Stronger than 54% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Agrifull 80-75 (DT) have?
The Agrifull 80-75 (DT) delivers 78 hp.
How much does the Agrifull 80-75 (DT) weigh?
The unladen weight is 2,950 kg.
What engine does the Agrifull 80-75 (DT) have?
4 cylinders, 3,456 cm³ displacement, Diesel.
How fast does the Agrifull 80-75 (DT) go?
Top speed is 25 km/h.
What are the dimensions of the Agrifull 80-75 (DT)?
3,640 mm × 1,930 mm × 2,600 mm.
When was the Agrifull 80-75 (DT) built?
Production years: 1980–1986.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
