Agrifull 340-C (S)

Built: 1976–1977 · Series: 300 er C - Baureihe

More machines from model year 1976

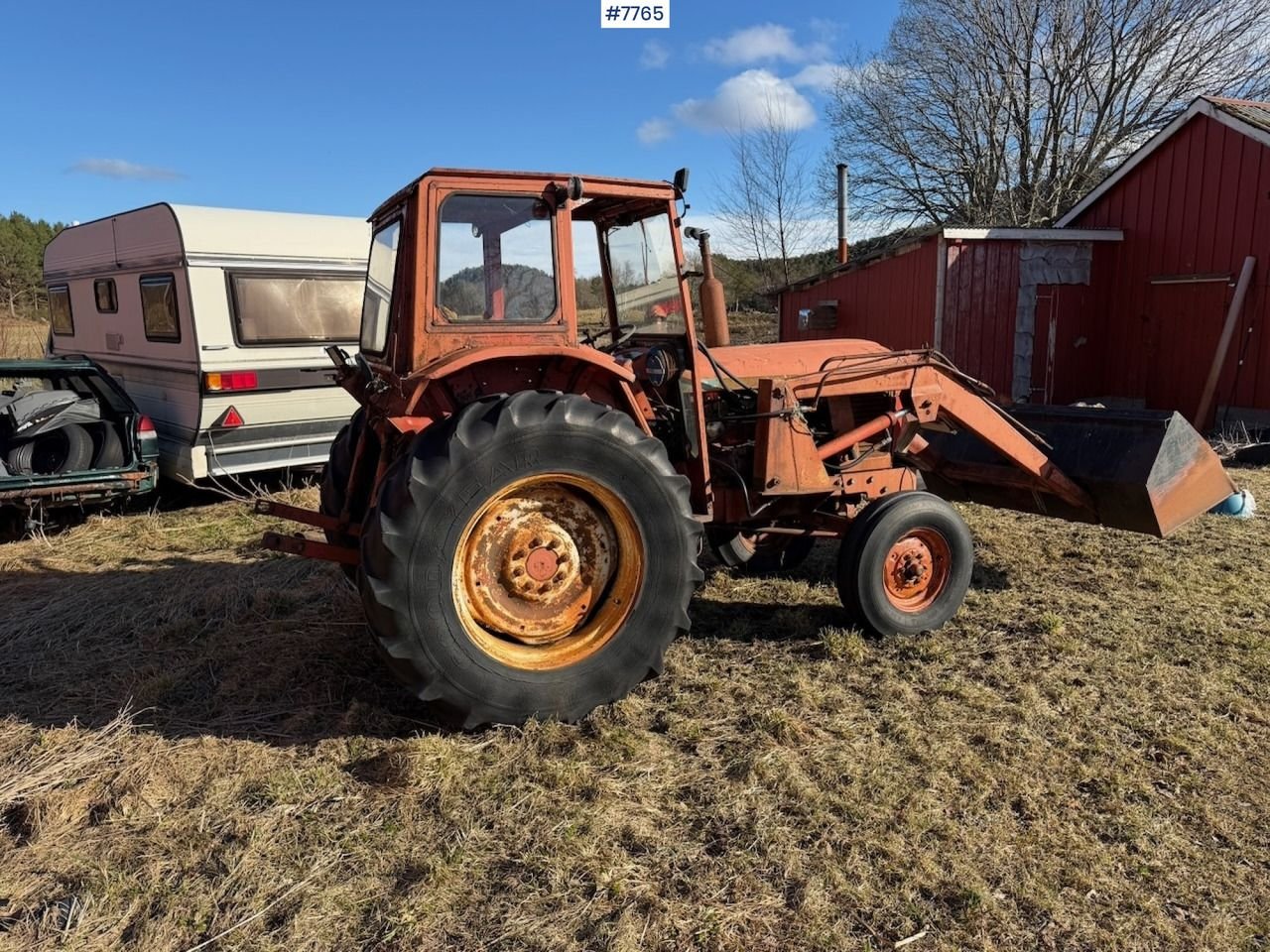

The photo shows the 345-C (S) from the same series. Source: truck1.eu

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Agrifull 340-C (S) is a model in the 300er C series. Production: 1976–1977. The engine delivers 45 hp (33.1 kW), has 3 cylinders, with a displacement of 2,022 cm³. Rated speed is 2,600 rpm. The machine is 2,200 mm long, 1,147 mm wide and 1,090 mm high. The unladen weight is 2,280 kg. The wheelbase measures 1,200 mm. Ground clearance is 280 mm. Top speed is 10 km/h. Transmission: 8 V/2 R. The engine is water-cooled. Tyres: front 280 (S: 200), rear 280 (S: 200). The fuel is diesel. The bore measures 95 mm. The stroke is 95 mm. The compression ratio is 18:1. Construction: frame construction. Injection pressure is 176 bar. The 300 er C - Baureihe series covers 3 models. Rated output within it ranges from 45 to 55 hp; the 340-C (S) sits at the bottom of that range with 45 hp. Its immediate neighbours are the 345-C (S) above it with 47 hp. Unladen weight within it ranges from 2,280 to 2,440 kg; here the 340-C (S) sits at the bottom of that range with 2,280 kg. 68 Agrifull models across 10 series are on record.

Agrifull 300 C series, types 340-C to 350-C – three-cylinder diesels from the Italian Fiat group: 33.1 to 40.5 kW, 2,022 to 2,592 cm³ displacement, 2,280 to 2,440 kg

Agrifull was a tractor brand of the Italian Fiat group; the 300 C series with the types 340-C, 345-C and 350-C formed the compact class with three-cylinder diesel engines. The suffixes S and Compact denote equipment and bodywork variants of the individual types. In Italy the Agrifull brand appeared mainly through the sales channel for the vineyard and orchard market, while the main Fiat brand covered the broader field of arable machinery.

Read on 3 more paragraphs

The register lists 3 versions with 33.1 to 40.5 kW from three-cylinder diesel engines of 2,022 to 2,592 cm³ displacement at 2,300 to 2,600 rpm. Unladen weights range from 2,280 to 2,440 kg, at a length of 2,200 mm, a width of 1,147 mm and heights of 1,085 to 1,090 mm.

The compact dimensions combined with comparatively high engine power made the 300 C series a versatile tractor for row crops such as vineyards and orchards, and for smaller and medium-sized arable farms in Italy, where the Agrifull brand was sold alongside the main Fiat brand. The narrow track width allowed driving through the tight row spacing typical of Italian vineyards and orchards without damaging the crops.

When buying used, what counts is the condition and mileage of the three-cylinder diesel, clutch and gearbox, the condition of the narrow tyres and steering, and corrosion on wings and bonnet; parts now run through the dealer network of Fiat's successor brands.

Sources: SpecCodex register, model data: Agrifull 300er C-Baureihe

Technical data

Engine

Fuel	dieselcorrect
Power	45 hp (33.1 kW)correct
Rated speed	2,600 rpmcorrect
Cylinders	3correct
Displacement	2,022 cm³correct
Bore	95 mmcorrect
Stroke	95 mmcorrect
Compression ratio	18correct
Injection pressure	176 barcorrect
Cooling	water-cooledcorrect

Dimensions and weights

Length	2,200 mmcorrect
Width	1,147 mmcorrect
Height	1,090 mmcorrect
Wheelbase	1,200 mmcorrect
Ground clearance	280 mmcorrect
Unladen weight	2,280 kgcorrect

Drivetrain and chassis

Drive	chain drivecorrect
Gearbox	8 V/2 Rcorrect
Front tyres	280 (S: 200)correct
Rear tyres	280 (S: 200)correct
Top speed	10 km/hcorrect

Origin and approval

Construction	frame constructioncorrect

Where this model stands

Power-to-weight ratio: 14.5 kW/t (33 kW / 2.3 t)

Power class: Universal (40–100 hp)

Stronger than 29% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Agrifull 340-C (S) have?

The Agrifull 340-C (S) delivers 45 hp.

How much does the Agrifull 340-C (S) weigh?

The unladen weight is 2,280 kg.

What engine does the Agrifull 340-C (S) have?

3 cylinders, 2,022 cm³ displacement, Diesel.

How fast does the Agrifull 340-C (S) go?

Top speed is 10 km/h.

What are the dimensions of the Agrifull 340-C (S)?

2,200 mm × 1,147 mm × 1,090 mm.

When was the Agrifull 340-C (S) built?

Production years: 1976–1977.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
