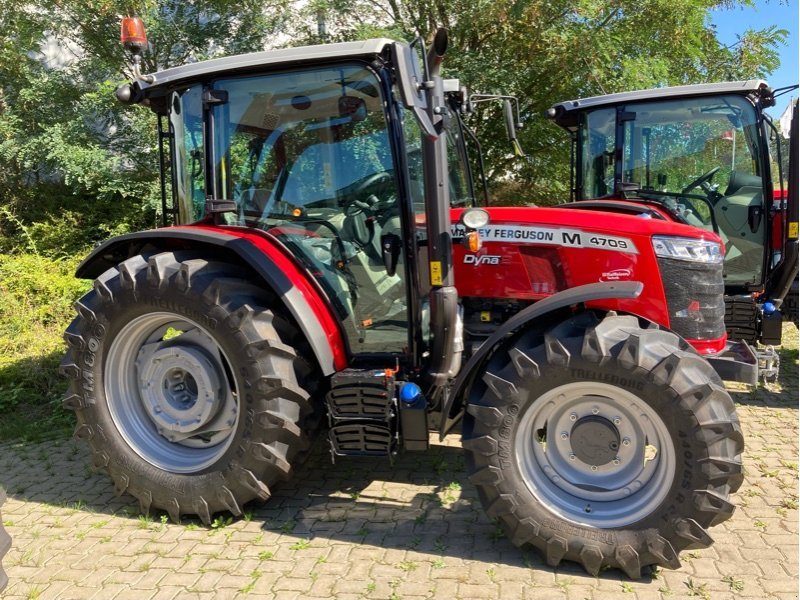

AGCO Massey Ferguson MF 4709
Built: from 2015 · Series: MF 4700 Global Series
More machines from model year 2015
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson MF 4709 (MF 4700 Global Series) – a simply equipped utility tractor for world markets: three-cylinder diesel of 3,300 cm³, 95 hp/70.8 kW, Dyna Synchroshift gearbox, since 2015
The MF 4700 Global Series complements the European Massey Ferguson range with mechanically simpler versions for markets outside Western Europe, keeping the same basic technology but with reduced equipment. Massey Ferguson has belonged to the AGCO group since 1994.
Read on 3 more paragraphs
The MF 4709 is powered by a three-cylinder diesel engine of 3,300 cm³ displacement, delivering 95 hp or 70.8 kW at a rated speed of 2,200 rpm, and runs on diesel, with AdBlue added in the cab version. The Dyna Synchroshift gearbox with 12/12 gears, 420/85 R 34 tyres fitted at the rear, and an unladen weight of 3,900 kg on a 2,250 mm wheelbase give a design top speed of 40 km/h; four-wheel drive is available on the cab version.
The fact that AdBlue is mentioned only for the cab version points to simpler exhaust after-treatment on the cabless platform version, built for markets with lower emissions requirements. At a top speed of 40 km/h the MF 4709 falls into the German T licence class; a three-cylinder of this size delivers the combination of economy and sufficient pulling power typical of a multi-purpose tractor in this class.
When buying a used Global Series machine, it is especially important to establish which exhaust after-treatment is actually fitted, since it differs between the cabless and cab versions, along with the condition of the Synchroshift gearbox and the tread depth of the 420/85 R 34 rear tyres. On four-wheel-drive models the front-axle suspension should also be checked.
Sources: SpecCodex-Register: Kennwerte des Modells Massey Ferguson MF 4709, Massey Ferguson (AGCO, Hersteller)
Technical data
Engine
| Fuel | Diesel und AdBlue bei Kabinenversioncorrect |
|---|---|
| Power | 95 hp (70.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 3,300 cm³correct |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Wheelbase | 2,250 mmcorrect |
|---|---|
| Unladen weight | 3,900 kgcorrect |
Drivetrain and chassis
| Drive | four-wheel drivecorrect |
|---|---|
| Gearbox | Dyna Synchroshift 12/12correct |
| Rear tyres | 420/85 R 34correct |
| Top speed | 40 km/hcorrect |
Where this model stands
Power-to-weight ratio: 18.2 kW/t (71 kW / 3.9 t)
Power class: Universal (40–100 hp)
Stronger than 64% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Massey Ferguson MF 4709 have?
The AGCO Massey Ferguson MF 4709 delivers 95 hp.
How much does the AGCO Massey Ferguson MF 4709 weigh?
The unladen weight is 3,900 kg.
What engine does the AGCO Massey Ferguson MF 4709 have?
3 cylinders, 3,300 cm³ displacement, Diesel und AdBlue bei Kabinenversion.
How fast does the AGCO Massey Ferguson MF 4709 go?
Top speed is 40 km/h.
When was the AGCO Massey Ferguson MF 4709 built?
Production years: 2015–?.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Sources: Wikibooks Traktorenlexikon (CC BY-SA 4.0) (retrieved August 2026) · Values adopted and presented in our own form; changes from the source are possible. · How we check the data
