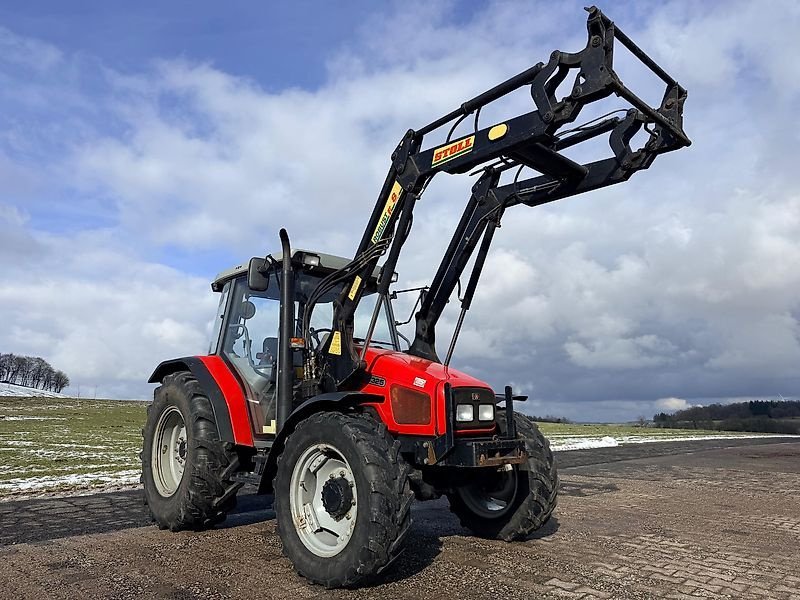

AGCO Massey Ferguson MF 4325 (A)
Built: 2001–2003 · Series: 4300er-Baureihe
More machines from model year 2001
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Massey Ferguson 4300 Series – Utility Tractor, 2001 to 2003, with Three- to Six-Cylinder Engines, 39 to 85.4 kW/53 to 116 hp and Operating Weight from 2,385 to 3,871 kg
The 4300 series was a compact utility tractor at Massey Ferguson with a short, clearly defined production run from 2001 to 2003. According to the register, output of the recorded models ranges from 39 to 85.4 kW, using three- to six-cylinder engines with displacement from 2,700 to 5,987 cm³.
Read on 4 more paragraphs
Recorded operating weight runs from 2,385 to 3,871 kg, wheelbase from 2,130 to 2,610 mm, and top speed of the listed models spans 30 to 40 km/h.
The 4300 series targeted smaller and medium farms needing a compact, versatile tractor. For a used model, the exact engine matters most, as the series spanned a wide range from three-cylinder to six-cylinder models.
With rated outputs from 39 to 85.4 kW, the 4300 series fell within the ISO 730 Category II range for the rear three-point hitch, complemented by a standard dual-speed power take-off at 540 and 1,000 revolutions per minute. Engines of this production period still lacked exhaust gas recirculation, particulate filters or SCR technology with AdBlue, which became standard in later tractor generations of this class.
In everyday farm work the series, fitted with front and rear implements, handled tillage, mowing and transport tasks on smaller and medium farms. Massey Ferguson remains part of the AGCO group today, so spare parts for the engine, gearbox and hydraulics of this series run through the existing AGCO parts network.
Sources: SpecCodex register, model data: Massey Ferguson 4300er-Baureihe, Massey Ferguson
Technical data
Engine
| Fuel | dieselcorrect |
|---|---|
| Power | 67 hp (49.3 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 261 Nmcorrect |
| Speed at max. torque | 1,400 rpmcorrect |
| Cylinders | 4correct |
| Displacement | 3,990 cm³correct |
| Bore | 100 mmcorrect |
| Stroke | 127 mmcorrect |
| Injection pressure | 294 barcorrect |
| Cooling | water-cooledcorrect |
Dimensions and weights
| Length | 3,850 mmcorrect |
|---|---|
| Width | 1,950 mmcorrect |
| Height | 2,450 mmcorrect |
| Wheelbase | 2,350 mmcorrect |
| Ground clearance | 490 mmcorrect |
| Unladen weight | 3,146 kgcorrect |
Drivetrain and chassis
| Drive | rear- or four-wheel drivecorrect |
|---|---|
| Gearbox | 12V/12Rcorrect |
| Front tyres | 10.00-16 ASF (A: 280/85 R 24 AS)correct |
| Rear tyres | 420/85 R 30 AScorrect |
| Top speed | 40 km/hcorrect |
Origin and approval
| Construction | unit construction (no separate frame)correct |
|---|
Where this model stands
Power-to-weight ratio: 15.7 kW/t (49 kW / 3.1 t)
Power class: Universal (40–100 hp)
Stronger than 46% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Massey Ferguson MF 4325 (A) have?
The AGCO Massey Ferguson MF 4325 (A) delivers 67 hp.
How much does the AGCO Massey Ferguson MF 4325 (A) weigh?
The unladen weight is 3,146 kg.
What engine does the AGCO Massey Ferguson MF 4325 (A) have?
4 cylinders, 3,990 cm³ displacement, Diesel.
How fast does the AGCO Massey Ferguson MF 4325 (A) go?
Top speed is 40 km/h.
What are the dimensions of the AGCO Massey Ferguson MF 4325 (A)?
3,850 mm × 1,950 mm × 2,450 mm.
When was the AGCO Massey Ferguson MF 4325 (A) built?
Production years: 2001–2003.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 24 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
