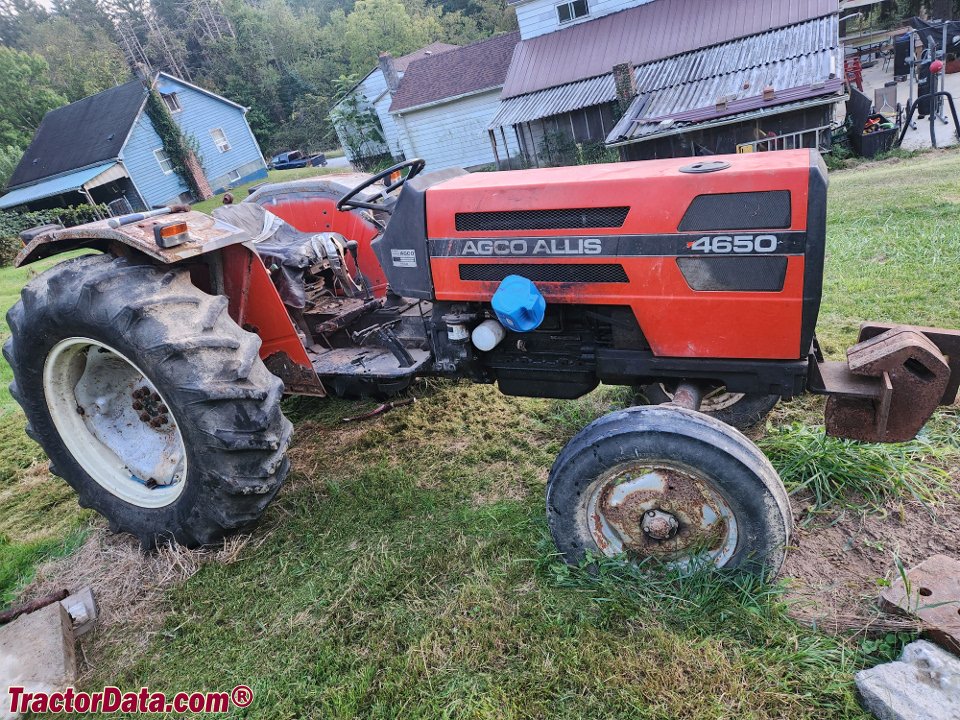

AGCO Allis 4650
Built: 1991–1997 · Series: 4.600 er - Baureihe
More machines from model year 1991
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
AGCO Allis 4600 series – compact utility tractors of the early 1990s: three-cylinder diesel with 36.8 to 44.1 kW/40 to 52 hp, 2,715 to 3,117 cm³ displacement, 2,030 to 2,160 kg unladen weight
AGCO Corporation was formed in 1990 from the North American farm-equipment business previously known as Deutz-Allis, and through the 1990s sold the successor models to the Allis-Chalmers tractors under the AGCO Allis brand. Within that range, the 4600 series formed the compact entry class for smaller and mid-size farms.
Read on 3 more paragraphs
The register lists here 2 versions with 36.8 to 44.1 kW, or 40 to 52 hp, from three-cylinders of 2,715 to 3,117 cm³ displacement, unladen weights from 2,030 to 2,160 kg, a length of 3,625 to 3,650 mm, a width of 1,675 to 1,760 mm, a height of 2,320 to 2,350 mm, and torque of 141 to 195 Nm at 2,200 rpm.
The AGCO Allis brand bridged, in North America and Europe, the time between the end of independent Allis-Chalmers tractor production and AGCO's later move to its present-day brand names; the 4600 series targeted part-time and smaller full-time farms. In 2001 AGCO dropped the AGCO Allis and AGCO White brands in favour of the corporate AGCO brand; the group had already acquired Massey Ferguson in 1994.
On used 4600s, condition of injection pump and clutch, tightness of the gearbox and shuttle, rust on sheet-metal parts and mudguards, and hydraulic function count; parts today run through the AGCO parts trade and dealers specialising in Allis-Chalmers successor models.
Sources: SpecCodex register, model data: AGCO Allis 4600er-Baureihe, AGCO Corporation (manufacturer)
Technical data
Engine
| Engine make | SAMEcorrect |
|---|---|
| Fuel | dieselcorrect |
| Power | 50 hp (36.8 kW)correct |
| Rated speed | 2,200 rpmcorrect |
| Torque | 141 Nmcorrect |
| Speed at max. torque | 1,745 rpmcorrect |
| Cylinders | 3correct |
| Displacement | 2,715 cm³correct |
| Bore | 98 mmcorrect |
| Stroke | 120 mmcorrect |
| Compression ratio | 17.1correct |
| Injection pressure | 220 barcorrect |
| Cooling | air-cooledcorrect |
Dimensions and weights
| Length | 3,625 mmcorrect |
|---|---|
| Width | 1,675 mmcorrect |
| Height | 2,320 mmcorrect |
| Wheelbase | 2,085 mmcorrect |
| Ground clearance | 390 mmcorrect |
| Unladen weight | 2,030 kgcorrect |
Drivetrain and chassis
| Drive | rear- and four-wheel drivecorrect |
|---|---|
| Gearbox | 12 V/3 R or 16 V/4 Rcorrect |
| Front tyres | 6.50-16 ASF (4 WD: 9.5-20 AS)correct |
| Rear tyres | 13.6 R 28 AScorrect |
| Top speed | 30 km/hcorrect |
Origin and approval
| Plant | Italycorrect |
|---|---|
| Construction | unit construction (no separate frame)correct |
Where this model stands
Power-to-weight ratio: 18.1 kW/t (37 kW / 2 t)
Power class: Universal (40–100 hp)
Stronger than 34% of the tractors in the register — out of 15,663 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the AGCO Allis 4650 have?
The AGCO Allis 4650 delivers 50 hp.
How much does the AGCO Allis 4650 weigh?
The unladen weight is 2,030 kg.
What engine does the AGCO Allis 4650 have?
3 cylinders, 2,715 cm³ displacement, Diesel.
How fast does the AGCO Allis 4650 go?
Top speed is 30 km/h.
What are the dimensions of the AGCO Allis 4650?
3,625 mm × 1,675 mm × 2,320 mm.
When was the AGCO Allis 4650 built?
Production years: 1991–1997.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Check front and rear tyre sizes: mismatched pairs strain the drivetrain.
- Shift the gearbox cold and warm — jumps only show up at temperature.
- Load the hydraulics and watch for sag.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
