Aebi TT275

Series: Terratrac

Source: https://www.lectura-specs.com/en/model/municipal-technology/

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Aebi TT275 belongs to the Terratrac series. The engine delivers 101 hp (74 kW), has 4 cylinders, with a displacement of 2,970 cm³. Rated speed is 2,600 rpm. The machine is 4,080 mm long, 2,110 mm wide and 2,145 mm high. The unladen weight is 2,600 kg. Top speed is 40 km/h. The tank holds 90 litres. Transmission: continuously variable. The fuel is diesel. The PTO runs at 550/580/760/1090 rpm. Rated output across the Aebi range ranges from 4.5 to 109 hp; the TT275 sits at the top of that range with 101 hp. Its immediate neighbours are the VT450 Vario below it with 98 hp and the TP420 above it with 109 hp. Rated output across the Aebi range ranges from 7 to 109 hp; here the TT275 sits at the top of that range with 101 hp. 72 Aebi models across 16 series are on record.

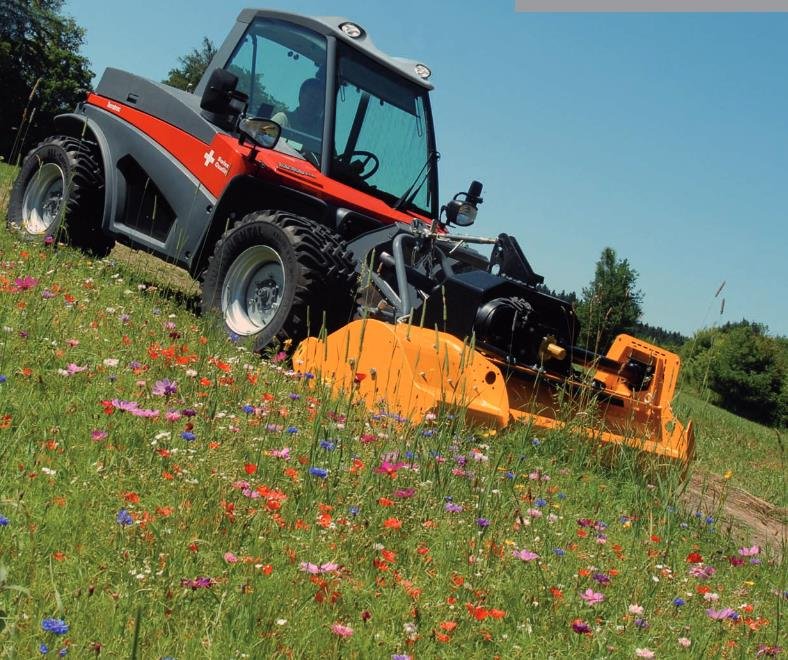

Aebi Terratrac TT275 – a four-wheel slope tractor with a low centre of gravity: four-cylinder diesel of 2,970 cm³, 101 hp/74 kW and 2,600 kg unladen weight

The Terratrac is Aebi's range of four-wheel slope tractors from Burgdorf, distinguished from ordinary arable tractors by a low centre of gravity and four-wheel drive designed for steep terrain. The TT275 belongs to this range and is built for grassland maintenance in hilly and alpine terrain.

Read on 3 more paragraphs

The TT275 is powered by a four-cylinder diesel engine of 2,970 cm³ displacement, delivering 101 hp or 74 kW at a rated speed of 2,600 rpm. At 2,600 kg unladen weight, 4,080 mm length, 2,110 mm width and 2,145 mm height, the machine reaches a design top speed of 40 km/h.

A four-cylinder of nearly 3 litres and 74 kW sits in the upper power segment of slope tractors, designed for grassland management, mowing and transport on steep terrain, where the Terratrac's low centre of gravity offers greater tip resistance than a normal arable tractor. At a top speed of 40 km/h the TT275 falls into the German T licence class, and its comparatively low unladen weight of 2,600 kg further reduces ground pressure on a slope.

When buying a used Terratrac, the condition of the four-wheel drive and the axles matters, since work on steep slopes puts more strain on the drive components than level field work. Brakes, tyres and the mounting of mowers or loading equipment should be carefully checked for wear and play, as should the frame for twisting caused by driving on slopes.

Sources: SpecCodex-Register: Kennwerte des Modells Aebi Terratrac TT275, Aebi (manufacturer)

Technical data

Engine

Fuel	dieselcorrect
Power	101 hp (74 kW)correct
Rated speed	2,600 rpmcorrect
Cylinders	4correct
Displacement	2,970 cm³correct

Dimensions and weights

Length	4,080 mmcorrect
Width	2,110 mmcorrect
Height	2,145 mmcorrect
Unladen weight	2,600 kgcorrect

Drivetrain and chassis

Drive	four-wheel drivecorrect
Gearbox	continuously variablecorrect
Top speed	40 km/hcorrect

Working data

Fuel tank capacity	90 lcorrect

Other data

PTO speed	550/580/760/1090 rpmcorrect

Where this model stands

Power-to-weight ratio: 28.5 kW/t (74 kW / 2.6 t)

Power class: Large (100–180 hp)

Stronger than 66% of the tractors in the register — out of 15,663 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Aebi TT275 have?

The Aebi TT275 delivers 101 hp.

How much does the Aebi TT275 weigh?

The unladen weight is 2,600 kg.

What engine does the Aebi TT275 have?

4 cylinders, 2,970 cm³ displacement, Diesel.

How fast does the Aebi TT275 go?

Top speed is 40 km/h.

What are the dimensions of the Aebi TT275?

4,080 mm × 2,110 mm × 2,145 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Check the weights in the papers against the figures here — attachments change them.
Shift the gearbox cold and warm — jumps only show up at temperature.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
