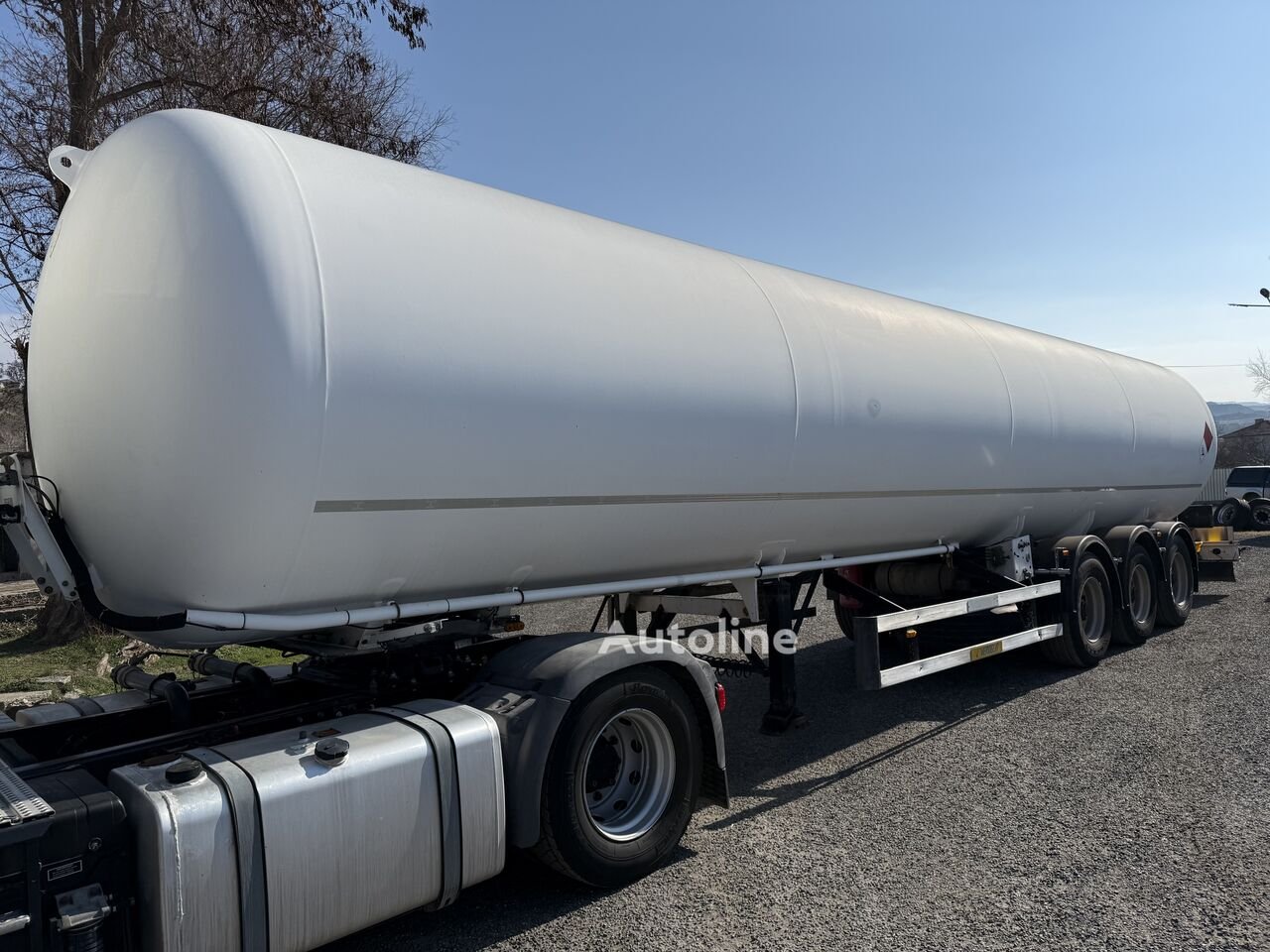

Acerbi Veicoli Ind 20G545P
Built: 1994 · Series: Other models
More machines from model year 1994
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Acerbi Veicoli Ind 20G545P – heavy EU category O4 trailer built in 1994: 36,800 kg gross weight, 11,550 kg unladen weight, 13,100 mm length, 2,440 mm width, six wheels
With a gross weight of 36,800 kg, the 20G545P falls into EU trailer category O4, the group of heavy trailers and semi-trailers above 10 tonnes.
Read on 3 more paragraphs
Unladen weight stands at 11,550 kg, unusually high for a semi-trailer of this weight class; payload accordingly comes to 25,250 kg rather than the higher share typical of lighter semi-trailers. Such a high unladen weight at a length of 13,100 mm, a width of 2,440 mm and six wheels points to a reinforced frame and body, needed for a tipping or particularly heavily loaded deck, rather than a light curtainsider.
Trailers of this weight class are fitted exclusively with air brakes. The tow vehicle would be a tractor unit requiring licence category CE; commercial use additionally involves the driver-qualification rules for the driver.
On a semi-trailer built in 1994, what counts is the condition of the axles, brake system and linings, the tightness of the air lines, and rust at the frame, kingpin and landing gear – with such a heavy unladen weight, especially at the load-bearing longitudinal members. Where a tipping function is fitted, the hydraulics and the bearings of the tipping frame should also be checked. On the hydraulic hoses of any tipping mechanism, it is also worth checking for age cracking and leaks. It is also worth inspecting the kingpin for ovalisation, which occurs sooner on a semi-trailer with such a heavy unladen weight.
Sources: SpecCodex-Register: Kennwerte des Modells Acerbi Veicoli Ind 20G545P
Technical data
Dimensions and weights
| Length | 13,100 mmcorrect |
|---|---|
| Width | 2,440 mmcorrect |
| Wheelbase | 9,000 mmcorrect |
| Unladen weight | 11,550 kgcorrect |
| Gross vehicle weight | 36,800 kgcorrect |
Drivetrain and chassis
| Wheels | 6correct |
|---|---|
| Top speed | 100 km/hcorrect |
Frequently asked questions
How much does the Acerbi Veicoli Ind 20G545P weigh?
The unladen weight is 11,550 kg.
What is the gross vehicle weight of the Acerbi Veicoli Ind 20G545P?
36,800 kg.
Up to what speed is the Acerbi Veicoli Ind 20G545P approved?
Approved up to 100 km/h.
What are the dimensions of the Acerbi Veicoli Ind 20G545P?
13,100 mm × 2,440 mm.
When was the Acerbi Veicoli Ind 20G545P built?
Production years: 1994.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
