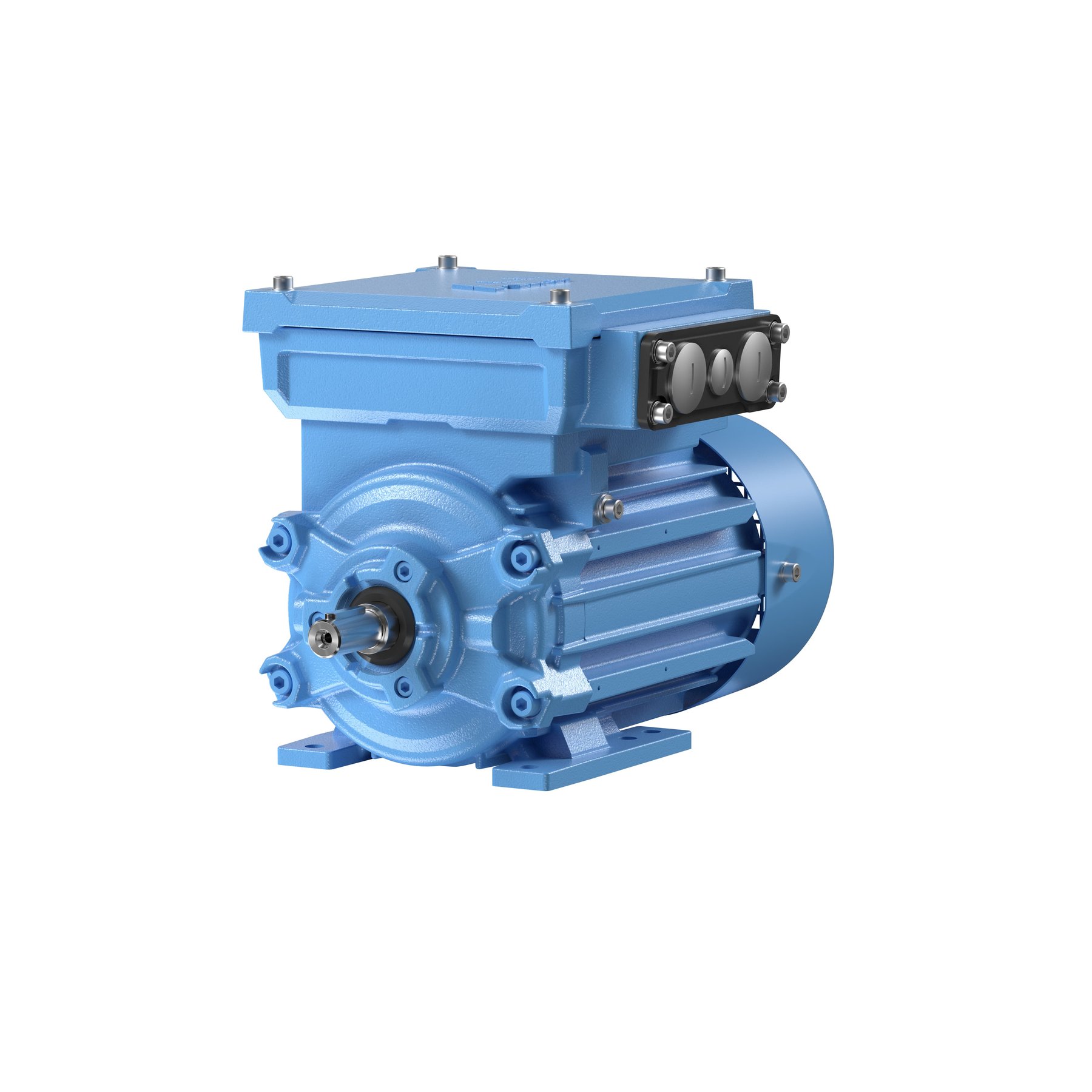

ABB M3KP 225SMD 4 – specifications
Series: M3KP
The ABB M3KP 225SMD 4 comes from the M3KP series. The rated output is 55 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 225. The protection class is IP55, IP56, IP65 and IP66. The efficiency is 94.3 per cent at full load, 94.3 per cent at 75 per cent load and 93.7 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B8, B35, V1, V3, V5 and V6. Stated countries of manufacture: Poland and Finland. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to IEC 60034-2-1 (Edition 2.0). The M3KP series covers 202 models. Rated output within it ranges from 0.75 to 184.99 kW; the M3KP 225SMD 4 sits in the lower part of that range with 55 kW. Its immediate neighbours are the M3KP 280SMB 8G below it with 45 kW and the M3KP 280 SMB 2 above it with 75 kW. 2141 ABB models across 12 series are on record.
Build year not documented · Data origin: Official register · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
ABB M3KP – flameproof motors with an Ex e terminal box (Ex de): the difference from the M3JP, frame sizes 80 to 355, 0.75 to 185 kW
M3KP is the twin of the flameproof M3JP with one decisive difference: the terminal box is not flameproof but built in the 'increased safety' protection type (Ex e, today Ex eb). The combination is called Ex de – flameproof motor enclosure, increased-safety connection space. That makes installation much easier, because the cable entry no longer has to pass through flameproof glands, and it is the more common execution for zone 1 in Europe. The letter K in the type code stands for exactly this design at ABB.
Read on 3 more paragraphs
Otherwise the type code reads like all process motors: IEC frame size, frame length, number of poles, winding variant. The register lists 202 versions from frame size 80 to 355 with 0.75 to 185 kW, two- to eight-pole; full-load efficiencies run from 75.3 to 97.2 %, protection from IP55 to IP66, rated voltages are recorded as 415 to 690 V. Manufacturing locations per registration: mainly India, Poland, China and Finland.
That M3JP and M3KP coincide in output, frame size and efficiency is no accident: motor and winding are identical, only the connection space differs. The choice follows plant practice – Ex de is easier to wire, Ex d more compact.
When replacing, protection type, gas group, temperature class and certificate must match the installation; the Ex e terminals require approved cable entries, and inverter duty is permitted only with explicit certification.
Sources: SpecCodex register, model data: ABB M3KP (MEPS-Registrierungen), ABB Produktinformation Flameproof IE3 motors M3JP/M3KP 80–132, ATEX-Motoren M3GP, M3KP, M3JP (Übersicht)
Technical data
Engine
| Rated output | 55 kWcorrect |
|---|
Electrical data
| Rated voltage | 400/415/690 Vcorrect |
|---|---|
| Number of poles | 4correct |
| Protection class | IP55, IP56, IP65, IP66correct |
| Frame size | 225correct |
| Mounting (IEC 60034-7) | B3, B5, B8, B35, V1, V3, V5, V6correct |
| Efficiency at full load | 94.3 %correct |
| Efficiency at 75 % load | 94.3 %correct |
| Efficiency at half load | 93.7 %correct |
Origin and approval
| Country of manufacture | Poland, Finlandcorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
