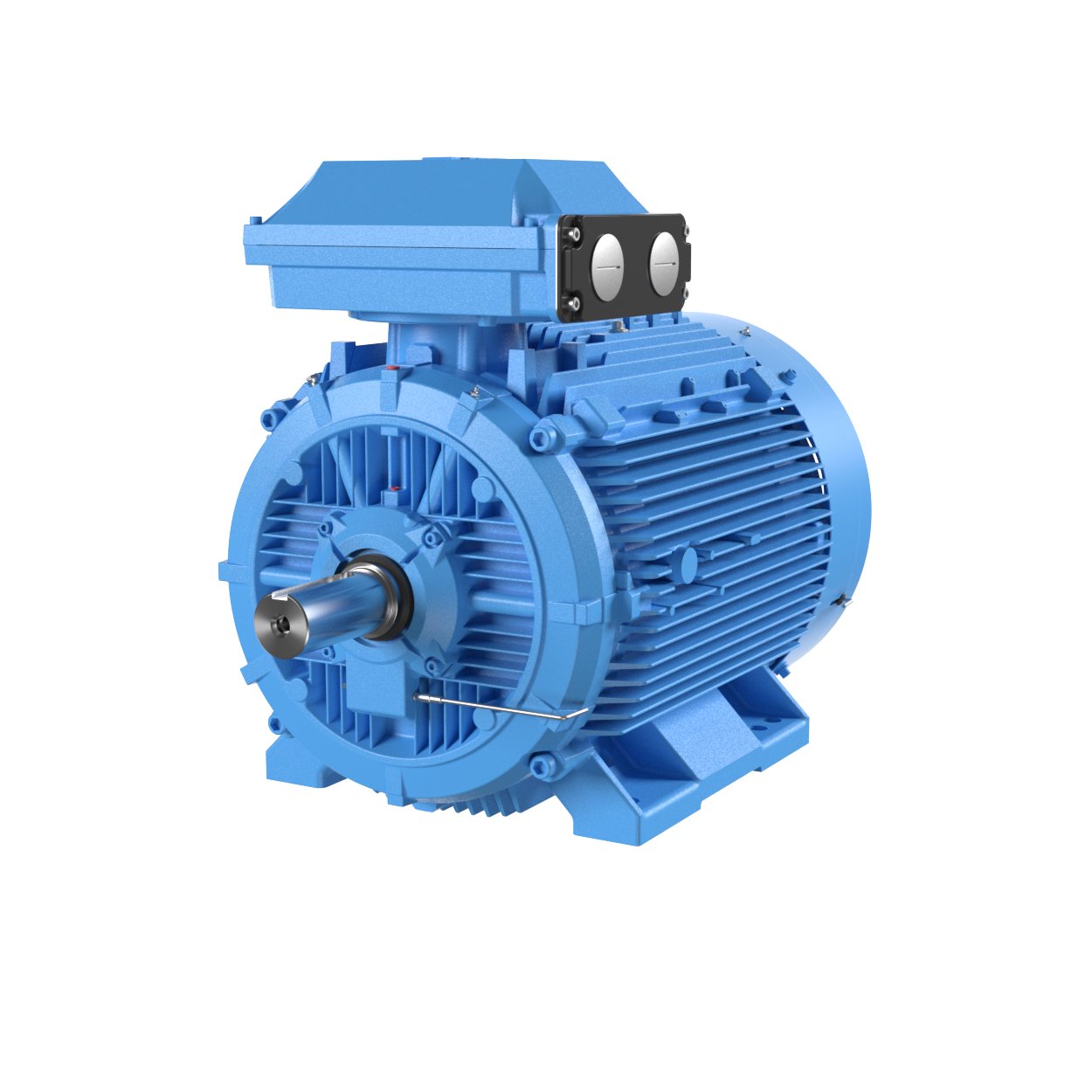

ABB M3GP 315MLB 6 – specifications
Series: M3GP
The ABB M3GP 315MLB 6 is a three-phase induction motor from the M3GP series. The rated output is 132 kW. The motor is six-pole, which at 50 Hz gives a synchronous speed of 1,000 rpm. The housing is frame size 315. The protection class is IP55, IP56, IP65 and IP66. The efficiency is 95.7 per cent at full load, 95.8 per cent at 75 per cent load and 95.5 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B8, B35, V1, V3, V5 and V6. Stated countries of manufacture: India, China, Poland and Finland. The figures come from the Australian MEPS register under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). The M3GP series covers 262 models. Rated output within it ranges from 0.75 to 184.99 kW; the M3GP 315MLB 6 sits in the upper part of that range with 132 kW. Its immediate neighbours are the M3GP/M4GP315SMC4 below it with 110 kW and the M3GP 315SMD 2 above it with 150 kW. 2141 ABB models across 12 series are on record.
Build year not documented · Data origin: Official register · sources
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
ABB M3GP – non-sparking cast-iron motors for zones 2 and 22 (Ex nA/Ex ec, Ex t): frame sizes 80 to 355, 0.75 to 185 kW, IP55 to IP66
M3GP is the Ex version of ABB's cast-iron motor for hazardous areas where a gas atmosphere is unlikely: zone 2 (gas) and zone 22 (dust). The protection type is called 'non-sparking' in the standard – formerly Ex nA, since IEC 60079-7:2015 Ex ec – or Ex t for protection by enclosure against combustible dust. Unlike the flameproof M3JP, an ignition is not contained but prevented by design: no sparks or hot surfaces arise in normal operation. That makes the M3GP the standard for refineries, tank farms, chemical plants and mills outside zone 1.
Read on 3 more paragraphs
The type code follows the series pattern: M3 for motor and generation, G for the cast-iron frame in Ex execution, P for process performance, then frame size, frame length and number of poles. The register holds 262 versions from frame size 80 to 355 with 0.75 to 185 kW, two- to eight-pole; full-load efficiencies run from 74.1 to 97.2 %, protection from IP55 to IP66. Rated voltages of 415 to 690 V are recorded – most registrations name Finland and Poland as manufacturing locations.
The technical data match the M3BP because the Ex version is built on the same active part; in addition, temperature class (usually T3), gas group (IIA to IIC) and the type-examination certificate under ATEX or IECEx are stated on the rating plate.
When replacing: protection type, zone and temperature class must match the installation, inverter duty needs an explicit approval, and repairs may only be carried out by certified Ex workshops.
Sources: SpecCodex register, model data: ABB M3GP, ABB
Technical data
Engine
| Rated output | 132 kWcorrect |
|---|
Electrical data
| Rated voltage | 230/400/415/690/500 Vcorrect |
|---|---|
| Number of poles | 6correct |
| Protection class | IP55, IP56, IP65, IP66correct |
| Frame size | 315correct |
| Mounting (IEC 60034-7) | B3, B5, B8, B35, V1, V3, V5, V6correct |
| Efficiency at full load | 95.7 %correct |
| Efficiency at 75 % load | 95.8 %correct |
| Efficiency at half load | 95.5 %correct |
Origin and approval
| Country of manufacture | India, China, Poland, Finlandcorrect |
|---|
Other data
| Standard applied | Greenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct |
|---|---|
| Test method | IEC 60034-2-1 (Edition 2.0)correct |
Frequently asked questions
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- Check the ingress rating against the installation site — outdoors or in dust the demands differ.
- Hold the mounting form and dimensions against the existing seat before ordering.
- The pole count sets the speed — when replacing an older unit, compare this first.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
