ABB M2BAX 160 MLB 4

Series: M2BAX

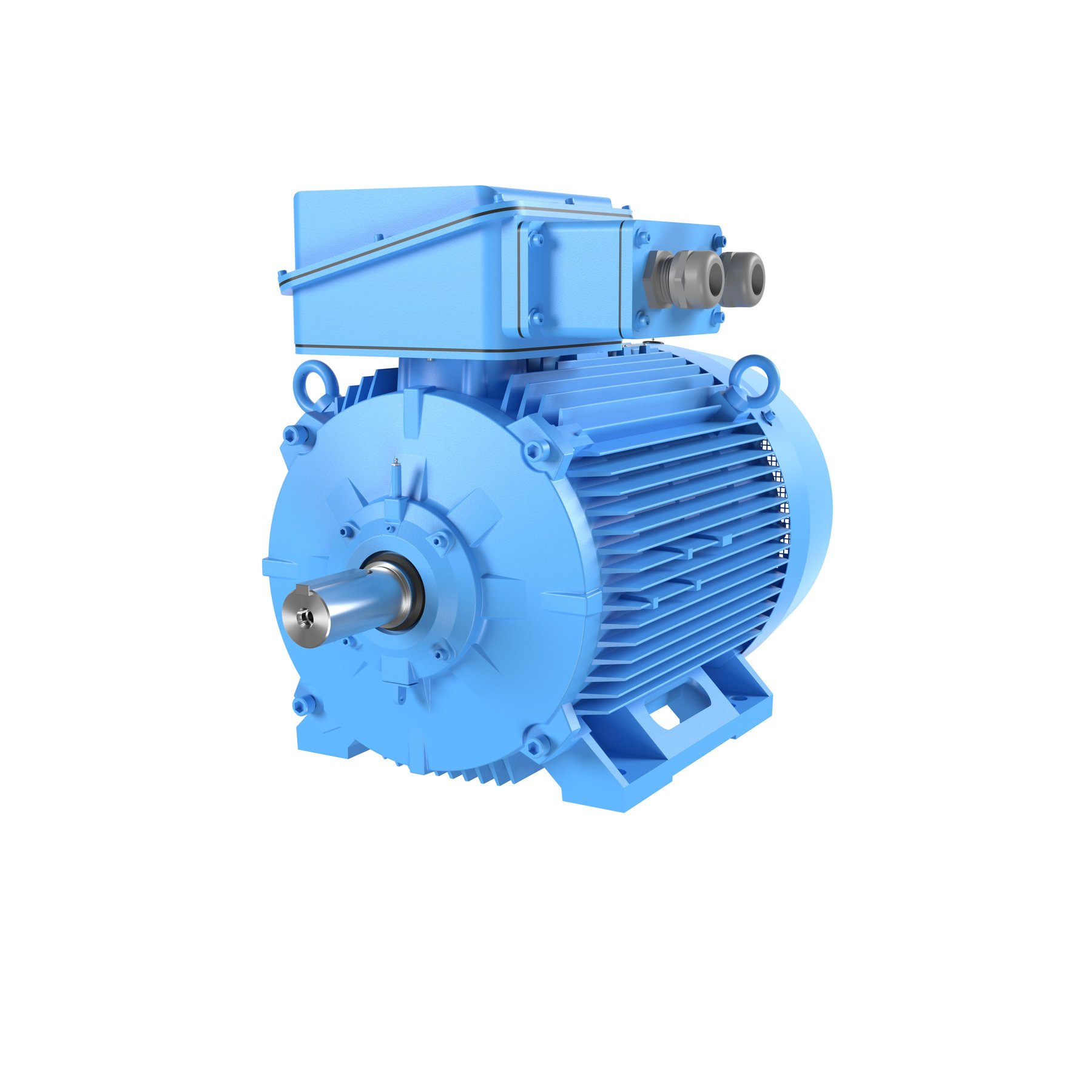

The photo shows the M2BAX 355 SMB 6 from the same series. Source: https://www.abb.com/global/en/products/3gga353210-bdcin

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the M2BAX 160 MLB 4, ABB offers a three-phase induction motor in the M2BAX series. The rated output is 15 kW. The motor is four-pole, which at 50 Hz gives a synchronous speed of 1,500 rpm. The housing is frame size 160. The protection class is IP55, IP56, IP65 and IP66. The efficiency is 92.5 per cent at full load, 92.7 per cent at 75 per cent load and 92 per cent at half load. Mounting arrangements to IEC 60034-7: B3, B5, B8, B35, V1, V3, V5 and V6. Stated countries of manufacture: Finland, Poland, China and India. The values are recorded in the Australian MEPS registration under the GEMS Determination 2019; measured to IEC 60034-2-1 (Edition 2.0). The M2BAX series covers 61 models. Rated output within it ranges from 0.75 to 184.99 kW; the M2BAX 160 MLB 4 sits at the bottom of that range with 15 kW. Its immediate neighbours are the M2BAX 160 MLB 6 below it with 11 kW and the M2BAX 160 MLC 2 above it with 18.5 kW. 2141 ABB models across 12 series are on record.

ABB M2BAX – three-phase motor range, per manufacturer logic the predecessor generation to the M3 range, manufactured in Finland, Poland, China and India, frame sizes 80 to 355, 0.75 to 185 kW

This page gathers the M2BAX range motors from ABB as listed in the Australian energy-efficiency register. M2BAX belongs, per manufacturer logic, to the older generation of ABB's IEC low-voltage motors that preceded the current M3 range (see the separately listed M3BP and M3JM ranges). The type designations, such as M2BAX 160 MLA 2, follow the scheme M2BAX <frame size> <length+variant> <pole count>.

Read on 3 more paragraphs

The register lists here 61 versions with 0.75 to 185 kW, two- to six-pole, full-load efficiencies from 82.6 to 96.3% and at 75% load from 82.5 to 96.6%. Frame sizes run from 80 to 355, all motors are recorded with the full IP55/IP56/IP65/IP66 protection combination. The combination of Finland, Poland, China and India dominates the manufacturing countries (45 of 61), with Sweden appearing singly. Testing followed the 2019 GEMS determination throughout, mostly with test method A (58); of 61 motors, 57 reach the 2005 High Efficiency Level (roughly IE2) and 3 the 2018 level (roughly IE3), only 1 stays unclassified.

As an older ABB range, M2BAX still covers a broad field of industrial applications, from pumps through fans to conveying plant, with an unusually high proportion of classified High Efficiency motors for ABB.

When buying used, what matters is bearing condition and a checked insulation resistance of the winding, the condition of shaft, key and fan cover, and a legible nameplate with frame size, mounting form and efficiency class; inverter suitability is given on most M2BAX models but should be confirmed individually from the nameplate. Spares run through the ABB service network.

Sources: SpecCodex register, model data: ABB M2BAX, ABB IEC-Niederspannungsmotoren (manufacturer)

Technical data

Engine

Rated output15 kWcorrect

Electrical data

Rated voltage230/400/415/690/500 Vcorrect
Number of poles4correct
Protection classIP55, IP56, IP65, IP66correct
Frame size160correct
Mounting (IEC 60034-7)B3, B5, B8, B35, V1, V3, V5, V6correct
Efficiency at full load92.5 %correct
Efficiency at 75 % load92.7 %correct
Efficiency at half load92 %correct

Origin and approval

Country of manufactureFinland, Poland, China, Indiacorrect

Other data

Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2019correct
Test methodIEC 60034-2-1 (Edition 2.0)correct
