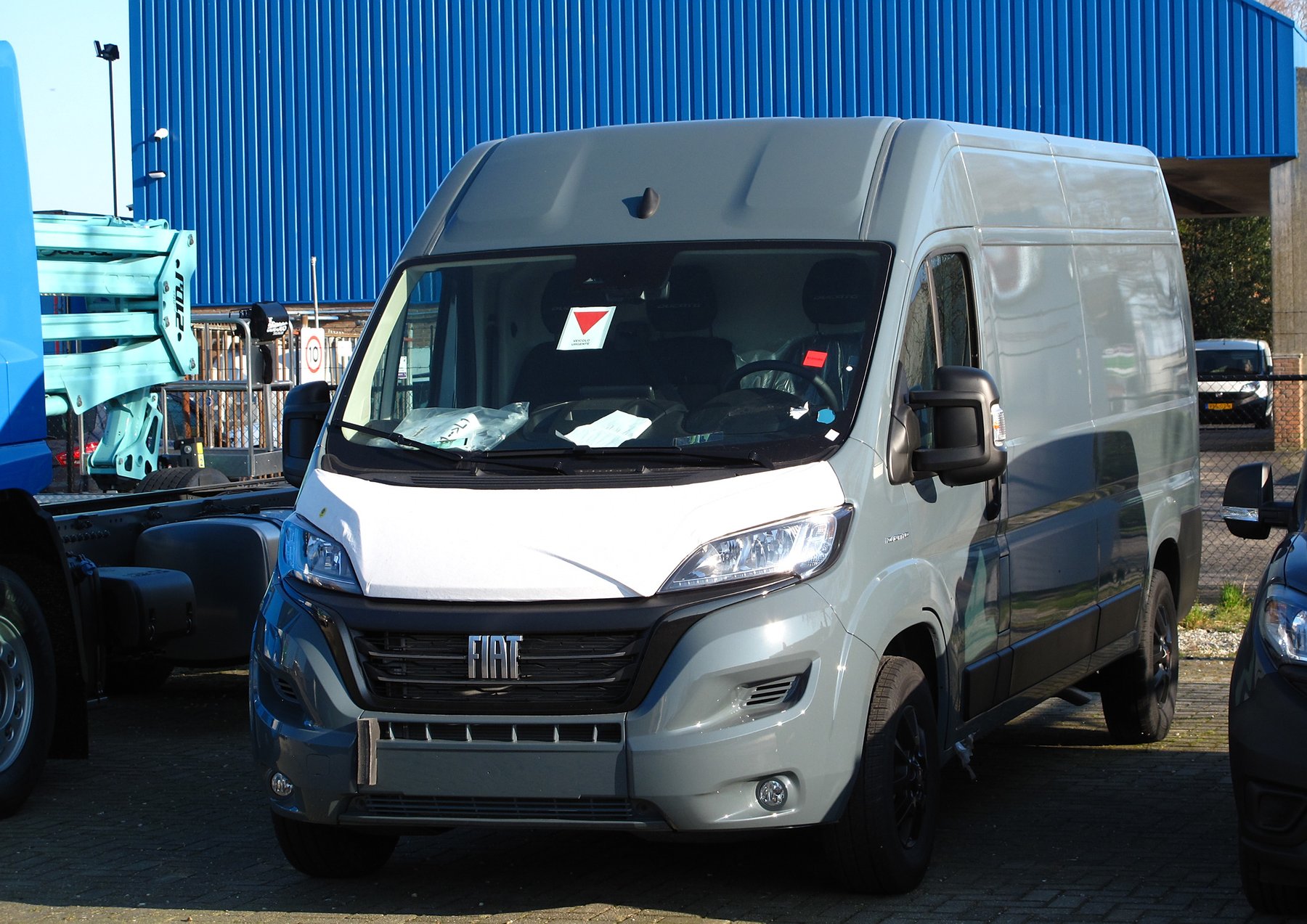

Fiat Ducato 35 MAXI L5H3
Built: 2026 · Series: Other models
More machines from model year 2026
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Fiat Ducato – other models: the collective page of Ducato versions outside the named ranges, from the 30 140 L2H2 and 35 140 L2H1 to the Maxi L5H3, four-cylinder diesels of 1,956 to 2,999 cm³
This page gathers the Fiat Ducato versions the register could not assign to a named range, including type designations such as 30 140 L2H2 3450, 35 140 L2H1, 35 L3H2 140 Multijet and the long version 35 Maxi L4H2/L5H3. The Ducato's type logic combines the weight class (30, 33, 35, 40 for 3.0 to 4.0 tonnes), engine power in hp (140, 180) and the length and height of the body (L1 to L5, H1 to H3), with Maxi marking chassis reinforced to 4.0 tonnes.
Read on 3 more paragraphs
The register lists here 9 versions with 1,956 to 2,999 cm³ displacement from four cylinders, kerb weights from 1,660 to 3,144 kg, gross weights from 3,040 to 3,500 kg, a length of around 6,800 mm on the long bodies and widths from 2,200 to 2,400 mm.
The Fiat Ducato, together with its technically largely identical sister models, is one of Europe's best-selling large vans and, as a panel van, platform cab, chassis cab and motorhome base, covers practically every market segment of light commercial vehicles above 3.0 tonnes.
On a used Ducato of these versions, rust on the sills, wheel arches and load-bed floor, the condition of the Multijet turbodiesel and its exhaust aftertreatment, the behaviour of clutch and gearbox, and, on long versions and the Maxi chassis, frame reinforcement and the tow hitch all count; parts are widely available through the dense Fiat and Stellantis network.
Sources: SpecCodex register, model data: Fiat Ducato (weitere Modelle), Fiat Professional (manufacturer)
Technical data
Dimensions and weights
| Unladen weight | 2,270 kgcorrect |
|---|---|
| Gross vehicle weight | 3,500 kgcorrect |
| Cargo length | 4,070 mmcorrect |
| Cargo width | 1,870 mmcorrect |
| Cargo height | 2,172 mmcorrect |
Drivetrain and chassis
| Axle configuration | 4 x2correct |
|---|---|
| Suspension | Blattcorrect |
| Tyre size | 215 /75R16Ccorrect |
Other data
| CO₂-Emissionen | 166 g/kmcorrect |
|---|---|
| Colour | whitecorrect |
| Gesamtlänge | 6,363 mmcorrect |
| Getriebetyp | mechanischcorrect |
| Hinterreifengröße | 215 /75R16Ccorrect |
| Kraftstofftyp | dieselcorrect |
| Kraftstoffverbrauch (außerorts) | 5.9 l/100kmcorrect |
| Kraftstoffverbrauch (innerorts) | 7.7 l/100kmcorrect |
| Kraftstoffverbrauch (kombiniert) | 6.6 l/100kmcorrect |
| Laderaumvolumen | 17 m³correct |
| Leistung | 132 kW (179,47 PS)correct |
| Payload | 1.23 kgcorrect |
| Radstand | 4,035 mmcorrect |
| Vorderreifengröße | 215 /75R16Ccorrect |
Frequently asked questions
How much does the Fiat Ducato 35 MAXI L5H3 weigh?
The unladen weight is 2,270 kg.
What is the gross vehicle weight of the Fiat Ducato 35 MAXI L5H3?
3,500 kg.
When was the Fiat Ducato 35 MAXI L5H3 built?
Production years: 2026.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
