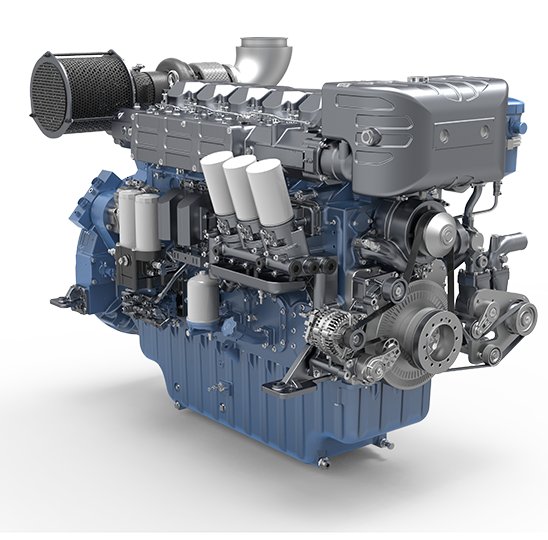

Weichai 6M33
Built: 2020-2024 · Series: Other models
More machines from model year 2020
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Weichai – other nonroad diesel engines: the collective page of EPA-certified M33 large engines outside the named ranges, 616 to 1,680 kW, six- to sixteen-cylinder, model years 2020 to 2025, Tier 2
Weichai, headquartered in Weifang, Shandong, is one of China's largest diesel engine makers, with a range spanning small agricultural-machinery engines to large units for ships and power plants. The versions listed here, 6M33, 12M33 and 16M33, belong to the M33 range, named after the cylinder count and the M33 range designation. This page gathers the models outside the named ranges.
Read on 3 more paragraphs
The register lists here 3 versions with 616 to 1,680 kW rated output, all at 1,800 rpm, from six- to sixteen-cylinder with 150 mm bore and 185 mm stroke. Maximum torque ranges from 3,267 to 8,912 Nm, model years from 2020 to 2025; all three versions run a fixed-geometry turbocharger and direct injection at the Tier 2 emission stage and the above 560 kW power category.
The more recent model years of these M33 versions show that Weichai kept developing the large-engine range after 2020 for nonroad use in standby generator sets and heavy stationary plant, while the Tier 2 emission stage points to certification for less emission-regulated application areas.
On a used purchase, operating hours count, along with the condition of the turbocharger, the tightness of the charge-air ducting and the service history of the injection system; on engines of this power class, parts supply through authorised Weichai representatives is decisive for uptime.
Sources: Kennwerte der Modelle Weichai (weitere Nonroad-Dieselmotoren), Weichai
Technical data
Engine
| Engine code | 6M33G6D2/6correct |
|---|---|
| Engine family | LWEHL52.3EMS; MWEHL52.3EMS; NWEHL52.3EMS; PWEHL52.3EMScorrect |
| Engine families | LWEHL52.3EMS; MWEHL52.3EMS; NWEHL52.3EMS; PWEHL52.3EMScorrect |
| Fuel | 7-15 ppm Ultra Low Sulfur Dieselcorrect |
| Rated output | 616 kWcorrect |
| Power band | 560<kW<=2237correct |
| Rated speed | 1,800 rpmcorrect |
| Maximum torque | 3,267 N·mcorrect |
| Speed at max. torque | 1,800 rpmcorrect |
| Cylinders | 6correct |
| Cylinder layout | in linecorrect |
| Bore | 150 mmcorrect |
| Stroke | 185 mmcorrect |
| Operating cycle | four-stroke dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
| Turbocharger type | Fixed Turbochargercorrect |
| Charge-air cooling | aircorrect |
| Emissions stage | Tier 2correct |
Origin and approval
| Version | 6M33G6D2/6correct |
|---|---|
| Built from | 2020correct |
| Built to | 2023correct |
| Model year from | 2020correct |
| Model year to | 2025correct |
Frequently asked questions
How much power does the Weichai 6M33 have?
The Weichai 6M33 delivers 616 kW.
When was the Weichai 6M33 built?
Production years: 2020-2024.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 26 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
