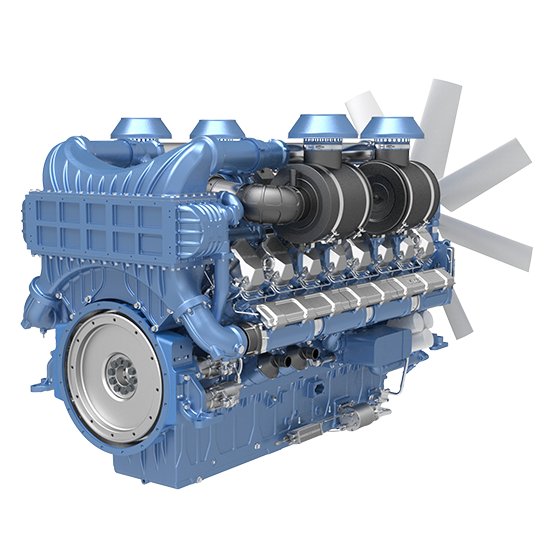

Weichai 16M33

Built: 2020-2024 · Series: Other models

More machines from model year 2020

Source: https://weichai.co.id/id/product/16m33-4/ weichai.co.id

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 16M33 comes from Weichai. Production: 2020-2024. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 1,680 kW. The engine is turbocharged. The engine meets emissions stage Tier 2. Fuel reaches the combustion chamber through direct injection. The charge air is cooled by coolant. Charging is by a fixed-geometry turbocharger. It is a four-stroke diesel engine. The cylinders are arranged in a V. Rated output across the Weichai range ranges from 616 to 1,680 kW; the 16M33 sits at the top of that range with 1,680 kW. Its immediate neighbours are the 12M33 below it with 1,008 kW. 3 Weichai models are on record. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine code16M33G2D2/6correct
Engine familyLWEHL52.3EMS; PWEHL52.3EMS; MWEHL52.3EMS; NWEHL52.3EMScorrect
Engine familiesLWEHL52.3EMS; PWEHL52.3EMS; MWEHL52.3EMS; NWEHL52.3EMScorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output1,680 kWcorrect
Power band560<kW<=2237correct
Rated speed1,800 rpmcorrect
Maximum torque8,912 N·mcorrect
Speed at max. torque1,800 rpmcorrect
Cylinders16correct
Cylinder layoutV layoutcorrect
Bore150 mmcorrect
Stroke185 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typeFixed Turbochargercorrect
Charge-air coolingliquidcorrect
Emissions stageTier 2correct

Origin and approval

Version16M33G2D2/6correct
Built from2020correct
Built to2023correct
Model year from2020correct
Model year to2025correct

Frequently asked questions

How much power does the Weichai 16M33 have?

The Weichai 16M33 delivers 1,680 kW.

When was the Weichai 16M33 built?

Production years: 2020-2024.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 26 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
