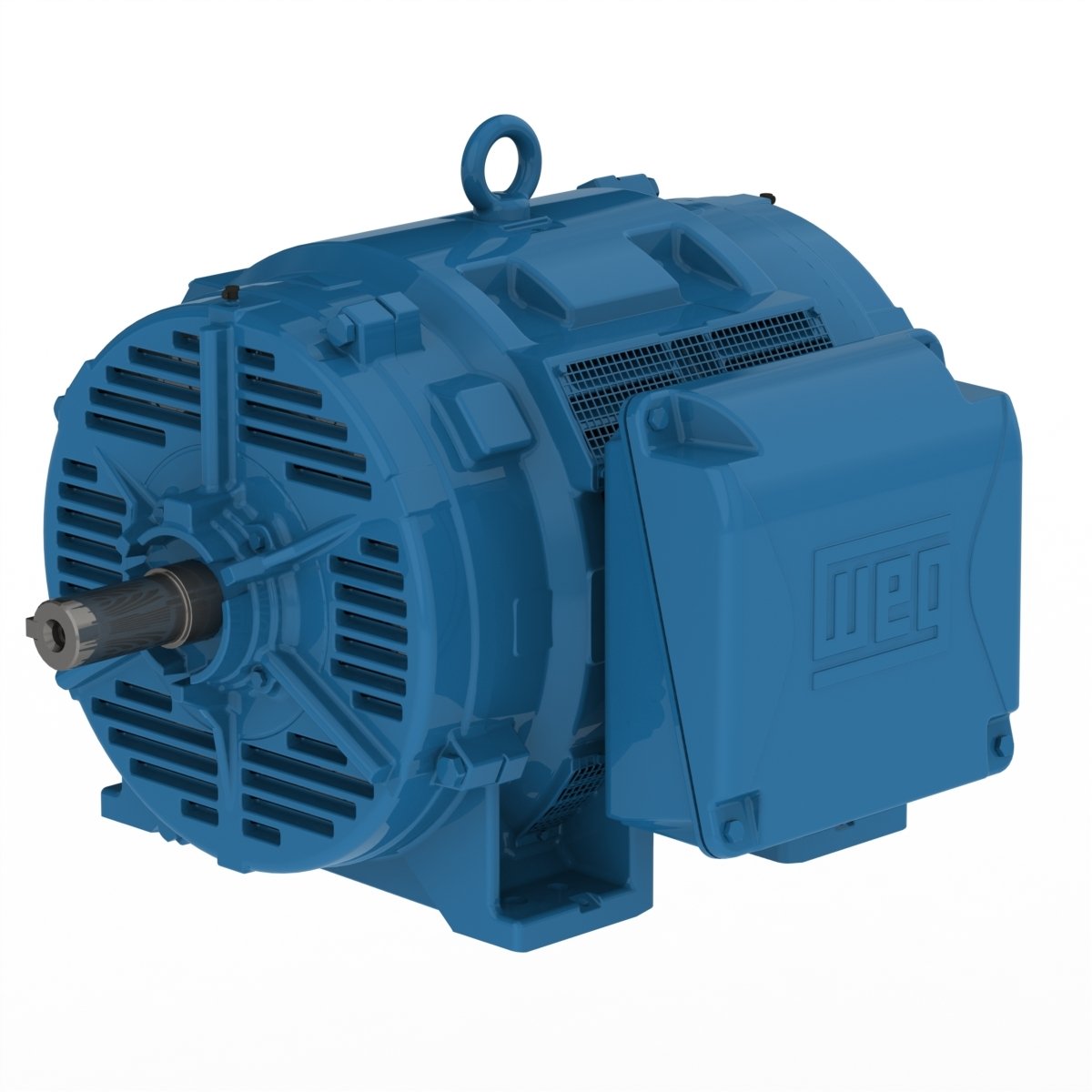

WE 1D280S-2

Series: Other models

Source: https://www.weg.net/catalog/weg/AT/en/Electric-Motors/Low-Vo

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The WE 1D280S-2 is a three-phase induction motor from the WE range. The rated output is 75 kW. The motor is two-pole, which at 50 Hz gives a synchronous speed of 3,000 rpm. The housing is frame size 280 S in foot-mounted form. The protection class is IP55. The efficiency is 92.9 per cent at full load, 92.5 per cent at 75 per cent load and 91.2 per cent at half load. The motor is built in China. The values are recorded in the Australian MEPS registration under the GEMS Determination 2012; measured to IEEE 112-B(USA). Rated output across the WE range ranges from 0.75 to 160 kW; the 1D280S-2 sits in the middle of that range with 75 kW. Its immediate neighbours are the 1D315S-8 below it with 55 kW and the 1D280M1-2 above it with 90 kW. 125 WE models are on record. The model is listed under Electric motors. 21 verified figures from 1 source are on file.

Technical data

Engine

Rated output75 kWcorrect

Electrical data

Number of poles2correct
Protection classIP55correct
Frame size280 S (foot)correct
Mounting (IEC 60034-7)B3, B6, B7, B8, V5, V6, B5, V1, V3, B35, V15, V36correct
Efficiency at full load92.9 %correct
Efficiency at 75 % load92.5 %correct
Efficiency at half load91.2 %correct

Origin and approval

Country of manufactureChinacorrect
Standard appliedGreenhouse and Energy Minimum Standards (Three Phase Electric Motors) Determination 2012correct
Test methodIEEE 112-B(USA)correct

Frequently asked questions

How much power does the WE 1D280S-2 have?

The WE 1D280S-2 delivers 75 kW.

What to check before buying

  • Match the data plate against the order: frame size, mounting and rating have to agree.
  • Check the ingress rating against the installation site — outdoors or in dust the demands differ.
  • Hold the mounting form and dimensions against the existing seat before ordering.
  • The pole count sets the speed — when replacing an older unit, compare this first.
  • For used units, ask about winding condition and bearing play.
  • Ask about parts availability for this series — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 21 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
