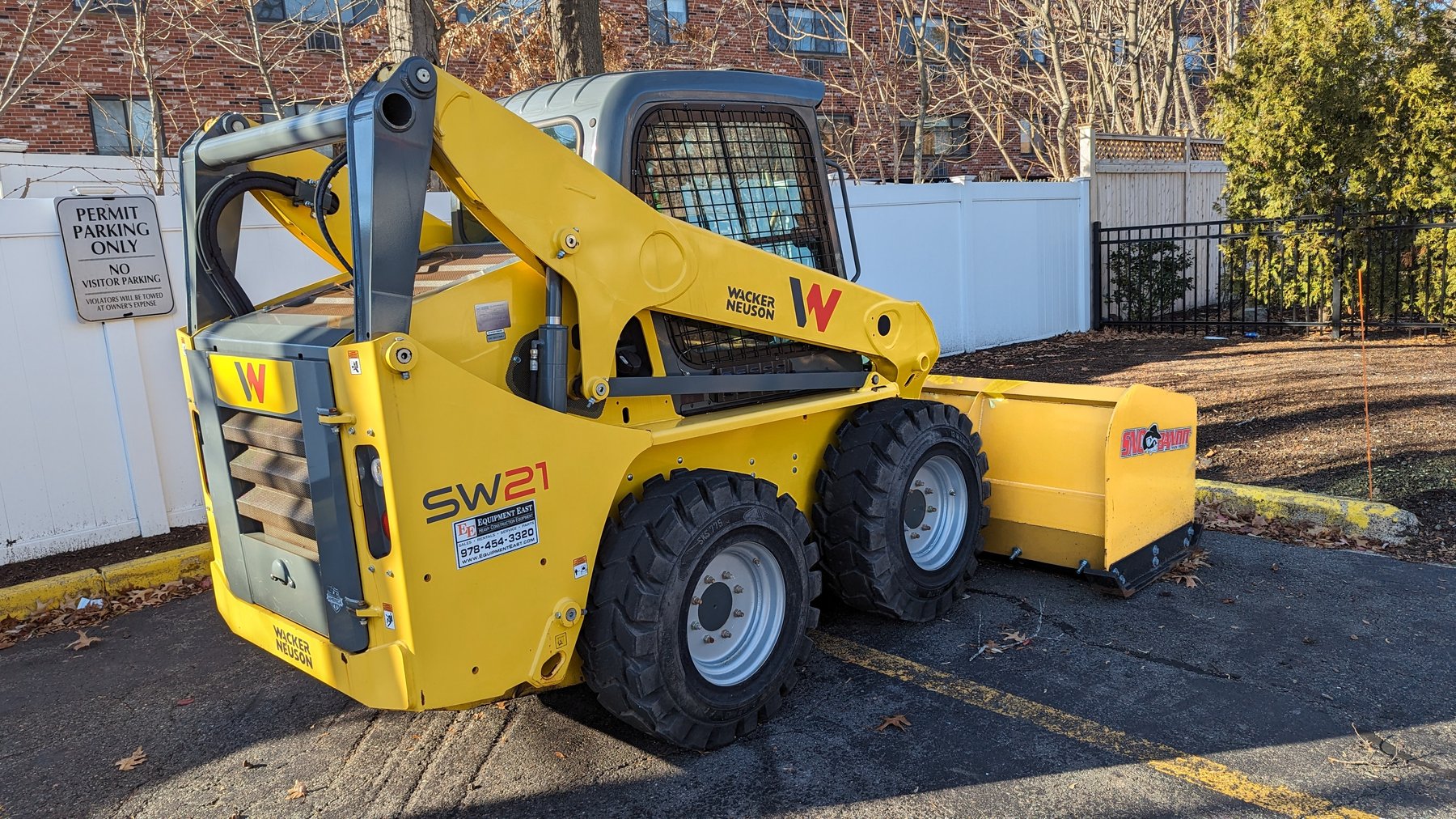

Wacker Neuson SW21

Series: Wacker Neuson Skid Steer Loader

Source: https://commons.wikimedia.org/w/index.php?curid=142467701 u

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Wacker Neuson Skid Steer Loader series from Wacker Neuson includes the SW21. The engine delivers 75 hp (55.2 kW), with a displacement of 2,482.6 cm³. The engine comes from Kohler. Rated speed is 2,750 rpm. The wheelbase measures 1,106.4 mm. Ground clearance is 193 mm. Top speed is 19.3 km/h. The tank holds 113.6 litres. The pump delivers 75.7 l/min. The hydraulic tank holds 11 litres. Working pressure is 241.3 bar. The engine fitted is the KDI 2504 TCR. Tyre size: 10 x 16,5. The Wacker Neuson Skid Steer Loader series covers 5 models. Rated output within it ranges from 56.8 to 75 hp; the SW21 sits at the top of that range with 75 hp. Its immediate neighbours are the SW20 below it with 56.8 hp. 50 Wacker Neuson models across 9 series are on record. The model is listed under Wheel loaders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine makeKohlercorrect
Engine modelKDI 2504 TCRcorrect
Power75 hp (55.2 kW)correct
Rated speed2,750 rpmcorrect
Displacement2,482.6 cm³correct

Dimensions and weights

Wheelbase1,106.4correct
Ground clearance193correct

Drivetrain and chassis

Tyre size10 x 16.5correct
Top speed19.3 km/hcorrect

Working data

Pump flow75.7 l/mincorrect
Hydraulic oil capacity11 lcorrect
Hydraulic pressure241.3correct
Fuel tank capacity113.6 lcorrect

Other data

Height2,072.6correct

Frequently asked questions

How much power does the Wacker Neuson SW21 have?

The Wacker Neuson SW21 delivers 75 hp.

What engine does the Wacker Neuson SW21 have?

2,483 cm³ displacement.

How fast does the Wacker Neuson SW21 go?

Top speed is 19.3 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 15 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
