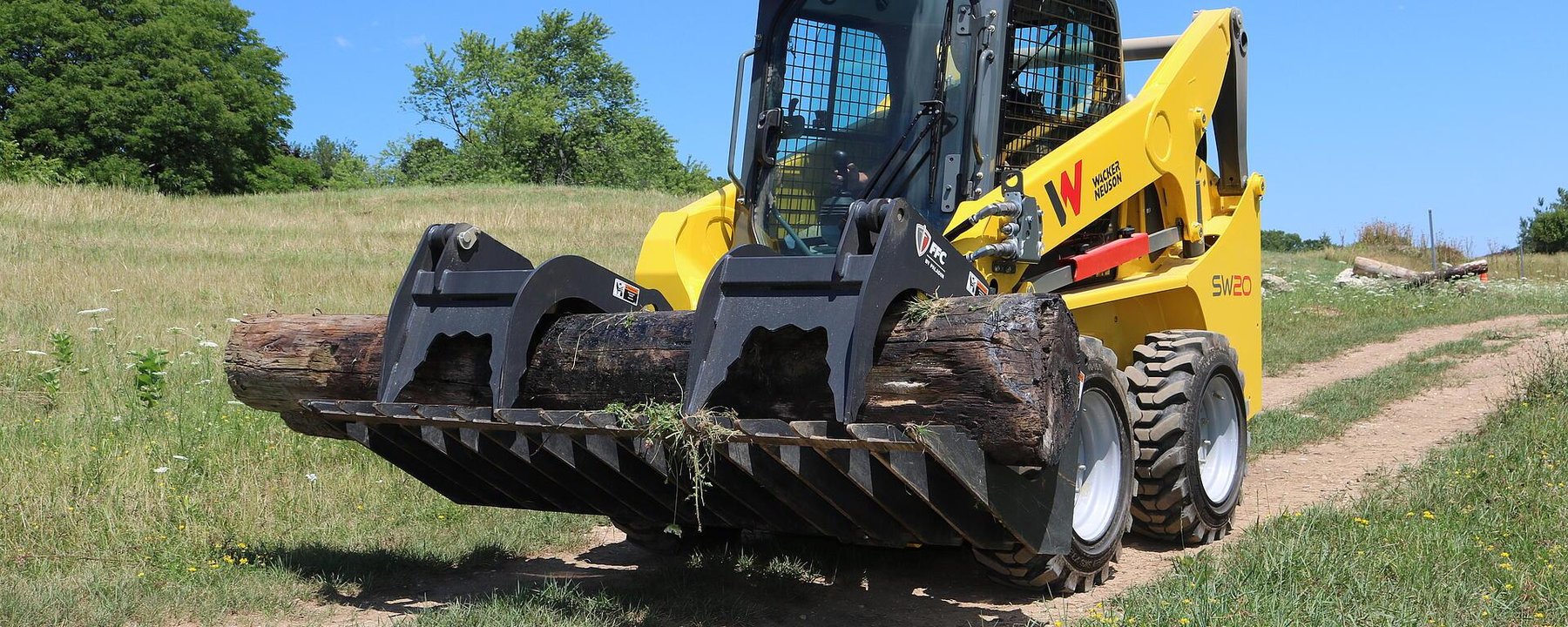

Wacker Neuson SW20

Series: Wacker Neuson Skid Steer Loader

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The SW20 from Wacker Neuson is part of the Wacker Neuson Skid Steer Loader series. The engine delivers 56.8 hp (41.8 kW), with a displacement of 1,861.6 cm³. The engine comes from Kohler. Rated speed is 2,750 rpm. The wheelbase measures 1,106.4 mm. Ground clearance is 193 mm. Top speed is 19.3 km/h. The tank holds 113.6 litres. The pump delivers 75.7 l/min. The hydraulic tank holds 11 litres. Working pressure is 241.3 bar. The engine fitted is the KDI 1903 TCR. Tyre size: 10 x 16,5. The Wacker Neuson Skid Steer Loader series covers 5 models. Rated output within it ranges from 56.8 to 75 hp; the SW20 sits at the bottom of that range with 56.8 hp. Its immediate neighbours are the SW17 above it with 75 hp. 50 Wacker Neuson models across 9 series are on record. The model is listed under Wheel loaders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine makeKohlercorrect
Engine modelKDI 1903 TCRcorrect
Power56.8 hp (41.8 kW)correct
Rated speed2,750 rpmcorrect
Displacement1,861.6 cm³correct

Dimensions and weights

Wheelbase1,106.4correct
Ground clearance193correct

Drivetrain and chassis

Tyre size10 x 16.5correct
Top speed19.3 km/hcorrect

Working data

Pump flow75.7 l/mincorrect
Hydraulic oil capacity11 lcorrect
Hydraulic pressure241.3correct
Fuel tank capacity113.6 lcorrect

Other data

Height2,072.6correct

Frequently asked questions

How much power does the Wacker Neuson SW20 have?

The Wacker Neuson SW20 delivers 56.8 hp.

What engine does the Wacker Neuson SW20 have?

1,862 cm³ displacement.

How fast does the Wacker Neuson SW20 go?

Top speed is 19.3 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
