Volvo D13N-435P
Built: 2020-2024 · Series: Other models

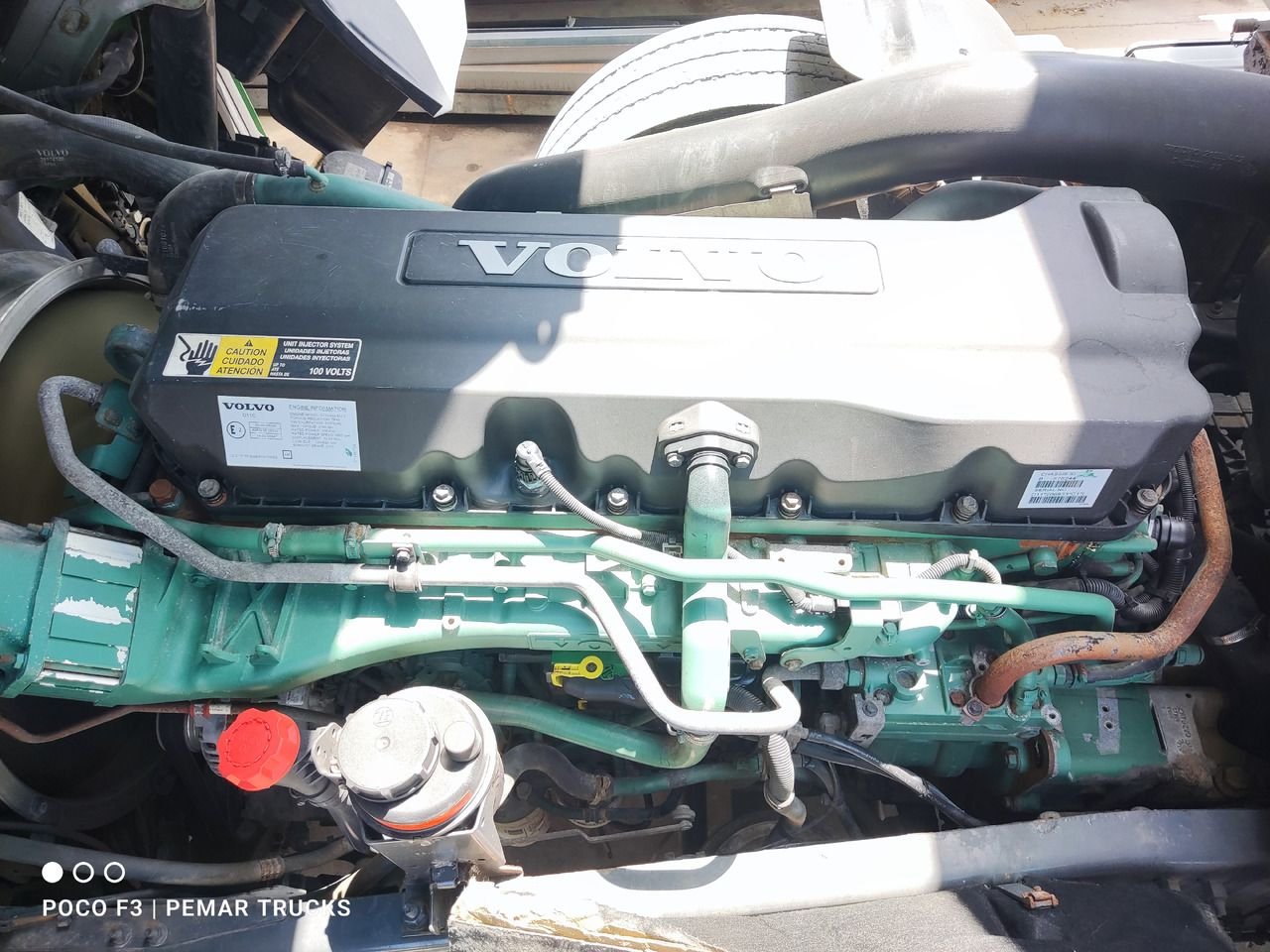

The photo shows the D11H-355 from the same series.
Source: https://www.truck1.eu/spare-parts/engines/volvo-ex-a30f-d11h
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
The Volvo D13N-435P is a machine built by Volvo. Production: 2020-2024. The fuel is 7-15 ppm ultra low sulfur diesel. The rated output is 435 hp. The engine is turbocharged. It is a diesel engine. Rated output across the Volvo range ranges from 325 to 605 kW; the D13N-435P sits in the lower part of that range with 435 kW. Its immediate neighbours are the MP13-425CA below it with 434 kW and the D13-425 above it with 436 kW. 5366 Volvo models across 29 series are on record. The model is listed under Heavy-duty on-road engines. 20 verified figures from 1 source are on file.
Technical data
Engine
| Engine code | VSTcorrect |
|---|---|
| Engine family | MVPTH12.8G01; LVPTH12.8G01correct |
| Engine families | MVPTH12.8G01; LVPTH12.8G01correct |
| Fuel | 7-15 ppm ultra low sulfur dieselcorrect |
| Rated output | 435 hpcorrect |
| Rated speed | 1,700 rpmcorrect |
| Maximum torque | 1,699 ft·lbfcorrect |
| Speed at max. torque | 1,050 rpmcorrect |
| Displacement | 12.8 lcorrect |
| Operating cycle | dieselcorrect |
| Injection | direct injectioncorrect |
| Aspiration | turbochargedcorrect |
Origin and approval
| Version | VSTcorrect |
|---|---|
| Built from | 2020correct |
| Built to | 2021correct |
| Model year from | 2020correct |
| Model year to | 2026correct |
Other data
| Anwendungsbereich | Both Tractor and Vocationalcorrect |
|---|
Frequently asked questions
How much power does the Volvo D13N-435P have?
The Volvo D13N-435P delivers 435 kW.
When was the Volvo D13N-435P built?
Production years: 2020-2024.
What to check before buying
- Match the data plate against the order: frame size, mounting and rating have to agree.
- For used units, ask about winding condition and bearing play.
- Ask about parts availability for this series — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 20 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
Other models in this series
D11H-325
D11H-355
D11H-365
D11H-385
D11H-405
D11M-325
D11M-355
D11M-365
D11M-385
D11M-425
D11N-325
D11N-355
Sources: [1]
Diesel engine in 3D section
Turn the model, look inside and click an assembly — each one is explained.
Teile zu diesem Motor (58)
Teilenummern des Herstellers aus der amtlichen EPA-Dokumentation. Ohne Preis und Verfügbarkeit — die kommen vom Lieferanten.
| Teilenummer | Bezeichnung | Hersteller |
|---|---|---|
| 23252913 | Aftertreatment Control Module (ACM) | Volvo |
| 23937771 | Aftertreatment Hydrocarbon Injector (AHI) Injector | Volvo |
| 21718154 | Crankcase Breather | Volvo |
| 22757225 | DEF Injector (dosing valve);DEF Injector - Bus, 2-Box;DEF Injector (dosing valve);DEF Injector (dosing valve);DEF Injector - Bus, 2-Box | Volvo |
| 23753841 | DEF Pump assembly (Pump Unit) | Volvo |
| 24169188 | DEF Pump Assembly;DEF Pump assembly (Pump Unit);DEF Pump Assembly;DEF Pump assembly (Pump Unit);DEF Pump assembly (Pump Unit);DEF Pump Assembly | Volvo |
| 85002754 | DEF Pump assembly (Pump Unit), Remanufactured | Volvo |
| 85023539 | DEF Pump assembly (Pump Unit), Remanufactured | Volvo |
| 85031446 | DEF Pump assembly (Pump Unit), Remanufactured | Volvo |
| 85031447 | DEF Pump assembly (Pump Unit), Remanufactured | Volvo |
| 21990643 | DPF Assembly with Diesel Oxidation Catalyst (DOC) - Bus | Volvo |
| 22058307 | DPF Assembly with Diesel Oxidation Catalyst (DOC) - Bus;DPF Assembly, w/ DOC - Bus, 2-Box;DPF Assembly with Diesel Oxidation Catalyst (DOC) - Bus;DPF Assembly with Diesel Oxidation Catalyst (DOC) - Bus;DPF Assembly, w/ DOC - Bus, 2-Box | Volvo |
| 24405156 | Sensor DPF Differential Pressure | Volvo |
| 23488881 | Sensor DPF Differential Pressure | Volvo |
| 23507543 | EGR Control Valve (VCB Valve);EGR Valve (VCB);EGR Control Valve (VCB Valve);EGR Valve (VCB);EGR Valve (VCB);EGR Control Valve (VCB Valve) | Volvo |
| 23225749 | EGR Cooler | Volvo |
| 22721861 | EGR Valve | Volvo |
| 23141251 | Engine Control Module (ECM) | Volvo |
| 24239076 | Engine Control Module (ECM) | Volvo |
| 24400053 | Engine Control Module (ECM) | Volvo |
| 22172068 | Sensor EGR Differential Pressure | Volvo |
| 22942010 | Intake Throttle Valve | Volvo |
| 22303390 | Sensor NOx (Pre-cat);Sensor NOx - SCR In;Sensor NOx - SCR In;Sensor NOx (Pre-cat);Sensor NOx (Pre-cat);Sensor NOx - SCR In | Volvo |
| 22303391 | Sensor NOx (Post-cat);Sensor NOx - SCR Out, 2-Box;Sensor NOx - SCR Out, 2-Box;Sensor NOx (Post-cat);Sensor NOx (Post-cat);Sensor NOx - SCR Out, 2-Box | Volvo |
| 85023783 | Sensor NOx (Pre-cat), Remanufactured | Volvo |
| 23090830 | SCR "Blanket", Heat Shield, Lower - 2-Box, Side Inlet (PH, PX);SCR "blanket" Heat Shield (lower) - X models;SCR "blanket" Heat Shield (lower) - H models | Volvo |
| 23090827 | SCR "Blanket", Heat Shield, Upper - 2-Box, Side Inlet (PH);SCR "blanket" Heat Shield (upper) - H models | Volvo |
| 23090822 | SCR "Blanket", Heat Shield, Upper - 2-Box, Side Inlet (PX) | Volvo |
| 23009773 | SCR "blanket" Heat Shield (lower) - H models | Volvo |
| 22986640 | SCR "blanket" Heat Shield (lower) - X models | Volvo |
| 23009772 | SCR "blanket" Heat Shield (upper) - H models | Volvo |
| 22986637 | SCR "blanket" Heat Shield (upper) - X models | Volvo |
| 21970125 | SCR Assembly (2-Box) | Volvo |
| 23190006 | SCR Assembly (2-Box) | Volvo |
| 23196231 | SCR Assembly (2-Box);SCR Assembly (2-Box);SCR Assembly - Bus, 2-Box;SCR Assembly - 2-Box, Bus;SCR Assembly - Bus, 2-Box;SCR Assembly (2-Box);SCR Assembly - 2-Box, Bus;SCR Assembly - Bus, 2-Box;SCR Assembly - 2-Box, Bus;SCR Assembly (2-Box) | Volvo |
| 21126692 | Sensor Temperature, Post-DPF (T3) - 2-Box;Sensor Temperature, Post-DPF (T3) - 2-Box;Sensor Pre-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Post-DPF (T3) - 2-Box | Volvo |
| 21164414 | Sensor Post-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Post-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Pre-Catalyst Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Post-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Post-Catalyst Temperature;Sensor Post-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Post-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Post-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Post-Catalyst Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Pre-Catalyst Temperature;Sensor Post-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 2-Box;Sensor Post-Catalyst Temperature | Volvo |
| 21412472 | Sensor Temperature, Post-SCR (T4) - 1-Box;Sensor Temperature, Post-SCR (T4) - 2-Box;Sensor Temperature, Post-SCR (T4) - 2-Box;Sensor Temperature, Post-SCR (T4) - 1-Box;Sensor Temperature, Post-SCR (T4) - 2-Box | Volvo |
| 20260007 | Sensor AHI Fuel Pressure | Volvo |
| 22899626 | Sensor AHI Fuel Pressure | Volvo |
| 22422785 | Sensor Inlet Manifold Temperature, Pressure;Sensor Temperature & Pressure Inlet Manifold Air | Volvo |
| 24848907 | Sensor Inlet Manifold Temperature, Pressure | Volvo |
| 85023785 | Sensor NOx (Post-cat) - "Onebox" EATS arrangement, Remanufactured | Volvo |
| 85023784 | Sensor NOx (Post-cat), Remanufactured | Volvo |
| 24191736 | Sensor Particulate Matter (PM) | Volvo |
| 24307015 | Sensor Particulate Matter (PM) | Volvo |
| 21225020 | Sensor DPF Downstream Temperature;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor Temperature, Post-SCR (T4) - Linear (1-Box);Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Pre-Catalyst Temperature;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Post-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Pre-Catalyst Temperature;Sensor Pre-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Post-Catalyst Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DPF (T2) - 1-Box;Sensor DPF Downstream Temperature;Sensor Temperature, Pre-DOC (T1) - 2-Box;Sensor Temperature, Pre-DPF (T2) - 1-Box | Volvo |
| 24076036 | Sensor Urea Quality and Level (UQLS) - 60L Tank Applications | Volvo |
| 24383119 | Sensor Urea Quality and Level (UQLS) - 60L Tank Applications;Sensor Urea Quality (UQS) - 60L Tank Applications;Sensor Urea Quality and Level (UQLS) - 60L Tank Applications;Sensor Urea Quality and Level (UQLS) - 60L;Sensor Urea Quality and Level (UQLS) - 60L Tank Applications;Sensor Urea Quality and Level (UQLS) - 60L Tank Applications;Sensor Urea Quality and Level (UQLS) - 60L;Sensor Urea Quality and Level (UQLS) - 60L Tank Applications;Sensor Urea Quality and Level (UQLS) - 60L;Sensor Urea Quality (UQS) - 60L Tank Applications;Sensor Urea Quality and Level (UQLS) - 60L Tank Applications;Sensor Urea Quality (UQS) - 60L Tank Applications;Sensor Urea Quality and Level (UQLS) - 60L | Volvo |
| 24011183 | Turbocharger Assembly;Turbocharger (VGT);Turbocharger Assembly;Turbocharger Assembly;Turbocharger (VGT);Turbocharger (VGT) | Volvo |
| 22378580 | Unit Injectors Non-Pumping | Volvo |
| 22490196 | Unit Injectors Non-Pumping;Unit Injectors Pumping;Unit Injectors Non-Pumping | Volvo |
| 85030525 | Unit Injectors Non-Pumping;Unit Injectors Non-Pumping, Remanufactured;Unit Injectors Non-Pumping, Remanufactured;Unit Injectors Non-Pumping | Volvo |
| 85022899 | Unit Injectors Non-Pumping, Remnaufactured;Unit Injectors Non-Pumping, Remanufactured;Unit Injectors Non-Pumping, Remnaufactured;Unit Injectors Non-Pumping, Remnaufactured;Unit Injectors Non-Pumping, Remanufactured | Volvo |
| 22490195 | Unit Injectors Pumping | Volvo |
| 23771407 | Unit Injectors Pumping | Volvo |
| 85023400 | Unit Injectors Pumping, Remanufactured | Volvo |
| 85030524 | Unit Injectors Pumping;Unit Injectors Pumping, Remanufactured;Unit Injectors Pumping, Remanufactured;Unit Injectors Pumping | Volvo |
Quelle: EPA HD Engines 2015–Present
