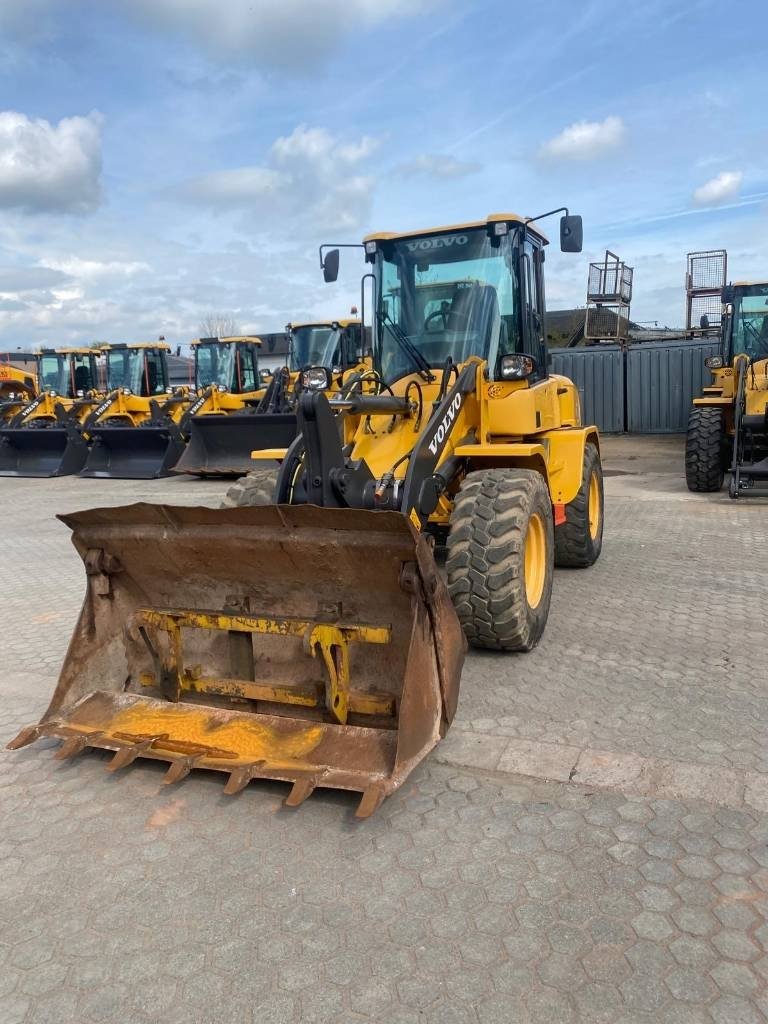

Volvo L35G

Series: Volvo Wheel Loader

Source: https://used.schultes-baumaschinen.de/schultesnachf/baumasch

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The L35G from Volvo is part of the Volvo Wheel Loader series. The engine delivers 75 hp (55.2 kW), has 4 cylinders, with a displacement of 3,300.4 cm³. Rated speed is 2,600 rpm. The wheelbase measures 2,151.9 mm. Ground clearance is 612.6 mm. The tank holds 84 litres. Maximum torque is reached at 1,500 rpm. The pump delivers 69.3 l/min. The hydraulic tank holds 54.1 litres. The cooling system holds 11.4 litres. The engine fitted is the Volvo D3,3M or D3,3H. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L35G sits at the bottom of that range with 75 hp. Its immediate neighbours are the L35 below it with 74 hp and the L35B Pro above it with 78.1 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelVolvo D3.3M or D3.3Hcorrect
Power75 hp (55.2 kW)correct
Rated speed2,600 rpmcorrect
Speed at max. torque1,500 rpmcorrect
Cylinders4correct
Displacement3,300.4 cm³correct
Aspirationturbochargedcorrect
Coolant capacity11.4 lcorrect

Dimensions and weights

Wheelbase2,151.9correct
Ground clearance612.6correct

Working data

Pump flow69.3 l/mincorrect
Hydraulic oil capacity54.1 lcorrect
Fuel tank capacity84 lcorrect

Other data

Height2,746.2correct

Frequently asked questions

How much power does the Volvo L35G have?

The Volvo L35G delivers 75 hp.

What engine does the Volvo L35G have?

4 cylinders, 3,300 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
