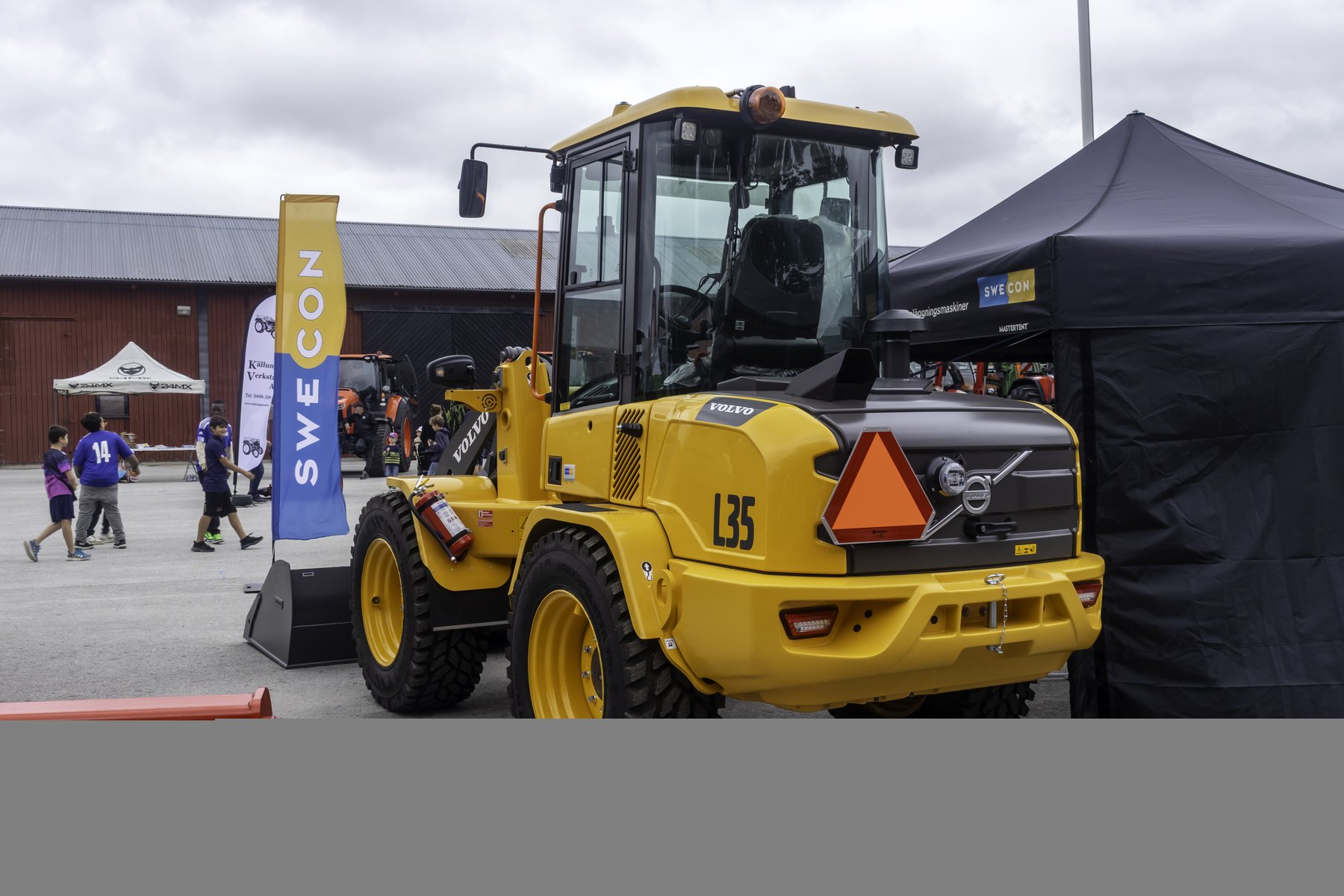

Volvo L35

Series: Volvo Wheel Loader

Source: https://commons.wikimedia.org/w/index.php?curid=174656677 u
The Volvo Wheel Loader series from Volvo includes the L35. The engine delivers 74 hp (52.2 kW), has 4 cylinders, with a displacement of 2,730.1 cm³. Torque is 220 Nm. Rated speed is 2,500 rpm. The unladen weight is 5,740 kg. The wheelbase measures 2,151.9 mm. Ground clearance is 445 mm. The tank holds 86.3 litres. The gearbox has 2 forward gears. There are also 2 reverse gears. Maximum torque is reached at 1,800 rpm. The pump delivers 70 l/min. The hydraulic tank holds 60.2 litres. The electrical system runs on 12 V. The engine fitted is the BF4L 1011F. Tyre size: 405/70 R20. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L35 sits at the bottom of that range with 74 hp. Its immediate neighbours are the L30B Pro below it with 72 hp and the L30G above it with 75 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelBF4L 1011Fcorrect
Power74 hp (52.2 kW)correct
Rated speed2,500 rpmcorrect
Torque220correct
Speed at max. torque1,800 rpmcorrect
Cylinders4correct
Displacement2,730.1 cm³correct
Aspirationturbochargedcorrect

Dimensions and weights

Wheelbase2,151.9correct
Ground clearance445correct
Unladen weight5,740 kgcorrect

Drivetrain and chassis

Gearbox typehydrostatic transmissioncorrect
Forward gears2correct
Reverse gears2correct
Tyre size405/70 R20correct
System voltage12 Vcorrect

Working data

Pump flow70 l/mincorrect
Hydraulic oil capacity60.2 lcorrect
Fuel tank capacity86.3 lcorrect

Other data

Height2,715.8correct

Where this model stands

Power-to-weight ratio: 9.1 kW/t (52 kW / 5.7 t)

Stronger than 20% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo L35 have?

The Volvo L35 delivers 74 hp.

How much does the Volvo L35 weigh?

The unladen weight is 5,740 kg.

What engine does the Volvo L35 have?

4 cylinders, 2,730 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
