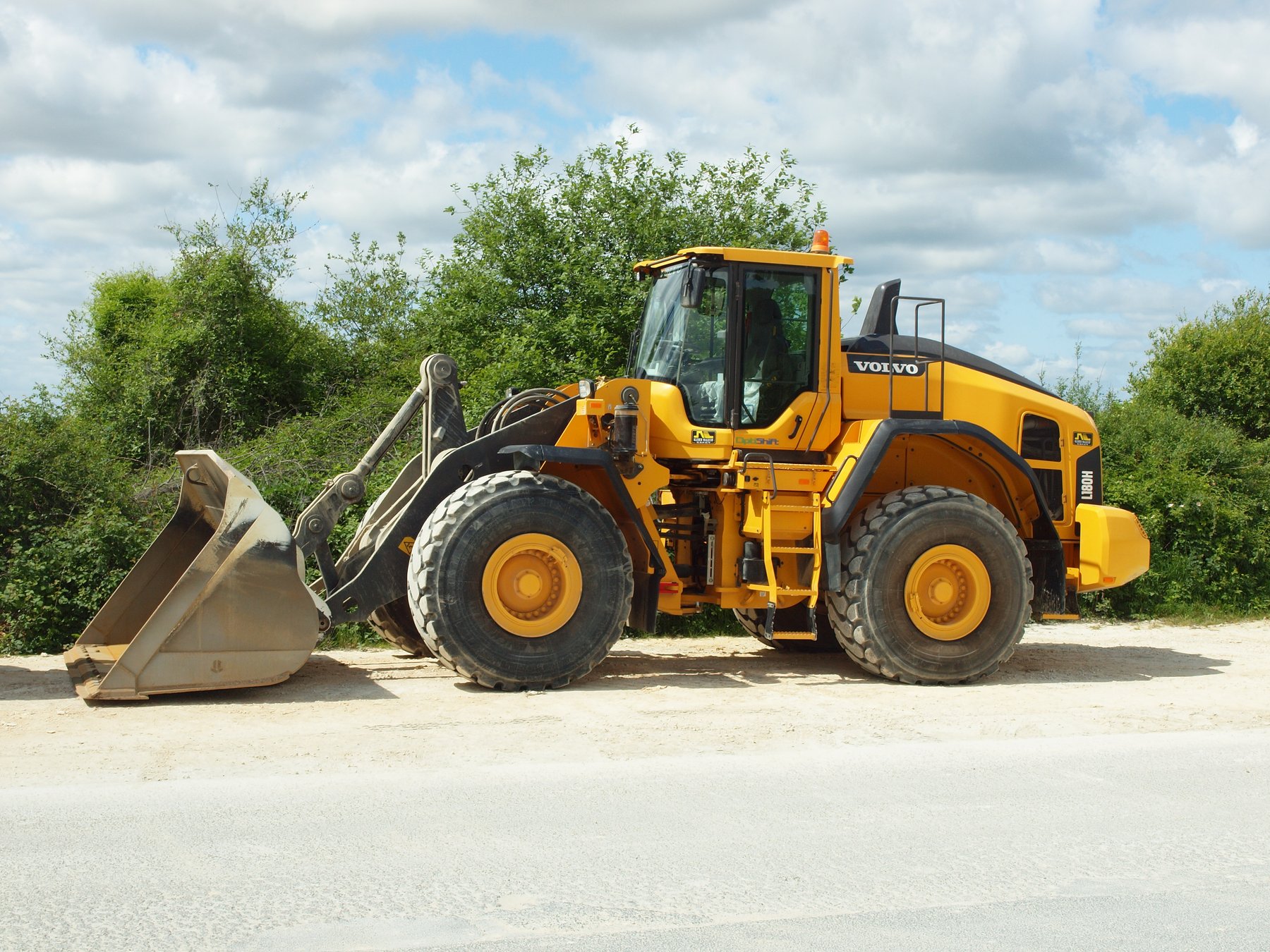

Volvo L180H

Series: Volvo Wheel Loader

Source: https://commons.wikimedia.org/w/index.php?curid=40394211

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The L180H from Volvo is part of the Volvo Wheel Loader series. The engine delivers 334.5 hp (245 kW), has 6 cylinders, with a displacement of 12,801.6 cm³. Rated speed is 1,400 rpm. Ground clearance is 612.6 mm. The tank holds 366 litres. Maximum torque is reached at 1,000 rpm. The hydraulic tank holds 156.3 litres. The cooling system holds 55.3 litres. The engine fitted is the Volvo D13J. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L180H sits in the middle of that range with 334.5 hp. Its immediate neighbours are the L180F below it with 319.6 hp and the L180G above it with 334.6 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine model	Volvo D13Jcorrect
Power	334.5 hp (245 kW)correct
Rated speed	1,400 rpmcorrect
Speed at max. torque	1,000 rpmcorrect
Cylinders	6correct
Displacement	12,801.6 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	55.3 lcorrect

Dimensions and weights

Ground clearance	612.6correct

Working data

Hydraulic oil capacity	156.3 lcorrect
Fuel tank capacity	366 lcorrect

Other data

Height	3,581.4correct

Frequently asked questions

How much power does the Volvo L180H have?

The Volvo L180H delivers 334 hp.

What engine does the Volvo L180H have?

6 cylinders, 12,802 cm³ displacement.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →

Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 13 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Used equipment offers
10 current listings for Volvo L180H on Hutnia.com.
View offers on Hutnia.com →

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
