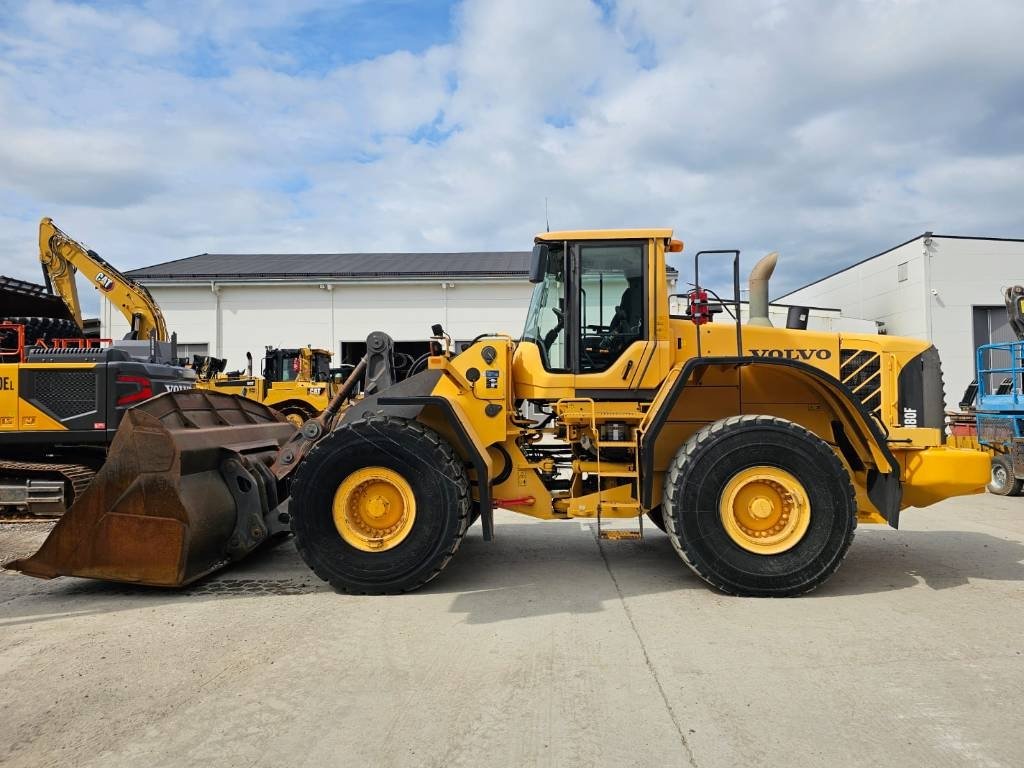

Volvo L180F

Series: Volvo Wheel Loader

Source: https://pantrading.com/en/used-wheel-loaders/volvo-l180f-B49

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo L180F belongs to the Volvo Wheel Loader series. The engine delivers 319.6 hp (234 kW), has 6 cylinders, with a displacement of 12,000.2 cm³. Torque is 1,603.1 Nm. Rated speed is 1,500 rpm. The unladen weight is 26,160 kg. The wheelbase measures 3,550.9 mm. Ground clearance is 481.6 mm. The tank holds 335 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 247.2 l/min. The hydraulic tank holds 156.3 litres. The cooling system holds 42 litres. The electrical system runs on 24 V. The engine fitted is the D12DLAE3. Tyre size: 26,5R25 L3. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L180F sits in the middle of that range with 319.6 hp. Its immediate neighbours are the L180E below it with 307.2 hp and the L180H HIGH-LIFT above it with 334.5 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD12DLAE3correct
Power319.6 hp (234 kW)correct
Rated speed1,500 rpmcorrect
Torque1,603.1correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement12,000.2 cm³correct
AspirationTurbocharged and Intercooledcorrect
Coolant capacity42 lcorrect

Dimensions and weights

Wheelbase3,550.9correct
Ground clearance481.6correct
Unladen weight26,160 kgcorrect

Drivetrain and chassis

Gearbox typeautomatic gearbox powershift transmissioncorrect
Forward gears4correct
Reverse gears4correct
Tyre size26.5R25 L3correct
System voltage24 Vcorrect

Working data

Pump flow247.2 l/mincorrect
Hydraulic oil capacity156.3 lcorrect
Fuel tank capacity335 lcorrect

Other data

Height3,581.4correct

Where this model stands

Power-to-weight ratio: 8.9 kW/t (234 kW / 26.2 t)

Stronger than 91% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo L180F have?

The Volvo L180F delivers 320 hp.

How much does the Volvo L180F weigh?

The unladen weight is 26,160 kg.

What engine does the Volvo L180F have?

6 cylinders, 12,000 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
