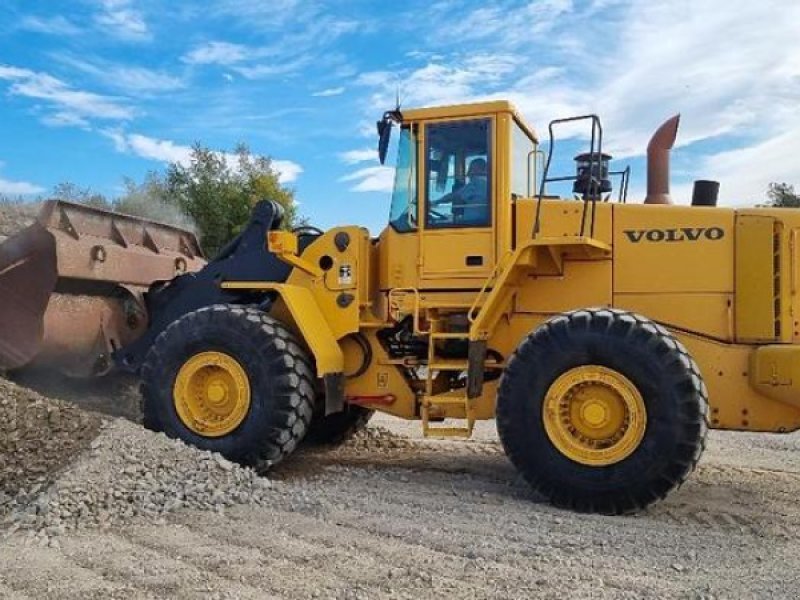

Volvo L180E

Series: Volvo Wheel Loader

Source: https://www.technikboerse.at/gebraucht/radlader-255 technik

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Volvo Wheel Loader series from Volvo includes the L180E. The engine delivers 307.2 hp (223.7 kW), has 6 cylinders, with a displacement of 12,000.2 cm³. Torque is 1,700.1 Nm. Rated speed is 1,400 rpm. The unladen weight is 26,400 kg. The wheelbase measures 3,550.9 mm. Ground clearance is 442 mm. The tank holds 370.2 litres. The gearbox has 4 forward gears. There are also 4 reverse gears. Maximum torque is reached at 1,200 rpm. The pump delivers 234.3 l/min. The hydraulic tank holds 156.3 litres. The cooling system holds 70 litres. The electrical system runs on 24 V. The engine fitted is the D12C LC E2. Tyre size: 26,5R25 L3. The Volvo Wheel Loader series covers 83 models. Rated output within it ranges from 31.4 to 539.4 hp; the L180E sits in the middle of that range with 307.2 hp. Its immediate neighbours are the L150H below it with 299.2 hp and the L180F above it with 319.6 hp. 5366 Volvo models across 29 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelD12C LC E2correct
Power307.2 hp (223.7 kW)correct
Rated speed1,400 rpmcorrect
Torque1,700.1correct
Speed at max. torque1,200 rpmcorrect
Cylinders6correct
Displacement12,000.2 cm³correct
Aspirationturbochargedcorrect
Coolant capacity70 lcorrect

Dimensions and weights

Wheelbase3,550.9correct
Ground clearance442correct
Unladen weight26,400 kgcorrect

Drivetrain and chassis

Gearbox typeVolvo HTE220correct
Forward gears4correct
Reverse gears4correct
Tyre size26.5R25 L3correct
System voltage24 Vcorrect

Working data

Pump flow234.3 l/mincorrect
Hydraulic oil capacity156.3 lcorrect
Fuel tank capacity370.2 lcorrect

Other data

Height3,581.4correct

Where this model stands

Power-to-weight ratio: 8.5 kW/t (224 kW / 26.4 t)

Stronger than 90% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo L180E have?

The Volvo L180E delivers 307 hp.

How much does the Volvo L180E weigh?

The unladen weight is 26,400 kg.

What engine does the Volvo L180E have?

6 cylinders, 12,000 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
