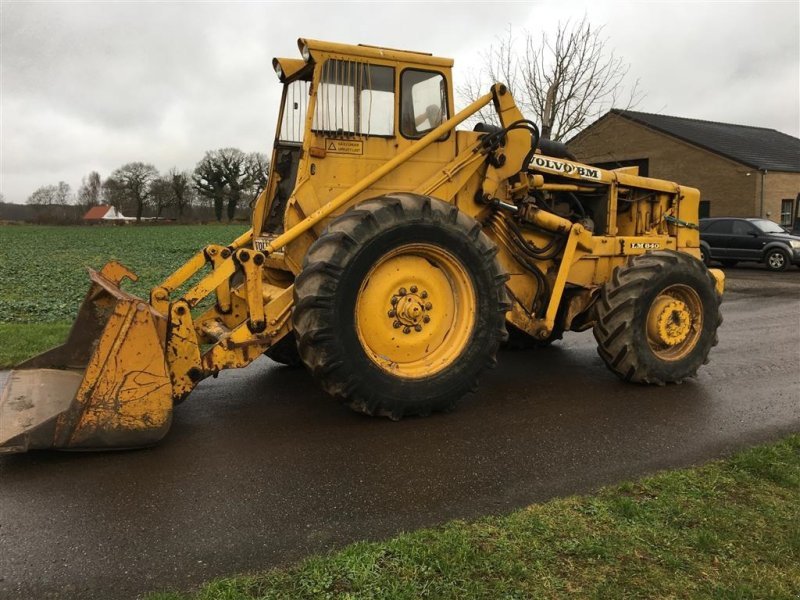

Volvo Bm L90B

Series: Volvo BM Wheel Loader

Source: https://www.technikboerse.at/marke/volvo-bm-1248

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The L90B from Volvo Bm is part of the Volvo BM Wheel Loader series. The engine delivers 116.6 hp (81.3 kW), has 6 cylinders, with a displacement of 5,481.5 cm³. Torque is 630 Nm. Rated speed is 2,200 rpm. The unladen weight is 12,603.1 kg. The wheelbase measures 3,002.3 mm. Ground clearance is 411.5 mm. The tank holds 210.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 202.1 l/min. The hydraulic tank holds 130.2 litres. The cooling system holds 53.4 litres. The electrical system runs on 24 V. The engine fitted is the TD 61 GB. Tyre size: 20,5R25. The Volvo BM Wheel Loader series covers 25 models. Rated output within it ranges from 47.7 to 293 hp; the L90B sits in the lower part of that range with 116.6 hp. Its immediate neighbours are the 654 below it with 114.6 hp and the 4300B above it with 119.6 hp. 91 Volvo Bm models across 9 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelTD 61 GBcorrect
Power116.6 hp (81.3 kW)correct
Rated speed2,200 rpmcorrect
Torque630correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement5,481.5 cm³correct
Aspirationturbochargedcorrect
Coolant capacity53.4 lcorrect

Dimensions and weights

Wheelbase3,002.3correct
Ground clearance411.5correct
Unladen weight12,603.1 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Tyre size20.5R25correct
System voltage24 Vcorrect

Working data

Pump flow202.1 l/mincorrect
Hydraulic oil capacity130.2 lcorrect
Fuel tank capacity210.1 lcorrect

Other data

Height3,200.4correct

Where this model stands

Power-to-weight ratio: 6.5 kW/t (81 kW / 12.6 t)

Stronger than 40% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo Bm L90B have?

The Volvo Bm L90B delivers 117 hp.

How much does the Volvo Bm L90B weigh?

The unladen weight is 12,603 kg.

What engine does the Volvo Bm L90B have?

6 cylinders, 5,482 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
