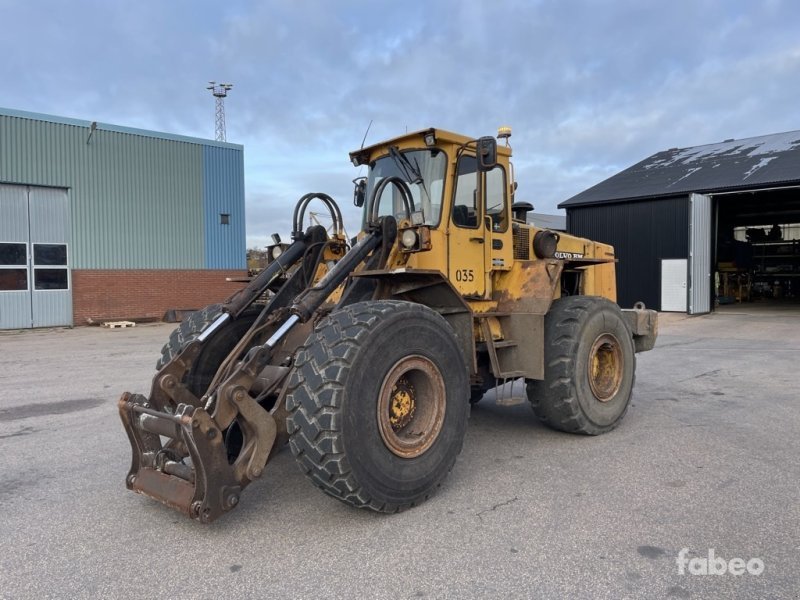

Volvo Bm L120B

Series: Volvo BM Wheel Loader

Source: https://www.technikboerse.com/marke/volvo-bm-1248

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the L120B, Volvo Bm offers a model from the Volvo BM Wheel Loader series. The engine delivers 202.8 hp (141.7 kW), has 6 cylinders, with a displacement of 6,700.7 cm³. Torque is 705 Nm. Rated speed is 2,200 rpm. The unladen weight is 15,301.9 kg. The wheelbase measures 3,200.4 mm. Ground clearance is 435.9 mm. The tank holds 255.1 litres. The gearbox has 4 forward gears. There are also 3 reverse gears. Maximum torque is reached at 1,400 rpm. The pump delivers 196.1 l/min. The hydraulic tank holds 220.3 litres. The cooling system holds 65.1 litres. The electrical system runs on 24 V. The engine fitted is the TD 71 G. Tyre size: 23,5R25. The Volvo BM Wheel Loader series covers 25 models. Rated output within it ranges from 47.7 to 293 hp; the L120B sits in the upper part of that range with 202.8 hp. Its immediate neighbours are the 1240 below it with 162.2 hp and the LM1640 above it with 218 hp. 91 Volvo Bm models across 9 series are on record. The model is listed under Wheel loaders. 22 verified figures from 1 source are on file.

Technical data

Engine

Engine modelTD 71 Gcorrect
Power202.8 hp (141.7 kW)correct
Rated speed2,200 rpmcorrect
Torque705correct
Speed at max. torque1,400 rpmcorrect
Cylinders6correct
Displacement6,700.7 cm³correct
Aspirationturbochargedcorrect
Coolant capacity65.1 lcorrect

Dimensions and weights

Wheelbase3,200.4correct
Ground clearance435.9correct
Unladen weight15,301.9 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Forward gears4correct
Reverse gears3correct
Tyre size23.5R25correct
System voltage24 Vcorrect

Working data

Pump flow196.1 l/mincorrect
Hydraulic oil capacity220.3 lcorrect
Fuel tank capacity255.1 lcorrect

Other data

Height3,346.7correct

Where this model stands

Power-to-weight ratio: 9.3 kW/t (142 kW / 15.3 t)

Stronger than 71% of the wheel loaders in the register — out of 1,253 models with a stated power figure.

Calculated from the documented figures above — not a rating.

Frequently asked questions

How much power does the Volvo Bm L120B have?

The Volvo Bm L120B delivers 203 hp.

How much does the Volvo Bm L120B weigh?

The unladen weight is 15,302 kg.

What engine does the Volvo Bm L120B have?

6 cylinders, 6,701 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
