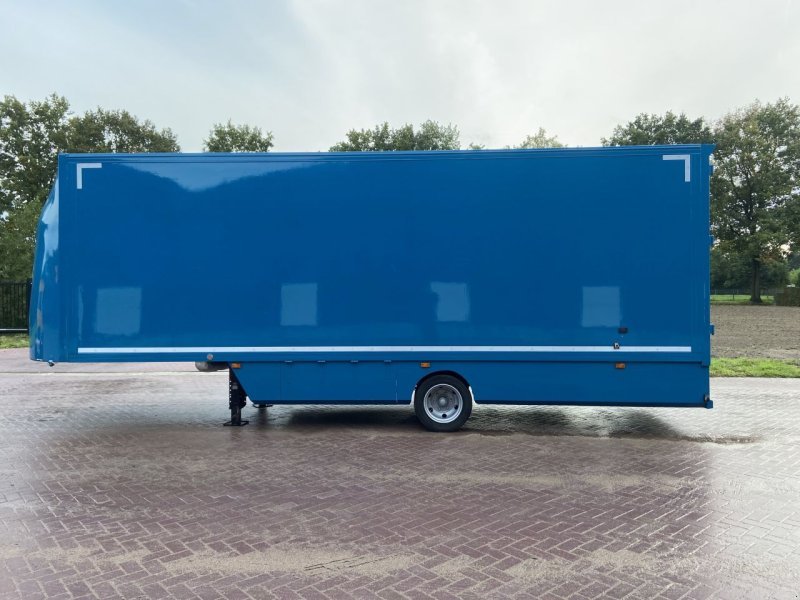

Tracon Uden TA. 1010
Built: 2002 · Series: TA
More machines from model year 2002
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tracon Uden TA – Dutch trailers from Uden in North Brabant: unladen weight 4,360 to 9,600 kg, gross weight 9,900 to 27,000 kg, lengths up to 11,710 mm
Tracon is a trailer manufacturer from Uden in the Dutch province of North Brabant. The TA range bundles several sizes under a common model designation, whose digit combinations such as 0505, 0918 and 1010 distinguish the versions within the range; the suffix S marks a further build variant. Most versions in this range operate on two or three axles, depending on the required gross weight.
Read on 3 more paragraphs
The register lists 6 versions with unladen weights from 4,360 to 9,600 kg, gross weights from 9,900 to 27,000 kg, lengths from 8,740 to 11,710 mm and widths from 2,440 to 2,600 mm. The span of gross weights thus reaches from vehicle class O3 into O4.
As a medium-to-heavy trailer for commercial transport, the TA range is operated coupled behind trucks to carry additional payload and volume for general cargo, building materials or agricultural goods; the heavier versions require a category C, C1E or CE licence depending on the gross weight of the tow vehicle. The choice between an open and an enclosed loading area depends on the type of goods being carried and the level of weather protection they need.
When buying used in this weight class, axles, the braking system and tyre condition matter, along with the chassis for cracks and corrosion, the drawbar and its mounting, and, on the multi-axle versions, even wear across all axles; spare parts and service run through the Dutch commercial-vehicle trade.
Sources: SpecCodex register, model data: Tracon Uden TA
Technical data
Dimensions and weights
| Width | 2,550 mmcorrect |
|---|---|
| Wheelbase | 525 mmcorrect |
| Unladen weight | 5,460 kgcorrect |
| Gross vehicle weight | 20,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Tracon Uden TA. 1010 weigh?
The unladen weight is 5,460 kg.
What is the gross vehicle weight of the Tracon Uden TA. 1010?
20,000 kg.
Up to what speed is the Tracon Uden TA. 1010 approved?
Approved up to 100 km/h.
When was the Tracon Uden TA. 1010 built?
Production years: 2002.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 7 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
