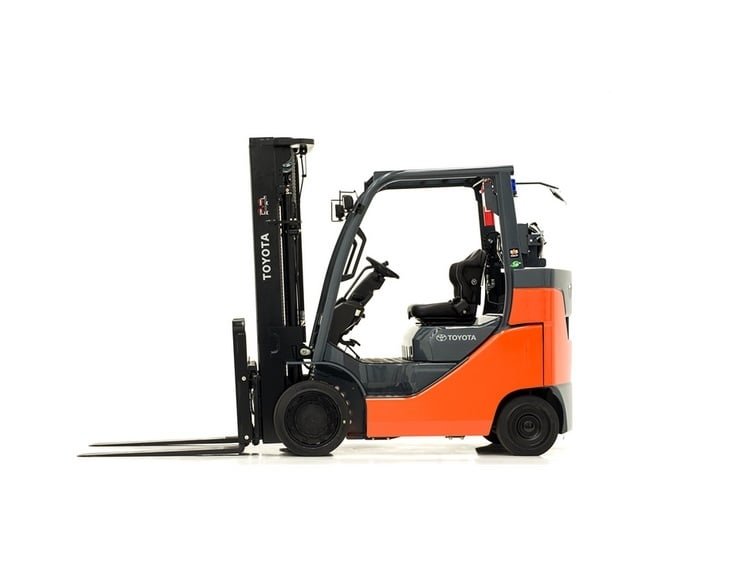

Toyota 8FGC35U-BCS

Series: Toyota Forklift

Source: https://www.lectura-specs.com/en/model/forklifts/lpg-forklif

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 8FGC35U-BCS from Toyota is part of the Toyota Forklift series. The engine has 4 cylinders, with a displacement of 3,670.7 cm³. The engine comes from TOYOTA. Rated speed is 2,350 rpm. The machine is 1,271 mm wide. The unladen weight is 5,810 kg. The wheelbase measures 1,572.8 mm. Top speed is 20.9 km/h. Maximum torque is reached at 1,400 rpm. Working pressure is 181.3 bar. The engine fitted is the 1FS. The Toyota Forklift series covers 82 models. Unladen weight within it ranges from 1,111.3 to 37,653 kg; the 8FGC35U-BCS sits at the bottom of that range with 5,810 kg. Its immediate neighbours are the 8FD35U below it with 5,780 kg and the 8FG40U above it with 6,070 kg. 2440 Toyota models across 33 series are on record. The model is listed under Forklift trucks. 13 verified figures from 1 source are on file.

Technical data

Engine

Engine makeTOYOTAcorrect
Engine model1FScorrect
Rated speed2,350 rpmcorrect
Speed at max. torque1,400 rpmcorrect
Cylinders4correct
Displacement3,670.7 cm³correct

Dimensions and weights

Width1,271correct
Wheelbase1,572.8correct
Unladen weight5,810 kgcorrect

Drivetrain and chassis

Gearbox typeautomatic gearboxcorrect
Tyre typecushion tyrescorrect
Top speed20.9 km/hcorrect

Working data

Hydraulic pressure181.3 barcorrect

Frequently asked questions

How much does the Toyota 8FGC35U-BCS weigh?

The unladen weight is 5,810 kg.

What engine does the Toyota 8FGC35U-BCS have?

4 cylinders, 3,671 cm³ displacement.

How fast does the Toyota 8FGC35U-BCS go?

Top speed is 20.9 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
