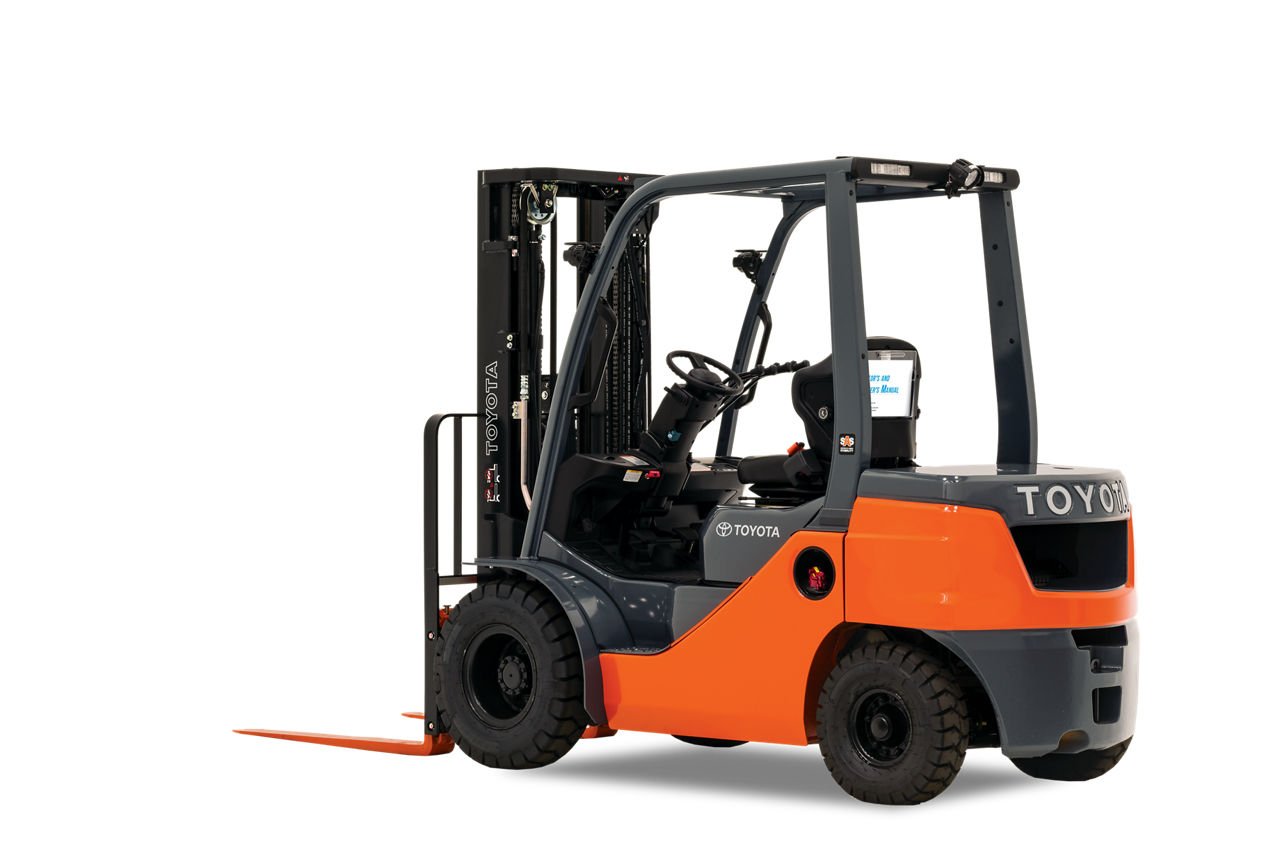

Toyota 8FG40U

Series: Toyota Forklift

Source: https://www.lectura-specs.com/en/model/forklifts/lpg-forklif

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Toyota Forklift series from Toyota includes the 8FG40U. The engine has 4 cylinders, with a displacement of 3,670.7 cm³. The engine comes from TOYOTA. Rated speed is 2,350 rpm. The unladen weight is 6,070 kg. The wheelbase measures 1,902 mm. Ground clearance is 120.1 mm. The tank holds 90.1 litres. The fuel is petrol. Maximum torque is reached at 1,600 rpm. The engine fitted is the 1FS. The Toyota Forklift series covers 82 models. Unladen weight within it ranges from 1,111.3 to 37,653 kg; the 8FG40U sits at the bottom of that range with 6,070 kg. Its immediate neighbours are the 8FGC35U-BCS below it with 5,810 kg and the 8FD40U above it with 6,150 kg. 2440 Toyota models across 33 series are on record. The model is listed under Forklift trucks. 14 verified figures from 1 source are on file.

Technical data

Engine

Engine makeTOYOTAcorrect
Engine model1FScorrect
Fuelpetrolcorrect
Rated speed2,350 rpmcorrect
Speed at max. torque1,600 rpmcorrect
Cylinders4correct
Displacement3,670.7 cm³correct

Dimensions and weights

Width1,350.3correct
Wheelbase1,902correct
Ground clearance120.1correct
Unladen weight6,070 kgcorrect

Drivetrain and chassis

Gearbox typepowershift transmissioncorrect
Tyre typepneumatic tyrescorrect
Turning radius2,660 mmcorrect

Working data

Lifting capacity4,000 kgcorrect
Lift height3,050 mmcorrect
Fuel tank capacity90.1 lcorrect

Other data

Lift speed31.4 m/mincorrect
Load centre609.6 mmcorrect
Mast tilt back12°correct
Mast tilt forward6°correct

More machines with this engine (TOYOTA 1FS, 12)

Frequently asked questions

How much does the Toyota 8FG40U weigh?

The unladen weight is 6,070 kg.

What engine does the Toyota 8FG40U have?

4 cylinders, 3,671 cm³ displacement, Gasoline.

What is the load capacity of the Toyota 8FG40U?

Load capacity is 4,000 kg at a 610 mm load centre, lift height 3,050 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
