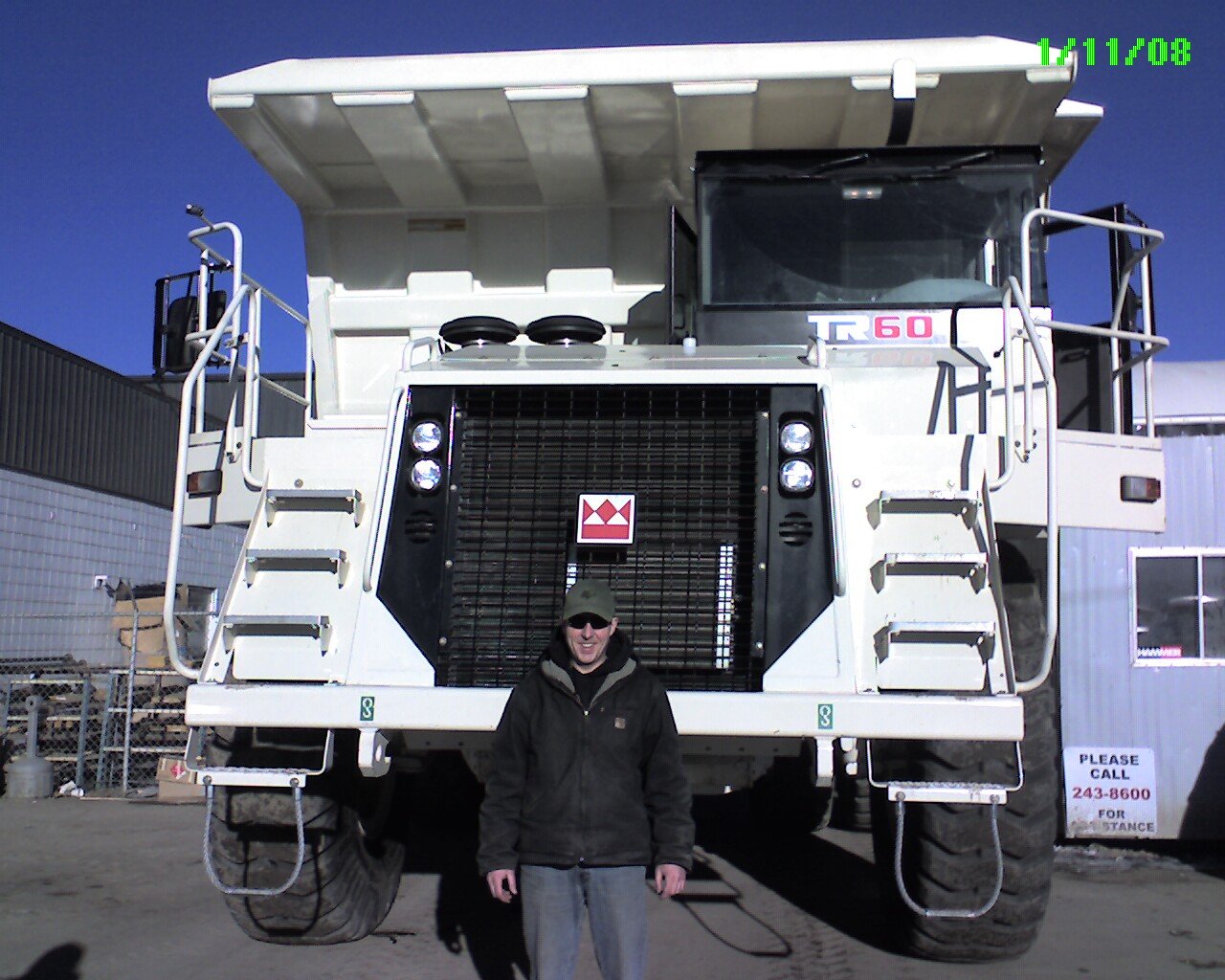

Terex TR60

Series: Terex Rock Truck

Source: https://commons.wikimedia.org/w/index.php?curid=30583542 up

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Terex TR60 belongs to the Terex Rock Truck series. The engine delivers 659 hp (481 kW), has 6 cylinders, with a displacement of 18,845.1 cm³. Torque is 3,084.5 Nm. Rated speed is 2,100 rpm. The wheelbase measures 4,102.6 mm. Ground clearance is 701 mm. Top speed is 57.6 km/h. The tank holds 606 litres. Maximum torque is reached at 1,300 rpm. The hydraulic tank holds 258.2 litres. The cooling system holds 170.3 litres. The oil fill is 66.2 litres. The electrical system runs on 24 V. The engine fitted is the QSK19-C650. Tyre size: 24,00-35 bias ply. The Terex Rock Truck series covers 21 models. Rated output within it ranges from 405.5 to 2,737.4 hp; the TR60 sits at the bottom of that range with 659 hp. Its immediate neighbours are the TR45 below it with 532.3 hp and the TR70 above it with 770.5 hp. 377 Terex models across 29 series are on record. The model is listed under Mining equipment. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine model	QSK19-C650correct
Power	659 hp (481 kW)correct
Rated speed	2,100 rpmcorrect
Torque	3,084.5correct
Speed at max. torque	1,300 rpmcorrect
Cylinders	6correct
Displacement	18,845.1 cm³correct
Aspiration	turbochargedcorrect
Coolant capacity	170.3 lcorrect
Engine oil capacity	66.2 lcorrect

Dimensions and weights

Length	9,101.3correct
Width	5,001.8correct
Wheelbase	4,102.6correct
Ground clearance	701correct

Drivetrain and chassis

Gearbox type	Allison M6610ARcorrect
Tyre size	24.00-35 bias plycorrect
Top speed	57.6 km/hcorrect
System voltage	24 Vcorrect

Working data

Hydraulic oil capacity	258.2 lcorrect
Fuel tank capacity	606 lcorrect

Frequently asked questions

How much power does the Terex TR60 have?

The Terex TR60 delivers 659 hp.

What engine does the Terex TR60 have?

6 cylinders, 18,845 cm³ displacement.

How fast does the Terex TR60 go?

Top speed is 57.6 km/h.

What are the dimensions of the Terex TR60?

9,101 mm × 5,002 mm.

What to check before buying

Check the hour meter against the service records — a replaced instrument is the most common gap.
Compare the data plate and chassis number with the papers.
Load the hydraulics and watch for sag.
Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
