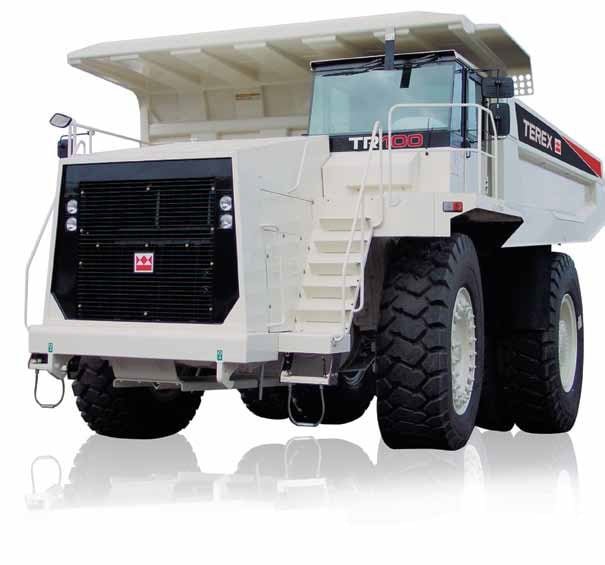

Terex TR100

Series: Terex Rock Truck

Source: https://www.lectura-specs.com/en/model/construction-machiner

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Terex TR100 is a model in the Terex Rock Truck series. The engine delivers 1,064.6 hp (703.2 kW), has 16 cylinders, with a displacement of 31,872.8 cm³. Torque is 4,630.1 Nm. Rated speed is 2,100 rpm. The wheelbase measures 4,602.5 mm. Ground clearance is 801.6 mm. Top speed is 48.6 km/h. The tank holds 1,275.3 litres. Maximum torque is reached at 1,350 rpm. The hydraulic tank holds 557.2 litres. The cooling system holds 276.3 litres. The oil fill is 108.3 litres. The electrical system runs on 24 V. The engine fitted is the MTU 16V-2000TA DDEC. Tyre size: 27,00-49 (48 Pr) e-4. The Terex Rock Truck series covers 21 models. Rated output within it ranges from 405.5 to 2,737.4 hp; the TR100 sits in the lower part of that range with 1,064.6 hp. Its immediate neighbours are the TR70 below it with 770.5 hp and the MT3300 above it with 1,368.7 hp. 377 Terex models across 29 series are on record. The model is listed under Mining equipment. 21 verified figures from 1 source are on file.

Technical data

Engine

Engine modelMTU 16V-2000TA DDECcorrect
Power1,064.6 hp (703.2 kW)correct
Rated speed2,100 rpmcorrect
Torque4,630.1correct
Speed at max. torque1,350 rpmcorrect
Cylinders16correct
Displacement31,872.8 cm³correct
Aspirationturbochargedcorrect
Coolant capacity276.3 lcorrect
Engine oil capacity108.3 lcorrect

Dimensions and weights

Length10,802.1correct
Width5,900.9correct
Wheelbase4,602.5correct
Ground clearance801.6correct

Drivetrain and chassis

Gearbox typeAllison M8610correct
Tyre size27.00-49 (48 Pr) e-4correct
Top speed48.6 km/hcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity557.2 lcorrect
Fuel tank capacity1,275.3 lcorrect

Frequently asked questions

How much power does the Terex TR100 have?

The Terex TR100 delivers 1,065 hp.

What engine does the Terex TR100 have?

16 cylinders, 31,873 cm³ displacement.

How fast does the Terex TR100 go?

Top speed is 48.6 km/h.

What are the dimensions of the Terex TR100?

10,802 mm × 5,901 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
