Start › Motor graders › Terex › TG150TA-3

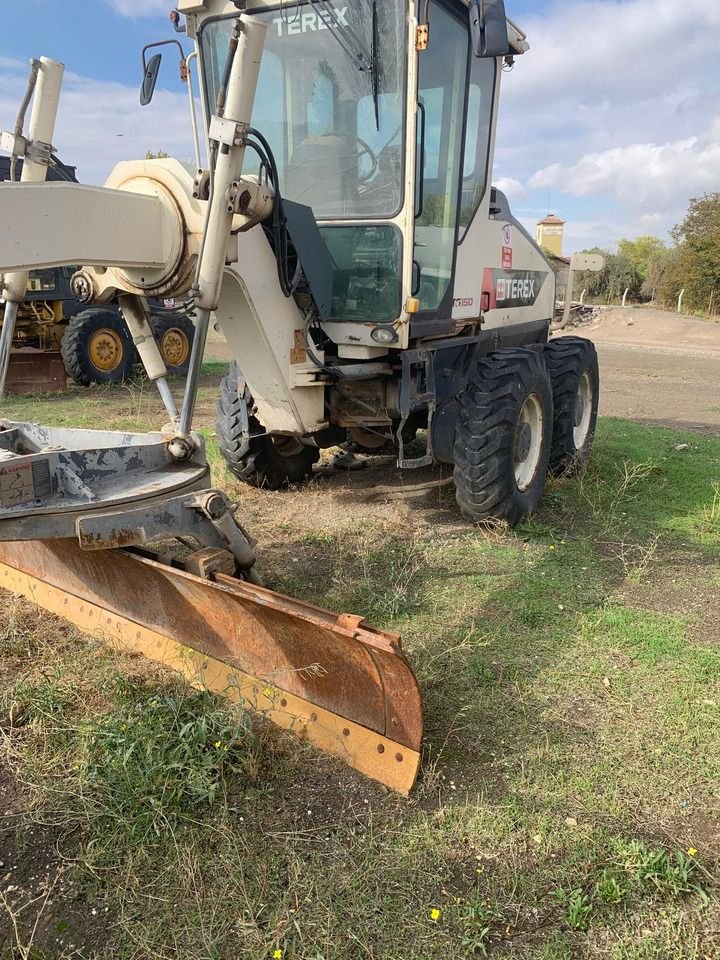

Terex TG150TA-3

Series: Terex Motor Grader

Source: https://www.truck1.eu/construction-machinery/graders/terex-t

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The TG150TA-3 from Terex is part of the Terex Motor Grader series. The engine delivers 165.3 hp, with a displacement of 5,997.7 cm³. The machine is 9,397 mm long. The wheelbase measures 5,922.3 mm. The tank holds 310 litres. The hydraulic tank holds 378.5 litres. Working pressure is 184 bar. The cooling system holds 45 litres. The electrical system runs on 24 V. Tyre size: 13,00 -24 TG SGG-2A Goodyear. The Terex Motor Grader series covers 4 models. Rated output within it ranges from 165.3 to 187.6 hp; the TG150TA-3 sits at the bottom of that range with 165.3 hp. Its immediate neighbours are the TG190TA-3 above it with 178.4 hp. 377 Terex models across 29 series are on record. The model is listed under Motor graders. 12 verified figures from 1 source are on file.

Technical data

Engine

Power165.3 hpcorrect
Displacement5,997.7 cm³correct
Aspirationdieselcorrect
Coolant capacity45 lcorrect

Dimensions and weights

Length9,397correct
Wheelbase5,922.3correct

Drivetrain and chassis

Gearbox typeAuto Power Shift Tansmission With torque Convertercorrect
Tyre size13.00 -24 TG SGG-2A Goodyearcorrect
System voltage24 Vcorrect

Working data

Hydraulic oil capacity378.5 lcorrect
Hydraulic pressure184correct
Fuel tank capacity310 lcorrect

Frequently asked questions

How much power does the Terex TG150TA-3 have?

The Terex TG150TA-3 delivers 165 hp.

What engine does the Terex TG150TA-3 have?

5,998 cm³ displacement.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
