TCM FD30C6H

Series: TCM Forklift

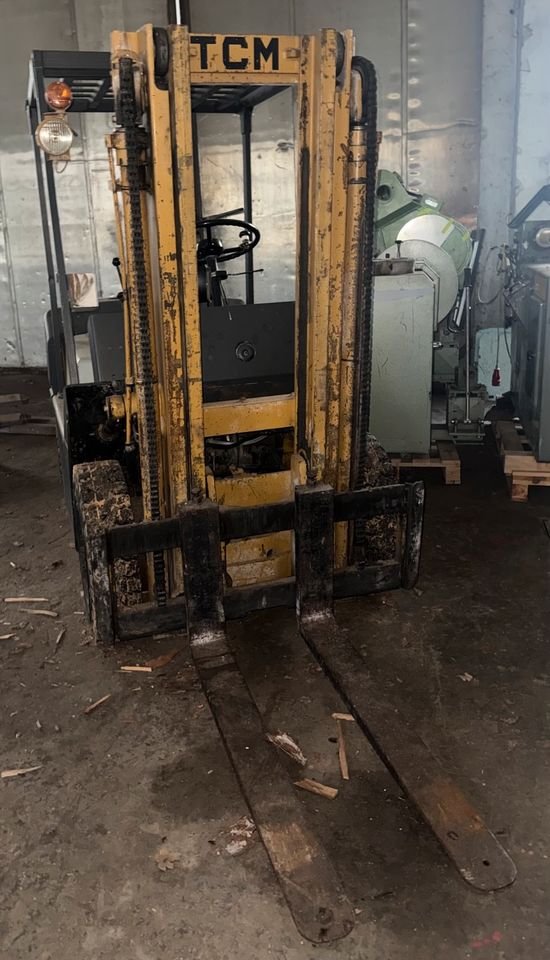

The photo shows the FHG18T2 from the same series. Source: https://www.kleinanzeigen.de/s-anzeige/gabelstapler-tcm-dies

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

With the FD30C6H, TCM offers a model from the TCM Forklift series. The engine has 4 cylinders, with a displacement of 3,318.4 cm³. Rated speed is 2,500 rpm. The unladen weight is 4,340 kg. The wheelbase measures 1,700.8 mm. Ground clearance is 140.2 mm. Top speed is 19.6 km/h. The fuel is diesel. Maximum torque is reached at 1,800 rpm. The engine fitted is the V3300. The TCM Forklift series covers 68 models. Unladen weight within it ranges from 1,587.6 to 225,100 kg; the FD30C6H sits at the bottom of that range with 4,340 kg. Its immediate neighbours are the FD30T7 below it with 4,309.1 kg and the FHD30T6 above it with 4,340.9 kg. 160 TCM models across 10 series are on record. The model is listed under Forklift trucks. 12 verified figures from 1 source are on file.

Technical data

Engine

Engine modelV3300correct
Fueldieselcorrect
Rated speed2,500 rpmcorrect
Speed at max. torque1,800 rpmcorrect
Cylinders4correct
Displacement3,318.4 cm³correct

Dimensions and weights

Width1,225.3correct
Wheelbase1,700.8correct
Ground clearance140.2correct
Unladen weight4,340 kgcorrect

Drivetrain and chassis

Tyre typeFront 28X9-15-12PR Rear 6.50-10-10PRcorrect
Top speed19.6 km/hcorrect

Frequently asked questions

How much does the TCM FD30C6H weigh?

The unladen weight is 4,340 kg.

What engine does the TCM FD30C6H have?

4 cylinders, 3,318 cm³ displacement, diesel.

How fast does the TCM FD30C6H go?

Top speed is 19.6 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 12 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
