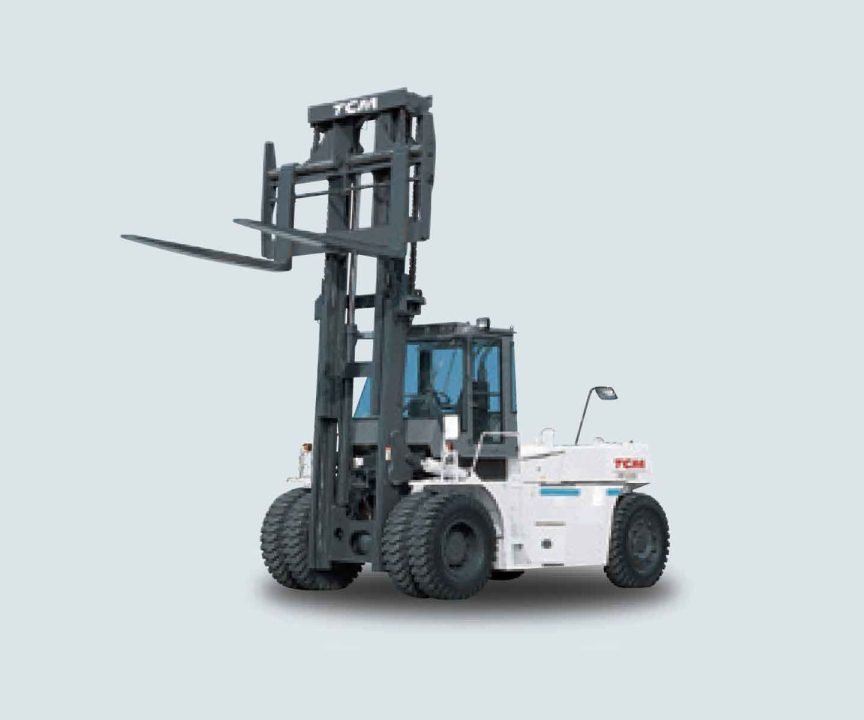

TCM FD230-2

Series: TCM Forklift

Source: https://www.lectura-specs.com/en/model/forklifts/rough-terra

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The FD230-2 from TCM is part of the TCM Forklift series. The engine with a displacement of 6,494.2 cm³. Rated speed is 2,200 rpm. The unladen weight is 30,760 kg. The wheelbase measures 3,651.5 mm. Ground clearance is 290.1 mm. Top speed is 32 km/h. The fuel is diesel. Maximum torque is reached at 1,800 rpm. The engine fitted is the 6BG1T. The TCM Forklift series covers 68 models. Unladen weight within it ranges from 1,587.6 to 225,100 kg; the FD230-2 sits at the bottom of that range with 30,760 kg. Its immediate neighbours are the FD200-2 below it with 27,260 kg and the FD370Z5 above it with 59,000 kg. 160 TCM models across 10 series are on record. The model is listed under Forklift trucks. 11 verified figures from 1 source are on file.

Technical data

Engine

Engine model6BG1Tcorrect
Fueldieselcorrect
Rated speed2,200 rpmcorrect
Speed at max. torque1,800 rpmcorrect
Displacement6,494.2 cm³correct

Dimensions and weights

Width3,060.2correct
Wheelbase3,651.5correct
Ground clearance290.1correct
Unladen weight30,760 kgcorrect

Drivetrain and chassis

Tyre typepneumatic tyrescorrect
Top speed32 km/hcorrect

Frequently asked questions

How much does the TCM FD230-2 weigh?

The unladen weight is 30,760 kg.

What engine does the TCM FD230-2 have?

6,494 cm³ displacement, diesel.

How fast does the TCM FD230-2 go?

Top speed is 32 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Load the hydraulics and watch for sag.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.

Looking for this machine?
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
Need parts for this model?
We ask the suppliers and come back with price and lead time.
Request spare parts →

This page carries 11 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.

Missing a figure you were looking for? Report it →

Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
