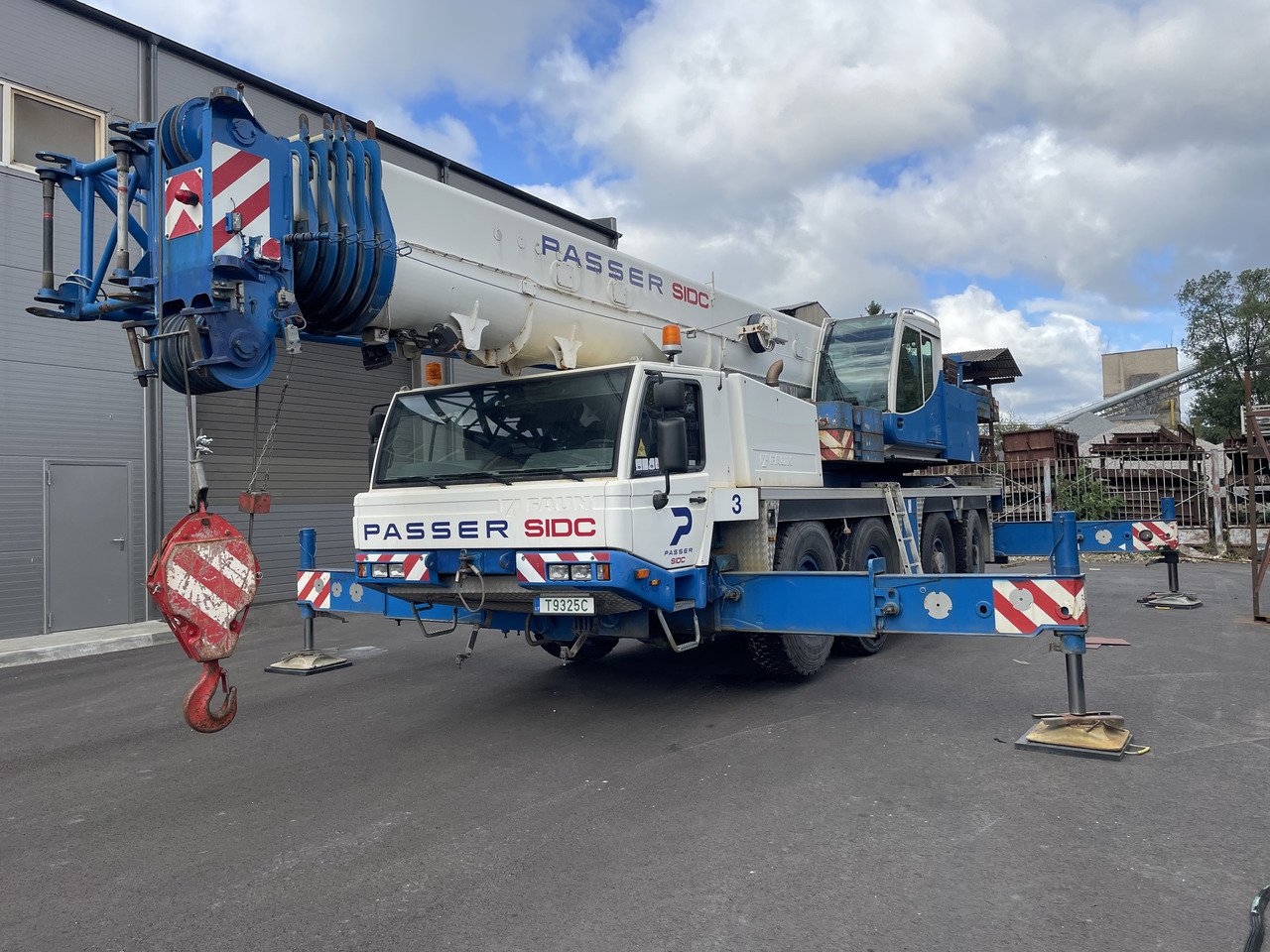

Tadano ATF90G-4

Series: Tadano All Terrain Crane

Source: https://www.truck1.eu/construction-machinery/mobile-cranes/f

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Tadano ATF90G-4 belongs to the Tadano All Terrain Crane series. The engine delivers 176.4 hp (319.2 kW), has 6 cylinders, with a displacement of 11,946.2 cm³. Torque is 677.9 Nm. Rated speed is 1,800 rpm. The machine is 13,110 mm long and 2,750 mm wide. The wheelbase measures 5,840 mm. The gross vehicle weight is 48,000 kg. The gearbox has 12 forward gears. There are also 2 reverse gears. The machine runs on 8 wheels. Maximum torque is reached at 1,300 rpm. The electrical system runs on 24 V. Tyre size: 16,00R25. The Tadano All Terrain Crane series covers 20 models. Rated output within it ranges from 176.4 to 633.7 hp; the ATF90G-4 sits at the bottom of that range with 176.4 hp. Its immediate neighbours are the AR300E above it with 225.1 hp. Gross vehicle weight within it ranges from 48,000 to 60,000 kg; here the ATF90G-4 sits at the bottom of that range with 48,000 kg. 108 Tadano models across 7 series are on record.

Tadano all-terrain cranes ATF 30 to ATF 400G-6 – Faun heritage from Lauf an der Pegnitz: the type logic capacity-G-axles, 130 to 324 kW, up to 400 t

The ATF cranes are the European face of Tadano: ATF stands for All Terrain Faun, because the cranes are built at the Lauf an der Pegnitz plant near Nuremberg, which Tadano took over in 1990 from the Franconian commercial-vehicle maker Faun. Since 2019 Demag Mobile Cranes of Zweibrücken has also belonged to Tadano; the two programmes were merged and younger models carry the AC designation. The register shows the classic ATF generation: the number gives the maximum capacity in tonnes, the G the generation with Tadano control and Euromot engines, the number after the hyphen the axle count – an ATF 100G-4 is a 100-tonner on four axles, an ATF 400G-6 a 400-tonner on six axles. Suffixes such as XL mark the long-boom version, RTF the rough-terrain cranes without road approval and AR the Japanese all-terrain models.

Read on 3 more paragraphs

In the register the models run from 130.5 to 324.4 kW from six- and eight-cylinders of 7,201 to 15,928 cm³, torque from 472 to 1,730 Nm at rated speeds of 1,700 to 2,300 rpm, service weights from 23,950 to 59,999 kg and gross weights from 48,000 to 60,000 kg – the twelve-tonne axle load is the limit European roads set for cranes – lengths from 13,110 to 14,930 mm and widths from 2,750 to 2,800 mm.

All-terrain cranes combine road travel at 80 km/h with off-road capability through all-wheel drive and all-wheel steering; Tadano's hallmarks are the single-engine drive on the medium models (one engine for travel and crane operation) and the Lift Adjuster against load swing.

Used ATFs are traded worldwide. When buying, operating hours separated into travel and crane operation, the condition of telescopic boom and locking, slew ring, outriggers, ropes and the inspection history under the crane rules of the respective country are what count.

Sources: Kennwerte der Modelle Tadano All-Terrain-Krane, Tadano (Hersteller)

Technical data

Engine

Power176.4 hp (319.2 kW)correct
Rated speed1,800 rpmcorrect
Torque677.9correct
Speed at max. torque1,300 rpmcorrect
Cylinders6correct
Displacement11,946.2 cm³correct

Dimensions and weights

Length13,110 mmcorrect
Width2,750 mmcorrect
Wheelbase5,840 mmcorrect
Unladen weight48,008.2 kgcorrect
Gross vehicle weight48,000 kgcorrect

Drivetrain and chassis

Gearbox typeZF AS-Tronic 12AS2302 fully automatic gearboxcorrect
Forward gears12correct
Reverse gears2correct
Wheels8correct
Tyre size16.00R25correct

Other data

System voltage24 Vcorrect

Frequently asked questions

How much power does the Tadano ATF90G-4 have?

The Tadano ATF90G-4 delivers 176 hp.

How much does the Tadano ATF90G-4 weigh?

The unladen weight is 48,008 kg.

What is the gross vehicle weight of the Tadano ATF90G-4?

48,000 kg.

What engine does the Tadano ATF90G-4 have?

6 cylinders, 11,946 cm³ displacement.

What are the dimensions of the Tadano ATF90G-4?

13,110 mm × 2,750 mm.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Check the weights in the papers against the figures here — attachments change them.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
