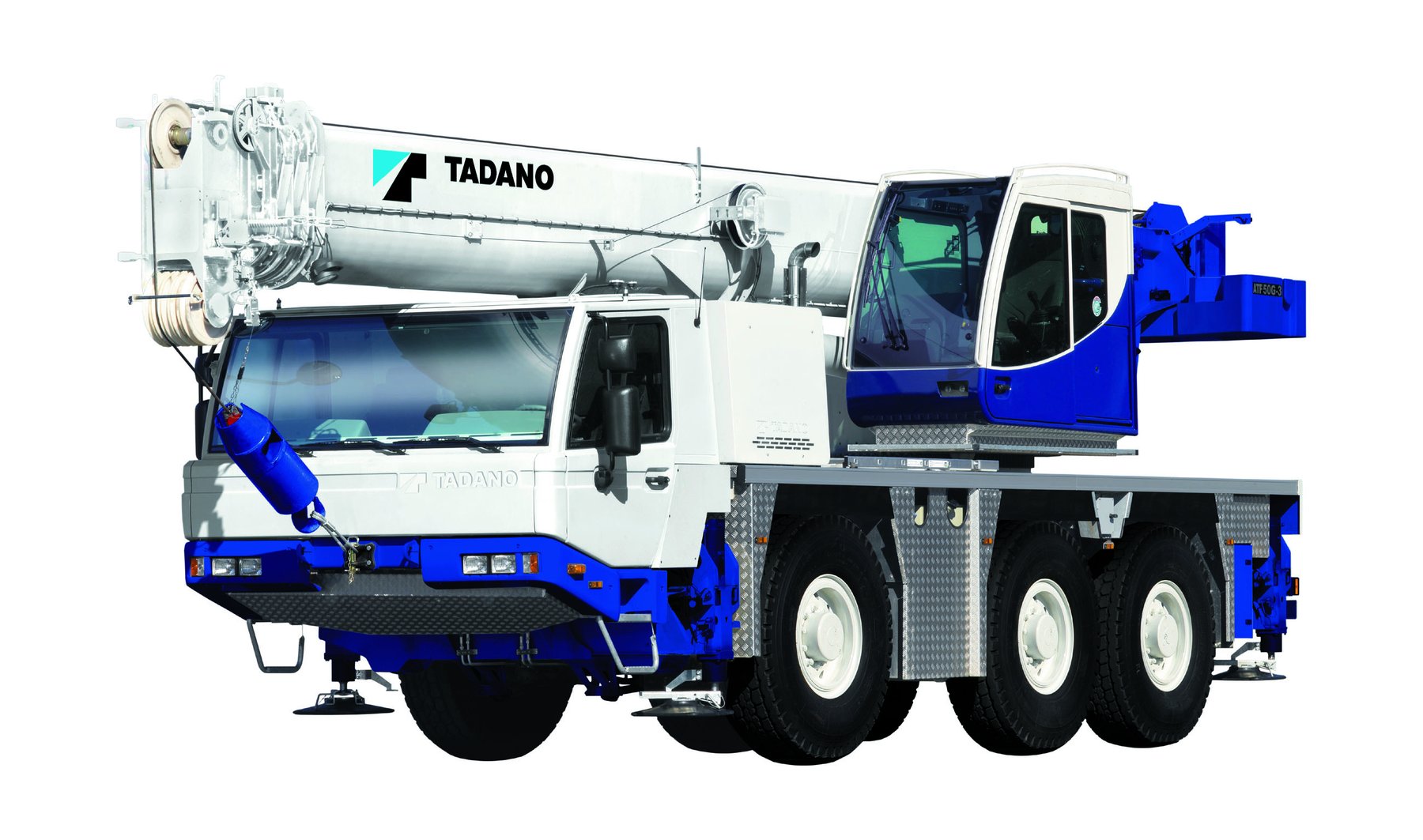

Tadano ATF50G-3
Series: Tadano All Terrain Crane
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Tadano all-terrain cranes ATF 30 to ATF 400G-6 – Faun heritage from Lauf an der Pegnitz: the type logic capacity-G-axles, 130 to 324 kW, up to 400 t
The ATF cranes are the European face of Tadano: ATF stands for All Terrain Faun, because the cranes are built at the Lauf an der Pegnitz plant near Nuremberg, which Tadano took over in 1990 from the Franconian commercial-vehicle maker Faun. Since 2019 Demag Mobile Cranes of Zweibrücken has also belonged to Tadano; the two programmes were merged and younger models carry the AC designation. The register shows the classic ATF generation: the number gives the maximum capacity in tonnes, the G the generation with Tadano control and Euromot engines, the number after the hyphen the axle count – an ATF 100G-4 is a 100-tonner on four axles, an ATF 400G-6 a 400-tonner on six axles. Suffixes such as XL mark the long-boom version, RTF the rough-terrain cranes without road approval and AR the Japanese all-terrain models.
Read on 3 more paragraphs
In the register the models run from 130.5 to 324.4 kW from six- and eight-cylinders of 7,201 to 15,928 cm³, torque from 472 to 1,730 Nm at rated speeds of 1,700 to 2,300 rpm, service weights from 23,950 to 59,999 kg and gross weights from 48,000 to 60,000 kg – the twelve-tonne axle load is the limit European roads set for cranes – lengths from 13,110 to 14,930 mm and widths from 2,750 to 2,800 mm.
All-terrain cranes combine road travel at 80 km/h with off-road capability through all-wheel drive and all-wheel steering; Tadano's hallmarks are the single-engine drive on the medium models (one engine for travel and crane operation) and the Lift Adjuster against load swing.
Used ATFs are traded worldwide. When buying, operating hours separated into travel and crane operation, the condition of telescopic boom and locking, slew ring, outriggers, ropes and the inspection history under the crane rules of the respective country are what count.
Sources: Kennwerte der Modelle Tadano All-Terrain-Krane, Tadano (Hersteller)
Technical data
Engine
| Power | 330.5 hp (243.1 kW)correct |
|---|---|
| Rated speed | 2,200 rpmcorrect |
| Torque | 1,300.1correct |
| Speed at max. torque | 1,600 rpmcorrect |
| Displacement | 7,200.5 cm³correct |
Dimensions and weights
| Unladen weight | 36,001.6 kgcorrect |
|---|
Drivetrain and chassis
| Gearbox type | full automatic gearboxcorrect |
|---|---|
| Forward gears | 12correct |
| Reverse gears | 2correct |
| Tyre size | 14.00R25correct |
Other data
| System voltage | 24 Vcorrect |
|---|
Where this model stands
Power-to-weight ratio: 6.8 kW/t (243 kW / 36 t)
Stronger than 66% of the mobile & rough terrain cranes in the register — out of 575 models with a stated power figure.
Calculated from the documented figures above — not a rating.
Frequently asked questions
How much power does the Tadano ATF50G-3 have?
The Tadano ATF50G-3 delivers 330 hp.
How much does the Tadano ATF50G-3 weigh?
The unladen weight is 36,002 kg.
What engine does the Tadano ATF50G-3 have?
7,200 cm³ displacement.
What to check before buying
- Check the hour meter against the service records — a replaced instrument is the most common gap.
- Compare the data plate and chassis number with the papers.
- Check the weights in the papers against the figures here — attachments change them.
- Ask about parts availability for this build year — the running costs hang on it.
A general list for this type of machine — no substitute for an inspection or an appraiser.
