Stellantis 50D/5

Built: 2015-2015 · Series: 50D

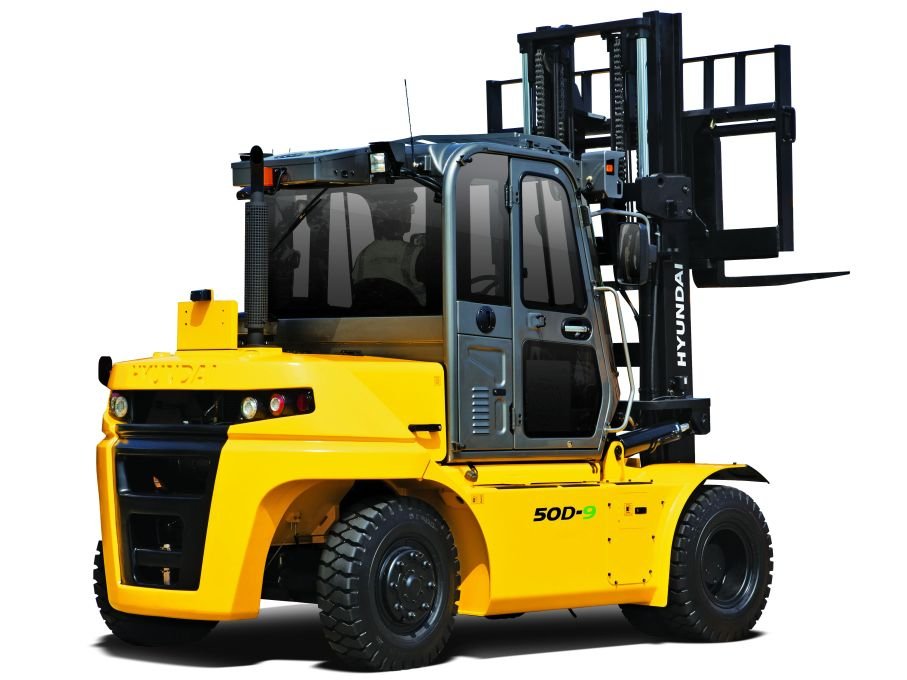

The photo shows the 50D/9 from the same series. Source: https://www.lectura-specs.com/en/model/forklifts/diesel-fork

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 50D/5 comes from Stellantis. Production: 2015. The fuel is 7-15 ppm Ultra Low Sulfur Diesel. The rated output is 40 kW. The engine is turbocharged. The engine meets emissions stage Tier 4 (Final or Phase In). Fuel reaches the combustion chamber through direct injection. The charge air is air-cooled. It is a four-stroke diesel engine. The cylinders are arranged in line. Rated output across the Stellantis range ranges from 34 to 80 kW; the 50D/5 sits at the bottom of that range with 40 kW. Its immediate neighbours are the 50D/6 below it with 34 kW and the 50D/4 above it with 41 kW. 14 Stellantis models are on record. The model is listed under Non-road diesel engines. 26 verified figures from 1 source are on file.

Technical data

Engine

Engine code50D/5correct
Engine familyFFTGL02.2R3N; GFTGL02.2R3N; JFTGL02.2R3C; MFTGL02.2R3N; MFTGL03.0R3C; NFTGL02.2R3N; NFTGL03.0R3C; KFTGL02.2R3C; LFTGL03.0R3C; TFTGL02.2R3N; RFTGL02.2R3N; HFTGL02.2R3N; SFTGL02.2R3N; JFTGL02.2R3N; SFTGL03.0R3C; HFTGL02.2R3C; KFTGL02.2R3N; LFTGL02.2R3N; PFTGL02.2R3N; PFTGL03.0R3C; TFTGL03.0R3C; GFTGL02.2R3C; RFTGL03.0R3Ccorrect
Engine familiesFFTGL02.2R3N; GFTGL02.2R3N; JFTGL02.2R3C; MFTGL02.2R3N; MFTGL03.0R3C; NFTGL02.2R3N; NFTGL03.0R3C; KFTGL02.2R3C; LFTGL03.0R3C; TFTGL02.2R3N; RFTGL02.2R3N; HFTGL02.2R3N; SFTGL02.2R3N; JFTGL02.2R3N; SFTGL03.0R3C; HFTGL02.2R3C; KFTGL02.2R3N; LFTGL02.2R3N; PFTGL02.2R3N; PFTGL03.0R3C; TFTGL03.0R3C; GFTGL02.2R3C; RFTGL03.0R3Ccorrect
Fuel7-15 ppm Ultra Low Sulfur Dieselcorrect
Rated output40 kWcorrect
Power band37<=kW<56correct
Rated speed2,600 rpmcorrect
Maximum torque180 N·mcorrect
Speed at max. torque1,800 rpmcorrect
Cylinders3correct
Cylinder layoutin linecorrect
Bore94 mmcorrect
Stroke107 mmcorrect
Operating cyclefour-stroke dieselcorrect
Injectiondirect injectioncorrect
Aspirationturbochargedcorrect
Turbocharger typeFixed waste gate turbochargercorrect
Charge-air coolingaircorrect
Emissions stageTier 4 (Final or Phase In)correct

Origin and approval

Version50D/5correct
Built from2015correct
Built to2026correct
Model year from2015correct
Model year to2026correct

Frequently asked questions

How much power does the Stellantis 50D/5 have?

The Stellantis 50D/5 delivers 40 kW.

When was the Stellantis 50D/5 built?

Production years: 2015.
