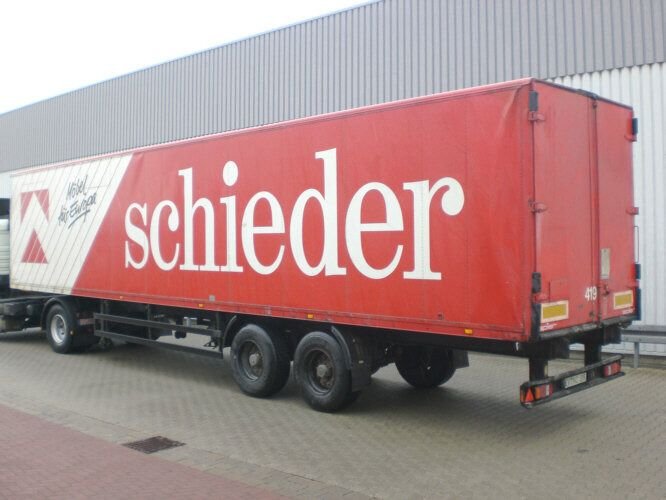

Spier SGL 2/90
Built: 1995-1995 · Series: SGL
More machines from model year 1995
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Spier SGL – semi-trailers from Steinheim: unladen weight 6,440 to 11,330 kg, gross weight 20,000 to 36,000 kg, length 13,750 to 13,900 mm, width 2,550 to 2,600 mm
Spier is a semi-trailer manufacturer based in Steinheim. The SGL range gathers the company's semi-trailers in the register; the type designations SGL 110, SGL 210 and SGL 390 use three-digit numbers to distinguish different builds within the same basic length.
Read on 3 more paragraphs
The register lists here 6 versions with unladen weights from 6,440 to 11,330 kg, gross weights from 20,000 to 36,000 kg, lengths from 13,750 to 13,900 mm and widths from 2,550 to 2,600 mm.
With lengths close to 14 metres and a wide weight span running from just over six to more than eleven tonnes, the SGL range covers both lighter versions for bulky, light goods and heavier builds for denser loads. Semi-trailers of this kind are common in European scheduled and long-haul transport, running between hauliers and distribution centres behind different tractor units, and their weight span lets them be dispatched for different cargo densities.
When buying used, check the condition of the chassis and side rails, the axles, braking system and suspension, and the function of the landing legs. On the heavier versions it is also worth checking the tyre tread and brake linings, on curtainsider models the tightness of the tarpaulin and condition of the lashing rails; rust on the cross members and underrun protection also reveals how the trailer was stored and used by previous operators.
Sources: Kennwerte der Modelle Spier SGL
Technical data
Dimensions and weights
| Length | 13,750 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Wheelbase | 8,700 mmcorrect |
| Unladen weight | 6,460 kgcorrect |
| Gross vehicle weight | 29,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Spier SGL 2/90 weigh?
The unladen weight is 6,460 kg.
What is the gross vehicle weight of the Spier SGL 2/90?
29,000 kg.
Up to what speed is the Spier SGL 2/90 approved?
Approved up to 100 km/h.
What are the dimensions of the Spier SGL 2/90?
13,750 mm × 2,550 mm.
When was the Spier SGL 2/90 built?
Production years: 1995.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
We do not sell machines. We ask the dealers who carry this model and come back with price and lead time.
Request a quote →
We ask the suppliers and come back with price and lead time.
Request spare parts →
This page carries 8 individual figures for this model. They come from 1 recorded source; every figure can be traced there. What we cannot document is not here — we leave gaps open rather than estimate them.
The technical data on this page comes from official vehicle registration records (RDW/Traficom), not from the manufacturer.
Missing a figure you were looking for? Report it →
Know this machine better? Have a photo, a manual, or know that a figure is wrong? Add it to the register →
