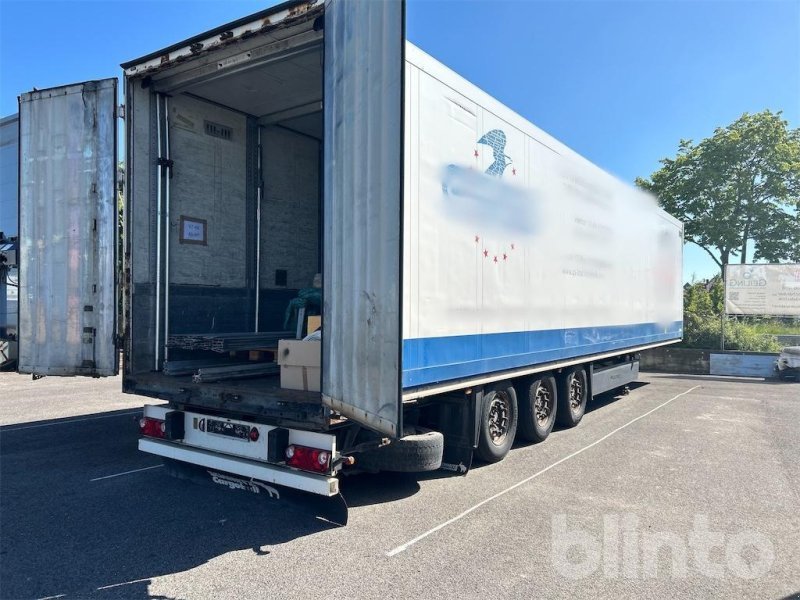

Schmitz SK0-24
Built: 2011 · Series: SK024
More machines from model year 2011
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schmitz SK024 – heavy semi-trailers from Horstmar/Altenberge: unladen weight 7,290 to 9,330 kg, gross weight 39,000 to 42,000 kg, length 13,890 to 14,000 mm
Schmitz Cargobull lists a range of heavy semi-trailers from its Horstmar/Altenberge production under the designation SK024 in the register. The model name SK024/L2ZG-13.4 FP45 COOL shows with the suffix COOL that some versions of the range are built for refrigerated loads.
Read on 3 more paragraphs
The register lists here 6 versions with unladen weights from 7,290 to 9,330 kg, gross weights from 39,000 to 42,000 kg, lengths from 13,890 to 14,000 mm and widths from 2,550 to 2,600 mm.
With lengths close to the European maximum for articulated combinations and gross weights up to 42 tonnes, the SK024 range is among the heaviest semi-trailer types in the register and is built for long-haul work at maximum payload, as is common in European haulage between major transshipment hubs. Such semi-trailers typically run in rotation behind several tractor units and cover correspondingly high mileages.
When buying used, check the chassis and side rails for cracking around the axle suspension, the condition of the braking system and air suspension, the operation of the cooling unit on equipped models, and the kingpin and landing legs. On the long versions it is also worth checking the underrun protection mountings, the condition of the floor, possible corrosion around the rear-axle wheel arches, and on units with a cooling aggregate its recorded running hours.
Sources: SpecCodex register, model data: Schmitz SK024, Schmitz Cargobull (manufacturer)
Technical data
Dimensions and weights
| Length | 14,000 mmcorrect |
|---|---|
| Width | 2,600 mmcorrect |
| Wheelbase | 8,900 mmcorrect |
| Unladen weight | 8,650 kgcorrect |
| Gross vehicle weight | 42,000 kgcorrect |
Drivetrain and chassis
| Top speed | 100 km/hcorrect |
|---|
Frequently asked questions
How much does the Schmitz SK0-24 weigh?
The unladen weight is 8,650 kg.
What is the gross vehicle weight of the Schmitz SK0-24?
42,000 kg.
Up to what speed is the Schmitz SK0-24 approved?
Approved up to 100 km/h.
What are the dimensions of the Schmitz SK0-24?
14,000 mm × 2,600 mm.
When was the Schmitz SK0-24 built?
Production years: 2011.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
