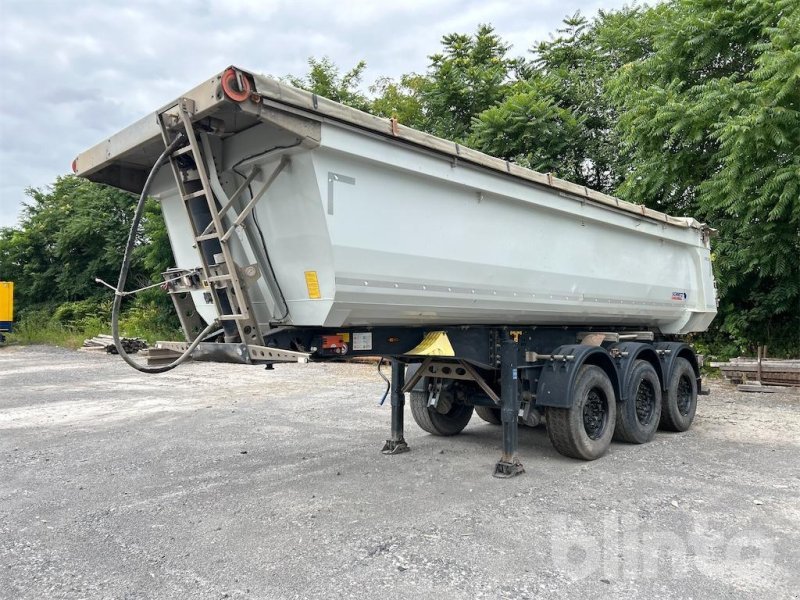

Schmitz SCB*S3B

Built: 2012-2019 · Series: Trailers over 10 t (Class O4)

More machines from model year 2012

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The Schmitz SCB*S3B is a model in the Trailers over 10 t (Class O4) series. Production: 2012-2019. The machine is 14,040 mm long and 2,600 mm wide. The unladen weight is 9,480 kg. The wheelbase measures 9,070 mm. Top speed is 100 km/h. The gross vehicle weight is 42,000 kg. The machine runs on 6 wheels. The Trailers over 10 t (Class O4) series covers 198 models. Unladen weight within it ranges from 2,500 to 27,110 kg; the SCB*S3B sits in the lower part of that range with 9,480 kg. Its immediate neighbours are the SKO20/LZG-13.4 FP45 COOL below it with 9,460 kg and the SK0F27 above it with 9,580 kg. Gross vehicle weight within it ranges from 16,000 to 47,000 kg; here the SCB*S3B sits in the upper part of that range with 42,000 kg. 505 Schmitz models across 19 series are on record.

Schmitz trailers over 10 t (Class O4) – Schmitz Cargobull, one of Europe's largest semi-trailer builders, with curtainsider codes such as GOTHA and ACF/AWF type series: 198 versions, gross weights 16,000 to 47,000 kg

Class O4 groups together, according to registration data from the Netherlands and Finland, all trailers with a permissible gross weight over 10 tonnes. Schmitz Cargobull, headquartered in Altenberge in Münsterland, is one of Europe's largest semi-trailer manufacturers, building curtainsider, refrigerated, tank and silo vehicles across several plants. The model name GOTHA in the register refers to the plant of that name in Thuringia, which mainly builds curtainsider trailers; type codes such as ACF, AWF, SCB or S3 SD 22 ECS denote individual series and equipment variants of the standard range.

Read on 3 more paragraphs

The register lists 198 versions with unladen weights from 2,500 to 27,110 kg and permissible gross weights from 16,000 to 47,000 kg. Lengths are recorded for 185 of the 198 vehicles and range from 5,250 to 14,070 mm, width for all 198 versions from 2,350 to 2,600 mm.

With a consistently standardised range of curtainsider, refrigerated and rigid trailer series, Schmitz Cargobull supplies hauliers right across Europe, setting one of the reference points in the semi-trailer market alongside Krone and Kögel; the uniformly high minimum gross weights from 16 tonnes upward in the register show that almost exclusively full-scale semi-trailers, not light trailers, are recorded here.

For a used trailer, what matters is the condition and mileage of the axles, usually BPW or SAF, the function of the EBS braking system and air suspension, the tightness and condition of the curtainsider tarpaulin including its tensioning mechanism, and frame corrosion on chassis rails. For refrigerated trailers, also check the condition of the refrigeration unit and insulation, for tank and silo variants the tightness of the vessels; Schmitz Cargobull's dense workshop network makes parts supply notably easier than with smaller manufacturers.

Sources: SpecCodex register, model data: Schmitz, Schmitz Cargobull, Zulassungsdaten RDW (Niederlande)

Technical data

Dimensions and weights

Length14,040 mmcorrect
Width2,600 mmcorrect
Wheelbase9,070 mmcorrect
Unladen weight9,480 kgcorrect
Gross vehicle weight42,000 kgcorrect

Drivetrain and chassis

Wheels6correct
Top speed100 km/hcorrect

Frequently asked questions

How much does the Schmitz SCB*S3B weigh?

The unladen weight is 9,480 kg.

What is the gross vehicle weight of the Schmitz SCB*S3B?

42,000 kg.

Up to what speed is the Schmitz SCB*S3B approved?

Approved up to 100 km/h.

What are the dimensions of the Schmitz SCB*S3B?

14,040 mm × 2,600 mm.

When was the Schmitz SCB*S3B built?

Production years: 2012-2019.

What to check before buying

  • Search the frame and welds at the axle mounts — that is where cracks start.
  • Check the brakes and the last inspection in the papers.
  • Work the gross weight against the towing vehicle before buying.
  • Compare the chassis number with the papers.
  • Look at the floor, cover or body from the inside — rust does not show from outside.

A general list for this type of machine — no substitute for an inspection or an appraiser.
