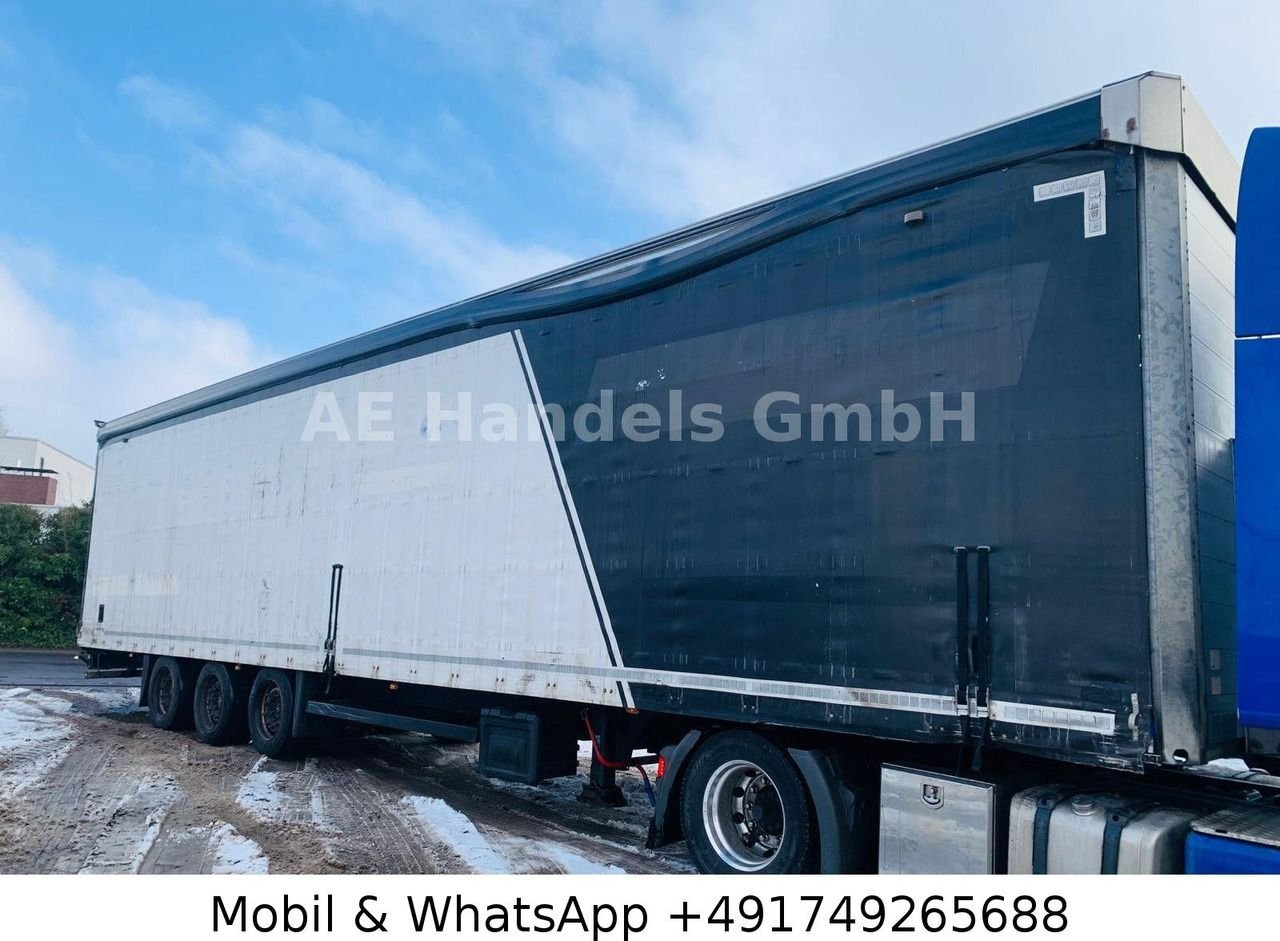

Schmitz S01-SCS 24
Built: 2007-2008 · Series: S01-SCS 24
More machines from model year 2007
Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required
Schmitz S01-SCS 24: EU class O4 trailer with a gross weight of 27,000 kg, a length of 13,890 mm and a width of 2,550 mm, built 2007 to 2008.
With a gross weight of 27,000 kg, the S01-SCS 24 falls into EU trailer class O4, the band of heavy trailers and semi-trailers above 10 tonnes. Vehicles of this size are used in freight traffic between plants, warehouses and transhipment points.
Read on 3 more paragraphs
Built between 2007 and 2008, the model carries a payload of around 21,900 kg against an unladen weight of 5,100 kg. At 13,890 mm long and 2,550 mm wide, the build makes almost full use of the maximum dimensions permitted in Europe, pointing to a classic long semi-trailer or curtainsider body for standard freight.
Class O4 trailers and semi-trailers run on air brakes fed from the towing vehicle's brake line and require a category CE licence to tow. The full use of length and width at a comparatively moderate gross weight points to a volume-oriented vehicle for palletised goods rather than a heavy-load concept.
Buying a used vehicle of this age, it is worth checking the side curtains or body walls for damage where a curtainsider or box body is fitted, and inspecting the air brake system, brake linings and axle suspension for wear. After more than 15 years in service, the chassis and load floor deserve a close look for rust and fatigue cracks, and the landing gear should be tested for smooth, even winding on both sides, with particular care given to the crank gearbox and its mounting bracket.
Sources: SpecCodex-Register: Kennwerte des Modells Schmitz S01-SCS 24
Technical data
Dimensions and weights
| Length | 13,890 mmcorrect |
|---|---|
| Width | 2,550 mmcorrect |
| Unladen weight | 5,100 kgcorrect |
| Gross vehicle weight | 27,000 kgcorrect |
Frequently asked questions
How much does the Schmitz S01-SCS 24 weigh?
The unladen weight is 5,100 kg.
What is the gross vehicle weight of the Schmitz S01-SCS 24?
27,000 kg.
What are the dimensions of the Schmitz S01-SCS 24?
13,890 mm × 2,550 mm.
When was the Schmitz S01-SCS 24 built?
Production years: 2007-2008.
What to check before buying
- Search the frame and welds at the axle mounts — that is where cracks start.
- Check the brakes and the last inspection in the papers.
- Work the gross weight against the towing vehicle before buying.
- Compare the chassis number with the papers.
- Look at the floor, cover or body from the inside — rust does not show from outside.
A general list for this type of machine — no substitute for an inspection or an appraiser.
