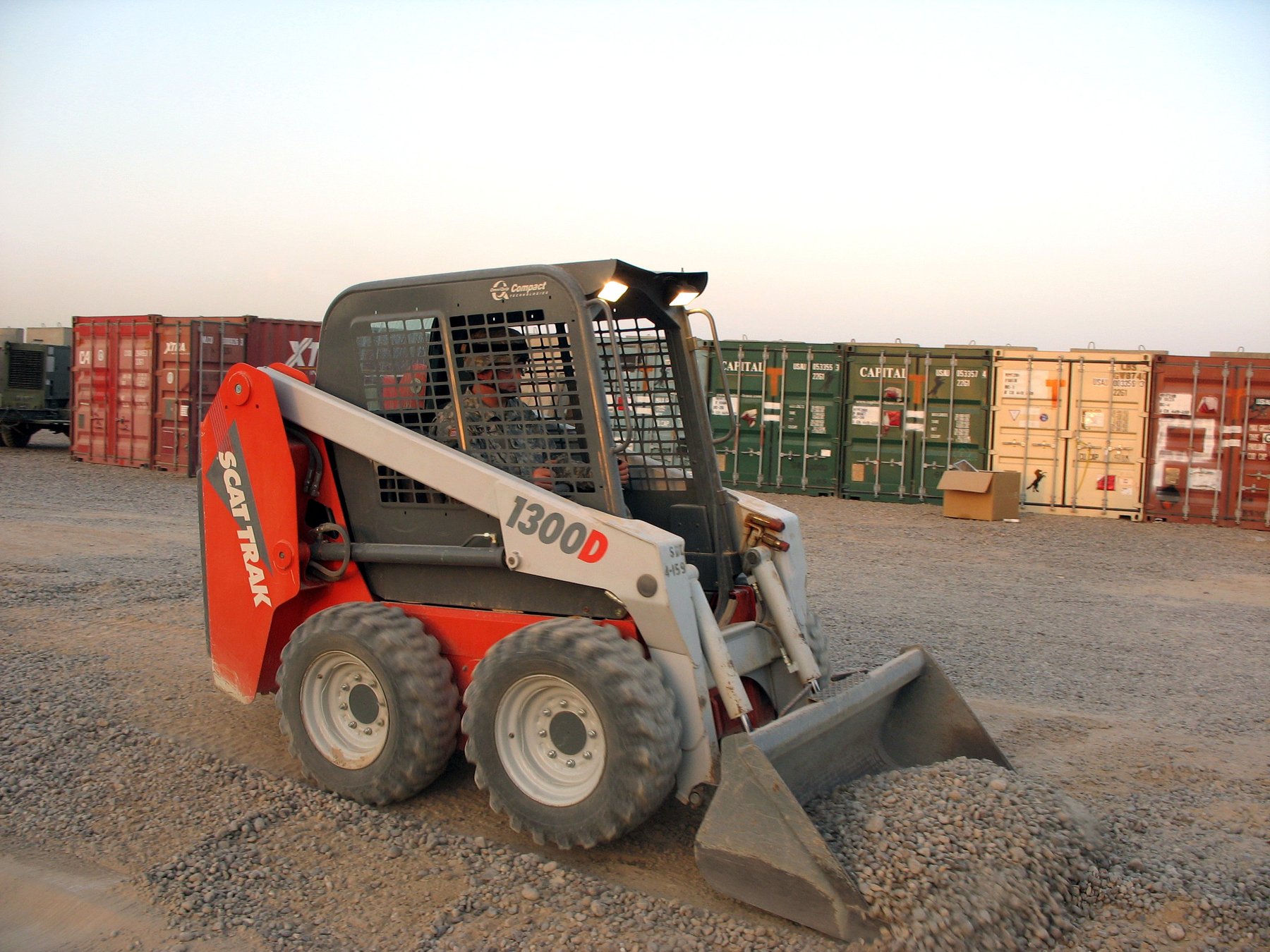

Scat Trak 1300D

Series: Scat Trak Skid Steer Loader

Source: https://commons.wikimedia.org/wiki/File:Scat_Trak_1300D.JPEG

Not the right version? The data comes from vehicle registers holding many near-identical versions side by side. Photograph the data plate — we read make and type from it. Open the scanner e-mail address required

The 1300D from Scat Trak is part of the Scat Trak Skid Steer Loader series. The engine delivers 50.2 hp (36.9 kW), has 4 cylinders, with a displacement of 2,200.8 cm³. Rated speed is 2,800 rpm. The wheelbase measures 929.6 mm. Ground clearance is 193 mm. Top speed is 10.3 km/h. The tank holds 65.9 litres. The pump delivers 62.1 l/min. The hydraulic tank holds 37.9 litres. The electrical system runs on 12 V. The engine fitted is the V2203-E. Tyre size: 10x16,5. The Scat Trak Skid Steer Loader series covers 8 models. Rated output within it ranges from 50.2 to 87.2 hp; the 1300D sits at the bottom of that range with 50.2 hp. Its immediate neighbours are the 1500D above it with 60.8 hp. 8 Scat Trak models are on record. The model is listed under Wheel loaders. 15 verified figures from 1 source are on file.

Technical data

Engine

Engine modelV2203-Ecorrect
Power50.2 hp (36.9 kW)correct
Rated speed2,800 rpmcorrect
Cylinders4correct
Displacement2,200.8 cm³correct

Dimensions and weights

Wheelbase929.6correct
Ground clearance193correct

Drivetrain and chassis

Tyre size10x16.5correct
Top speed10.3 km/hcorrect
System voltage12 Vcorrect

Working data

Pump flow62.1 l/mincorrect
Hydraulic oil capacity37.9 lcorrect
Fuel tank capacity65.9 lcorrect

Other data

Height1,975.1correct

Frequently asked questions

How much power does the Scat Trak 1300D have?

The Scat Trak 1300D delivers 50.2 hp.

What engine does the Scat Trak 1300D have?

4 cylinders, 2,201 cm³ displacement.

How fast does the Scat Trak 1300D go?

Top speed is 10.3 km/h.

What to check before buying

  • Check the hour meter against the service records — a replaced instrument is the most common gap.
  • Compare the data plate and chassis number with the papers.
  • Ask about parts availability for this build year — the running costs hang on it.

A general list for this type of machine — no substitute for an inspection or an appraiser.
